Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3W09941/HS-12COAX CBL MMCX TO TNC |
1,081 |
|
Datasheet |
- | Retail Package | Active | 10-32 to 10-32 | 10-32 Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 10-32 Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | -55°C ~ 165°C | - | - |
|
PE3C4132-24COAX CBL 7/16 DIN TO N-TYPE |
2,944 |
|
Datasheet |
- | Bag | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
FDX12-UB-1-UB-10COAX CBL BNC TO BNC |
3,032 |
|
- |
- | Bag | Active | BNC to BNC | - | - | - | - | - | - | - | - | 394.0" (10.0m) 32.8' | - | - | - | - | - | - | - | - | - | - |
|
|
PE3W03661LF-36COAX CBL SMA TO SMA |
1,043 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Black | - | -65°C ~ 150°C | - | - |
|
|
EXTF-18-SMSM-2.0FCOAX CBL SMA TO SMA |
1,927 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
02Y5720#1000COAX CBL SMA TO SMA |
4,878 |
|
- |
- | Bulk | Discontinued at Digi-Key | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | - | - | 50 Ohms | - | Black | - | - | - | - |
|
095-725-112-120COAX CBL SMPM TO SMPM |
3,644 |
|
Datasheet |
- | Bulk | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | -20°C ~ 75°C | - | - |
|
|
EXTF-18-SMSM-2.5FCOAX CBL SMA TO SMA |
4,755 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 30.00" (762.00mm) | - | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
PE3C5870-60COAX CBL SMA TO QMA |
4,278 |
|
Datasheet |
- | Bag | Active | SMA to QMA | SMA Plug | Male | Free Hanging (In-Line) | - | QMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
NANOBEND KR-6SK PLUG TO SK PLUG |
1,458 |
|
- |
NANOBEND | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
32061SE-29446J-29446P-8CBL ASSY - - 8''(203.20MM) |
1,759 |
|
Datasheet |
NANOBEND | Bulk | Active | - | - | - | - | - | - | - | - | - | 8.000" (203.20mm) | 1.60mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 110 GHz | Silver | - | -55°C ~ 200°C | - | - |
|
|
GRF1-P-C-04-0300-C1-D-SCOAX CBL MMCXV TO MMCXV |
4,824 |
|
Datasheet |
GRF1-C | Bulk | Active | MMCXV to MMCXV | MMCXV Plug | Male | Free Hanging (In-Line) | - | MMCXV Plug | Male | Free Hanging (In-Line) | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 5.31 GHz | Amber | Panel Screws, Shielded | -40°C ~ 90°C | - | - |
|
|
PE3C1866LF-12Reverse Polarity SMA Plug to Rev |
3,949 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | RP-SMA Plug | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
32061SE-29981M12-29981M12-6COAX CBL SMPM TO SMPM |
2,680 |
|
Datasheet |
NANOBEND | Bulk | Active | SMPM to SMPM | SMPM Jack | Female | - | - | SMPM Jack | Female | - | - | 6.000" (152.40mm) | 1.60mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 110 GHz | Silver | - | -55°C ~ 200°C | - | - |
|
|
EXTF-18-SMSM-3.0FCOAX CBL SMA TO SMA |
3,120 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 125°C | - | - |
|

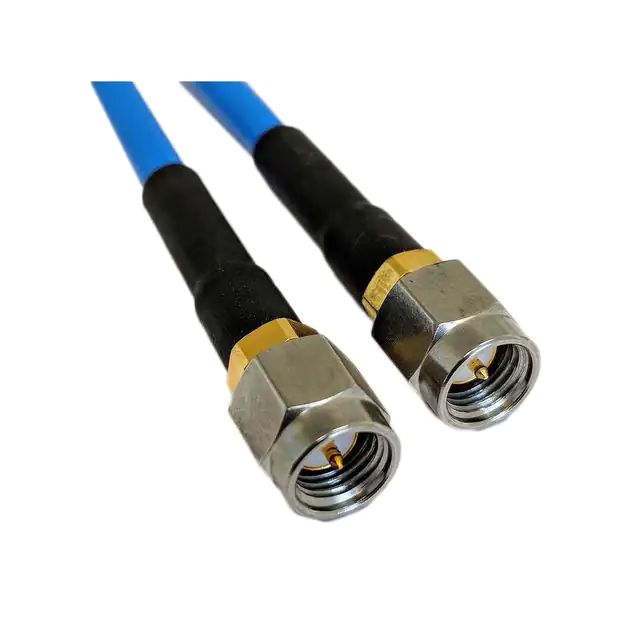

P1CA-SAMSAM-SS141-24-PMCOAX CBL SMA TO SMA |
1,448 |
|
Datasheet |
- | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | - | - | 18 GHz | - | Phase Matched Cable | -40°C ~ 85°C | - | - |
|
|
32061SE-29446P-29446P-6COAX CBL SMA TO SMA |
1,194 |
|
Datasheet |
NANOBEND | Bulk | Active | - | - | - | - | - | - | - | - | - | 6.000" (152.40mm) | 1.60mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 110 GHz | Silver | - | -55°C ~ 200°C | - | - |
|
|
PE3C1103/HS-24Reverse Polarity SMA Plug Right |
1,170 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | RP-SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
EXTF-18-SMNM-2.0FCOAX CBL SMA TO N-TYPE |
1,477 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
|
SF-SMAN-MM-12LPCOAX CBL SMA TO N-TYPE |
2,016 |
|
Datasheet |
StabilityFlex | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | Color Coded, Flexible, Phase Stable, Shielded | - | - | - |
