Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

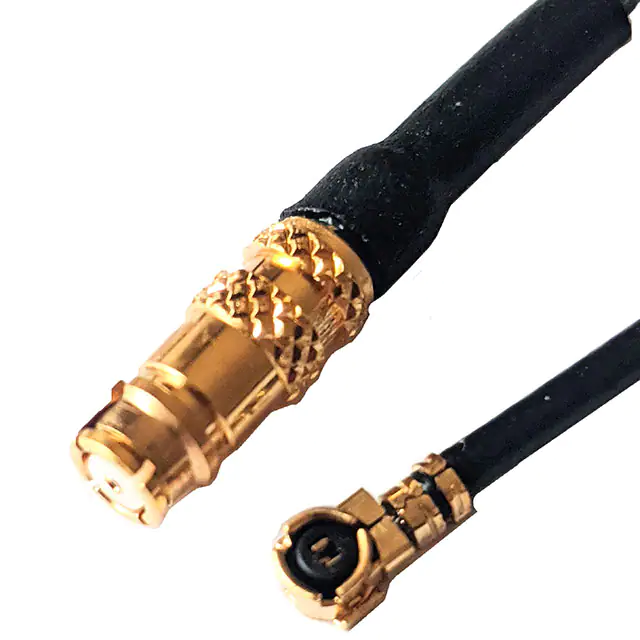

P1CA-SPFUFL-U137-6COAX CBL U.FL TO SMP |
2,372 |
|
Datasheet |
- | Box | Active | U.FL (UMCC) to SMP | SMP Jack | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 1.3mm Flex | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
P1CA-SAMSPF-085CJ-24COAX CBL SMA TO SMP |
2,721 |
|
Datasheet |
- | Box | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Hand Formable .085 | 50 Ohms | - | - | 18 GHz | - | - | -40°C ~ 85°C | - | - |
|
P1CA-STMSTM-ST085-9COAX CBL SMA TO SMA |
2,369 |
|
Datasheet |
P1CA | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | ST085 | - | - | - | 18 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
|
P1CA-STMSTM-ST085-10COAX CBL SMA TO SMA |
3,869 |
|
Datasheet |
P1CA | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 10.000" (254.00mm) | ST085 | - | - | - | 18 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
095-850-265M100COAX CBL BNC TO BNC |
3,177 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
|
PE3C8813/OR-72COAX CBL BNC TO BNC |
1,777 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Orange | - | -20°C ~ 75°C | - | - |
|
|
PE3C8744/BK-12COAX CBL BNC TO HD-BNC |
2,870 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Black | - | -30°C ~ 75°C | - | - |
|
M50-050MCOAX CBL BNC TO BNC |
3,260 |
|
Datasheet |
M50 | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | Screw Locks | BNC Plug | Male | Free Hanging (In-Line) | Screw Locks | 600.0" (15.2m) 50.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | - | - | - |
|
|
PE3C8873/BK-36COAX CBL HD-BNC TO HD-BNC |
1,377 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Black | - | -30°C ~ 75°C | - | - |
|
|
PE39430-12COAX CBL SMA TO SMA |
3,417 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 10 GHz | - | - | -55°C ~ 125°C | - | - |
|
336309-12-0300COAX CBL U.FL AMC TO SMA |
4,276 |
|
Datasheet |
- | Bulk | Not For New Designs | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
PE3C8145-6COAX CBL SMA TO CABLE |
2,426 |
|
Datasheet |
- | Retail Package | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 6.000" (152.40mm) | 0.086" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Black | - | - | - | - |
|

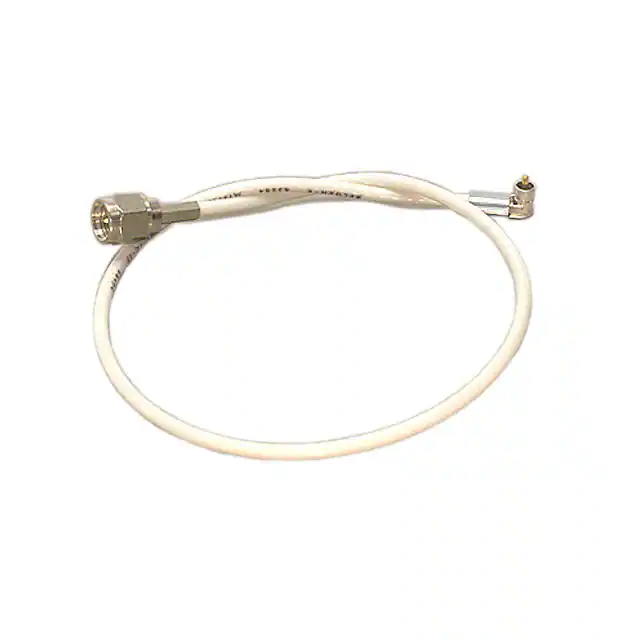

4192-12COAX CBL SMA TO FL |
2,282 |
|
- |
- | Bulk | Active | SMA to FL | SMA Jack | Female | Free Hanging (In-Line) | - | FL Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | - | - | - | - | White | - | - | - | - |
|
|
PT4003NNCOAX CBL N-TYPE TO N-TYPE |
4,519 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 36.00" (914.40mm) | ATX 400 | - | - | - | - | Black | - | - | - | - |
|
|
PE3C8816/GR-36COAX CBL HD-BNC TO HD-BNC |
1,042 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Green | - | -30°C ~ 75°C | - | - |
|
|
PE3C8741/GR-72COAX CBL BNC TO BNC |
2,467 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Green | - | -30°C ~ 75°C | - | - |
|
PE3C8145-9COAX CBL SMA TO TEST POINT |
4,626 |
|
Datasheet |
- | Bag | Active | SMA to Test Point | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 9.000" (228.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Black | - | - | - | - |
|
P1CA-SAMSAM-085CJ-48COAX CBL SMA TO SMA |
3,505 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | 0.085" Flexible Cable | 50 Ohms | - | - | 26.5 GHz | - | - | -85°C ~ 200°C | - | - |
|
|
P1CA-SAMSAM-085CJ-60COAX CBL SMA TO SMA |
2,781 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | 0.085" Flexible Cable | 50 Ohms | - | - | 26.5 GHz | - | - | -85°C ~ 200°C | - | - |
|
P1CA-SAMSAM-141CC-48COAX CBL SMA TO SMA |
3,632 |
|
Datasheet |
- | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | Hand Formable .141 | 50 Ohms | - | - | 26.5 GHz | - | - | -40°C ~ 85°C | - | - |
