Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-900-562-300COAX CBL AMC4 TO MCX |
1,205 |
|
Datasheet |
- | Bag | Active | AMC4 to MCX | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
PE3CA1024-18COAX CBL SMA TO UMCX |
3,525 |
|
Datasheet |
- | Retail Package | Active | SMA to UMCX | SMA Plug | Male | Free Hanging (In-Line) | - | UMCX Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | 1.13mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
P1CA-SAMSAM-RG58-48COAX CBL SMA TO SMA |
1,488 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug | Male | - | - | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|

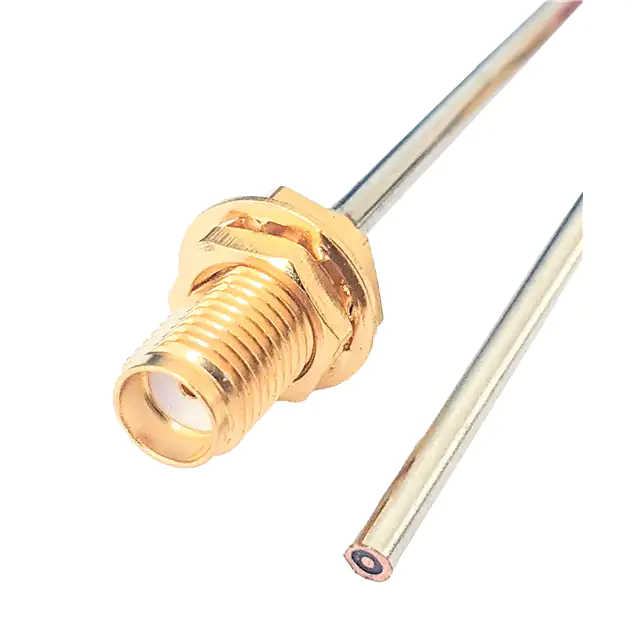

P1CA-SAFPT-034SR-9COAX CBL SMA TO CABLE |
4,749 |
|
Datasheet |
- | Box | Active | SMA to Cable | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 9.000" (228.60mm) | 0.034" Semi-Rigid Cable | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
CBQ1-SAF3GT-SALMGT-36INCOAX CBL SMA TO SMA |
100 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 100 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
SMA-TLCOAX CBL SMA TO CABLE |
2,495 |
|
- |
- | Bulk | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 6.500" (165.10mm) | RG-179 | 75 Ohms | - | 75 Ohms | - | Copper | - | 200°C | - | - |
|
|
CBD-SALRF3GT-SALRMGT-24INCOAX CBL RP-SMA TO RP-SMA |
1,598 |
|
Datasheet |
- | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Jack, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug, Right Angle | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
CBD-SALRMGT-SARF3OGTX9-24INCOAX CBL RP-SMA TO RP-SMA |
100 |
|
Datasheet |
- | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug, Right Angle | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
P1CA-SAMSAMRA-RG58-48COAX CBL SMA TO SMA |
2,841 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug, Right Angle | Male | - | - | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|

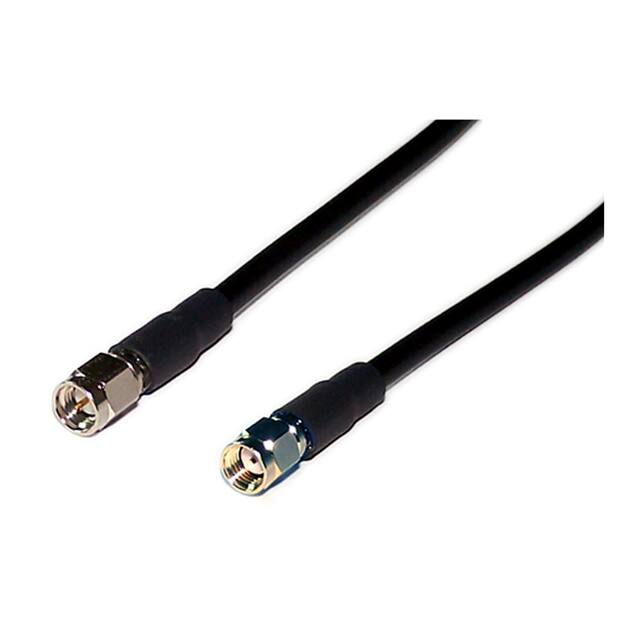

WF6013COAX CBL RP-SMA TO SMA |
1,510 |
|
- |
- | Bulk | Active | RP-SMA to SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | - | - | - | - | - | - | - | - | - | - |
|

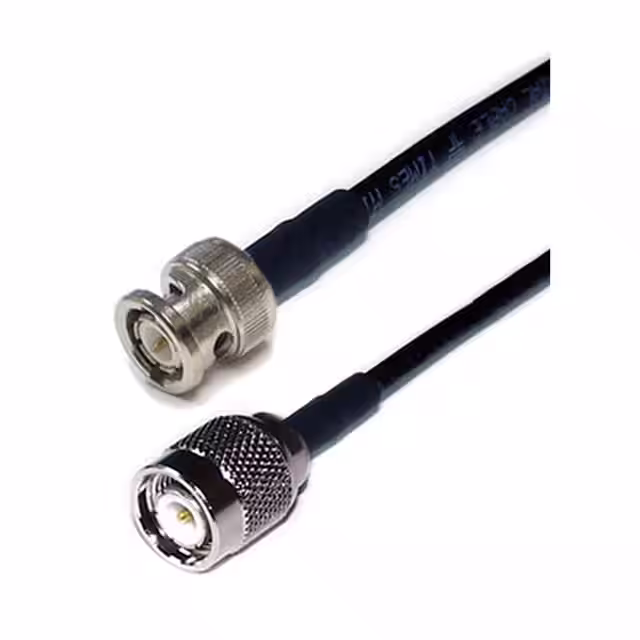

WF6022COAX CBL BNC TO TNC |
2,374 |
|
- |
- | Bulk | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | - | - | - | - | - | - | - | - | - | - |
|
|
PE3CA1026-6COAX CBL SMA TO UMCX |
2,682 |
|
Datasheet |
- | Retail Package | Active | SMA to UMCX | SMA Plug | Male | Free Hanging (In-Line) | - | UMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | -55°C ~ 125°C | - | - |
|
P1CA-SAMSAM-085CJ-24COAX CBL SMA TO SMA |
1,457 |
|
Datasheet |
- | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Hand Formable .085 | 50 Ohms | - | - | 26.5 GHz | - | - | -40°C ~ 85°C | - | - |
|
P1CA-SAMSAM-085CC-24COAX CBL SMA TO SMA |
3,680 |
|
Datasheet |
- | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Hand Formable .085 | 50 Ohms | - | - | 26.5 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
CBQ1-SAF3OGTX15-SALF3GT-24INCOAX CBL SMA TO SMA |
100 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | LMR 100 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
CBQ1-SARF3OGTX9-SARMGT-36INCOAX CBL RP-SMA TO RP-SMA |
100 |
|
Datasheet |
- | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 100 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
CBG-SAF3OGTX15-SALF3GT-36INCOAX CBL SMA TO SMA |
100 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00" (914.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
P1CA-BNMBNM-085CJ-24COAX CBL BNC TO BNC |
1,678 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.086" Flexible Cable | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Blue | - | -40°C ~ 125°C | - | - |
|

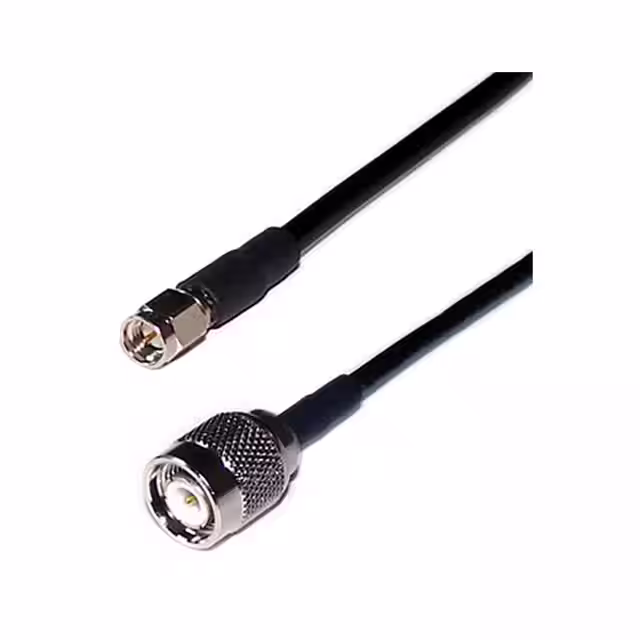

WF6017COAX CBL TNC TO SMA |
1,027 |
|
- |
- | Bulk | Active | TNC to SMA | TNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | - | - | - | - | - | - | - | - | - | - |
|

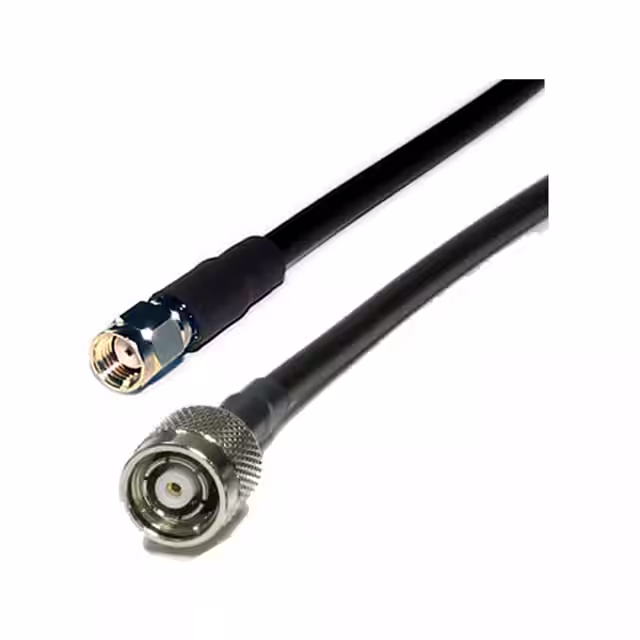

WF6020COAX CBL SMA TO RP-TNC |
2,279 |
|
- |
- | Bulk | Active | SMA to RP-TNC | SMA Jack | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | - | - | - | - | - | - | - | - | - | - |
