Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
301-RG59-301/36-10PKCOAX CBL BNC TO BNC |
1,872 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | - | - | BNC Plug | Male | - | - | 36.00" (914.40mm) | RG-59 | - | - | - | - | Black | 10 pcs per pkg | - | - | - |
|
1026-60COAX CBL BNC TO BNC |
3,413 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
P1-SMAP/SMAPRA-085CJ-24COAX CBL SMA TO SMA |
3,855 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.085" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | - | -85°C ~ 200°C | - | - |
|
0897616802COAX CBL SMA TO MMCX |
4,674 |
|
Datasheet |
89761 | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
73078-UU-48COAX CBL SMA TO MMCX |
3,074 |
|
Datasheet |
- | Bag | Obsolete | SMA to MMCX | SMA Jack | Female | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-178B | 50 Ohms | - | 50 Ohms | 2 GHz | Copper | Shielded | -55°C ~ 155°C | - | - |
|
|
PT16400COAX CBL SMA TO N-TYPE |
3,451 |
|
- |
- | Bulk | Obsolete | SMA to N-Type | SMA Plug | Male | - | - | N-Type Plug | Male | - | - | - | RG-58A | - | - | - | - | - | - | - | - | - |
|
P1CA-SAFPT-034SR-4-12GCOAX CBL SMA TO CABLE |
1,615 |
|
Datasheet |
- | Box | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 4.000" (101.60mm) | 0.034" Semi-Rigid Cable | 50 Ohms | - | - | - | - | - | -40°C ~ 85°C | - | - |
|
|
CBQ1-SAF3OGTX15-SALMGT-36INCOAX CBL SMA TO SMA |
100 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 100 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
1024-18COAX CBL BNC TO BNC |
4,448 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CBQ1-SALRMGT-SARF3OGTX9-36INCOAX CBL RP-SMA TO RP-SMA |
100 |
|
Datasheet |
- | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug, Right Angle | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 100 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
095-850-289-100COAX CBL RP-TNC TO AMC4 |
4,993 |
|
Datasheet |
- | Bag | Active | RP-TNC to AMC4 | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
1064523-1COAX CBL SSMT TO SSMT |
3,492 |
|
Datasheet |
- | Box | Active | SSMT to SSMT | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | 2.953" (75.00mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | - |
|
|
095-850-289-150COAX CBL RP-TNC TO AMC4 |
2,262 |
|
Datasheet |
- | Bag | Active | RP-TNC to AMC4 | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
095-850-286-300COAX CBL AMC4 TO TNC |
4,061 |
|
Datasheet |
- | Bag | Active | AMC4 to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|

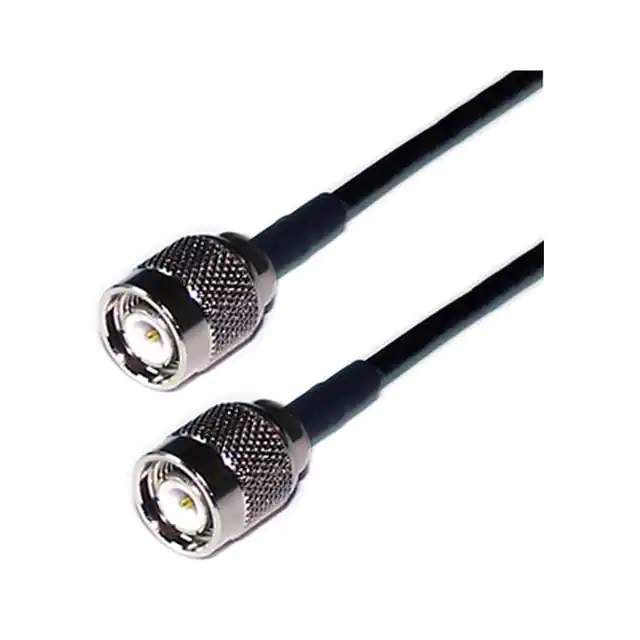

WF6021COAX CBL TNC TO TNC |
2,807 |
|
- |
- | Bulk | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | - | - | - | - | - | - | - | - | - | - |
|
|
095-850-289-200COAX CBL RP-TNC TO AMC4 |
2,694 |
|
Datasheet |
- | Bag | Active | RP-TNC to AMC4 | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
1024-60COAX CBL BNC TO BNC |
2,939 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
P1CA-SAMSAM-085CC-36COAX CBL SMA TO SMA |
4,217 |
|
Datasheet |
- | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Hand Formable .085 | 50 Ohms | - | - | 26.5 GHz | - | - | -40°C ~ 85°C | - | - |
|
1025-18COAX CBL BNC TO BNC |
2,999 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
1025-12COAX CBL BNC TO BNC |
4,651 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
