Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3CA1023-3COAX CBL SMA TO UMCX |
3,443 |
|
Datasheet |
- | Retail Package | Active | SMA to UMCX | SMA Plug | Male | Free Hanging (In-Line) | - | UMCX Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
P1CA-SAMSAM-RD316-18COAX CBL SMA TO SMA |
2,522 |
|
Datasheet |
- | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | - | - | 6 GHz | Copper | - | -55°C ~ 200°C | - | - |
|
|
P1CA-SAMSAM-RG58-9COAX CBL SMA TO SMA |
3,346 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug | Male | - | - | 9.000" (228.60mm) | RG-58 | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
P1CA-SAMSAM-RG316-24COAX CBL SMA TO SMA |
4,587 |
|
Datasheet |
- | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
P1CA-SAMSAM-RG58-12COAX CBL SMA TO SMA |
4,740 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug | Male | - | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
636210070200COAX CBL U.FL TO RP-SMA |
1,100 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
636210080200COAX CBL U.FL TO RP-SMA |
4,511 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
P1CA-SAMSAM-085CJ-6COAX CBL SMA TO SMA |
100 |
|
Datasheet |
- | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .085 | 50 Ohms | - | - | 26.5 GHz | - | - | -40°C ~ 85°C | - | - |
|
P1CA-SAMSAM-085CC-12COAX CBL SMA TO SMA |
1,493 |
|
Datasheet |
- | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Hand Formable .085 | 50 Ohms | - | - | 26.5 GHz | - | - | -40°C ~ 85°C | - | - |
|

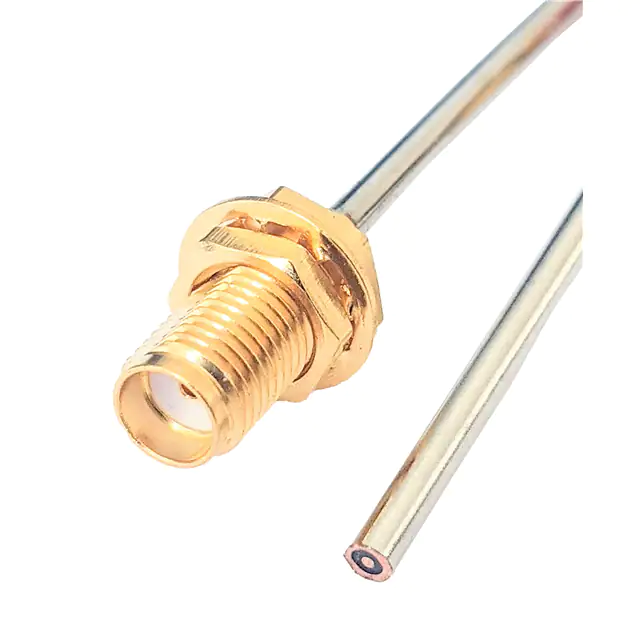

P1CA-SAFPT-085SR-6COAX CBL SMA TO CABLE |
2,616 |
|
Datasheet |
- | Box | Active | SMA to Cable | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 6.000" (152.40mm) | 0.085" Semi-Rigid Cable | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
P1CA-SAMSAM-141CC-6COAX CBL SMA TO SMA |
1,460 |
|
Datasheet |
- | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .141 | 50 Ohms | - | - | 26.5 GHz | - | - | -40°C ~ 85°C | - | - |
|
P1CA-SAMSAM-141CJ-12COAX CBL SMA TO SMA |
3,080 |
|
Datasheet |
- | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .141 | 50 Ohms | - | - | 26.5 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
P1CA-SAMSAM-141CJ-6COAX CBL SMA TO SMA |
2,010 |
|
Datasheet |
- | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .141 | 50 Ohms | - | - | 26.5 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
P1CA-SAFPT-085SR-3COAX CBL SMA TO CABLE |
4,372 |
|
Datasheet |
- | Box | Active | SMA to Cable | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 3.000" (76.20mm) | 0.085" Semi-Rigid Cable | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
P1CA-SAFPT-085SR-2COAX CBL SMA TO CABLE |
3,089 |
|
Datasheet |
- | Box | Active | SMA to Cable | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 2.000" (50.80mm) | 0.085" Semi-Rigid Cable | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
P1CA-SAMSAM-141CJ-3COAX CBL SMA TO SMA |
1,498 |
|
Datasheet |
- | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | Hand Formable .141 | 50 Ohms | - | - | 26.5 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
P1CA-SAMSAM-085CJ-12COAX CBL SMA TO SMA |
2,747 |
|
Datasheet |
- | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Hand Formable .085 | 50 Ohms | - | - | 26.5 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
CBG-2SAF3GT-24INCOAX CBL SMA TO SMA |
100 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
636210040250COAX CBL U.FL TO RP-SMA |
1,618 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
636210050250COAX CBL U.FL TO RP-SMA |
4,153 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
