Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1CA-SAFRPUFP-U137-9.8COAX CBL U.FL TO RP-SMA |
3,335 |
|
Datasheet |
- | Box | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.3mm Flex | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
P1CA-SAFRPUFP-U137-6.5COAX CBL U.FL TO RP-SMA |
3,944 |
|
Datasheet |
- | Box | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug | Male | Free Hanging (In-Line) | - | 6.496" (165.00mm) | 1.3mm Flex | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
PE3CA1029-3COAX CBL SMA TO WMCX |
4,780 |
|
Datasheet |
- | Retail Package | Active | SMA to WMCX | SMA Plug | Male | Free Hanging (In-Line) | - | WMCX Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
PE39462-24COAX CBL SMA TO N-TYPE |
2,073 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 10 GHz | - | - | - | - | - |
|
|
321990895COAX CBL N-TYPE TO N-TYPE |
4,891 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | - | - | - | 50 Ohms | 6 GHz | Black | - | -30°C ~ 65°C | - | - |
|
|
10BASE2-1.5BWCOAX CBL BNC TO BNC |
2,694 |
|
Datasheet |
- | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
M60-012FCOAX CBL F-TYPE TO F-TYPE |
2,318 |
|
Datasheet |
- | Bag | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | Screw Locks | F-Type Plug | Male | Free Hanging (In-Line) | Screw Locks | 144.0" (3.7m) 12.0' | RG-6 | 75 Ohms | - | 75 Ohms | - | Black | Shielded | - | - | - |
|
|
P1CA-SAMUFL-RG178-4COAX CBL U.FL TO SMA |
100 |
|
Datasheet |
P1CA | Bulk | Active | U.FL (UMCC) to SMA | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 4.000" (101.60mm) | RG-178 | - | - | - | 6 GHz | Black | - | - | - | - |
|
|
P1CA-MMPUFP-U081-1.5COAX CBL U.FL TO MMCX |
3,118 |
|
Datasheet |
P1CA | Bulk | Active | U.FL (UMCC) to MMCX | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 1.50" (38.10mm) | 0.8mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | - | - | - |
|
P1CA-SAFBUFP-U132-3COAX CBL U.FL TO SMA |
4,502 |
|
Datasheet |
- | Box | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 1.3mm Flex | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
P1CA-SAFBUFP-U132-9COAX CBL U.FL TO SMA |
2,130 |
|
Datasheet |
- | Box | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | 1.3mm Flex | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
P1CA-MMPUFP-U081-2.5COAX CBL U.FL TO MMCX |
3,906 |
|
Datasheet |
P1CA | Bulk | Active | U.FL (UMCC) to MMCX | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 2.500" (63.50mm) | 0.81mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | - | - | - |
|
|
P1CA-SAFRPBUFP-U132-6COAX CBL U.FL TO SMA |
4,008 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 1.30mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | - | - | - |
|
|
CX-SAB0XXXXS0013COAX CBL SMA JACK TO CABLE |
3,196 |
|
Datasheet |
CX | Bag | Active | SMA to Cable | SMA Jack | Female | Panel Mount | - | Cable (Round) | - | - | - | 5.118" (130.00mm) | 0.047" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 7.2 GHz | Silver | - | -40°C ~ 85°C | - | - |
|

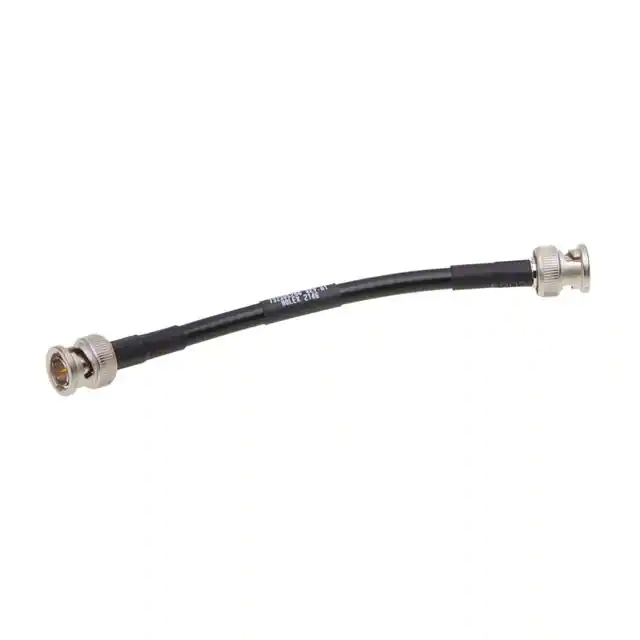

0732305286COAX CBL BNC TO BNC |
1,208 |
|
Datasheet |
73230 | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-59 | 75 Ohms | - | - | - | - | - | - | - | - |
|
636210080150COAX CBL U.FL TO RP-SMA |
2,936 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
636210070250COAX CBL U.FL TO RP-SMA |
1,961 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
RF174-03SP1-04BJ3-0200COAX CBL BNC TO MMCX |
3,717 |
|
Datasheet |
RF174 | Bulk | Active | BNC to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Panel Mount | Bulkhead - Rear Side Nut | - | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
|
CBG-2SARF3GT-24INCOAX CBL RP-SMA TO RP-SMA |
100 |
|
Datasheet |
- | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
636210050200COAX CBL U.FL TO RP-SMA |
3,996 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
