Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WFL2-2LPHF6-04N1TV-A-200COAX CBL W.FL2 TO W.FL2 |
100 |
|
Datasheet |
W.FL2 | Bag | Last Time Buy | W.FL2 to W.FL2 | W.FL2 Plug, Right Angle | Female | Free Hanging (In-Line) | - | W.FL2 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | White | - | -40°C ~ 90°C | - | - |
|
U.FLP-FAKRACP-88100COAX CBL U.FL TO FAKRA SMB |
3,627 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to Fakra SMB | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Plug | Male | Panel Mount | Bulkhead - Rear Side Nut | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 4 GHz | Black | - | -40°C ~ 85°C | - | - |
|
SMAIPEX1859001COAX CBL MHF1 TO SMA |
2,376 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.283" (185.00mm) | 1.13mm OD Coaxial Cable | - | - | - | - | - | - | - | - | - |
|
336314-13-0050COAX CBL U.FL AMC TO RP-SMA |
2,087 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
U.FLP-FAKRADP-88150COAX CBL U.FL TO FAKRA SMB |
2,097 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to Fakra SMB | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Plug | Male | Panel Mount | Bulkhead - Rear Side Nut | 5.906" (150.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 4 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
3.31.101.0074SMASMA.120SMA MALE+SMA FEMALE+RG174 120MM |
3,170 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MCXMCX779004COAX CBL MCX TO MCX |
4,520 |
|
Datasheet |
- | Bag | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-178 | 50 Ohms | - | - | - | - | - | - | - | - |
|
|
SMAMCX2009007COAX CBL MCX TO SMA |
4,920 |
|
Datasheet |
- | Bag | Active | MCX to SMA | MCX Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 7.874" (200.00mm) | RG-178 | 50 Ohms | - | - | - | - | - | - | - | - |
|
|
CBD-SAFGT-SSBMGT-4.5INCOAX CBL SMA TO SMB MINI |
4,728 |
|
Datasheet |
- | Bulk | Active | SMA to SMB Mini | SMA Jack | Female | Free Hanging (In-Line) | - | SMB Mini Plug | Male | Free Hanging (In-Line) | - | 4.500" (114.30mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
CBE-SAF3OGT-SALMGT-5INCOAX CBL SMA TO SMA |
4,630 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.000" (127.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|

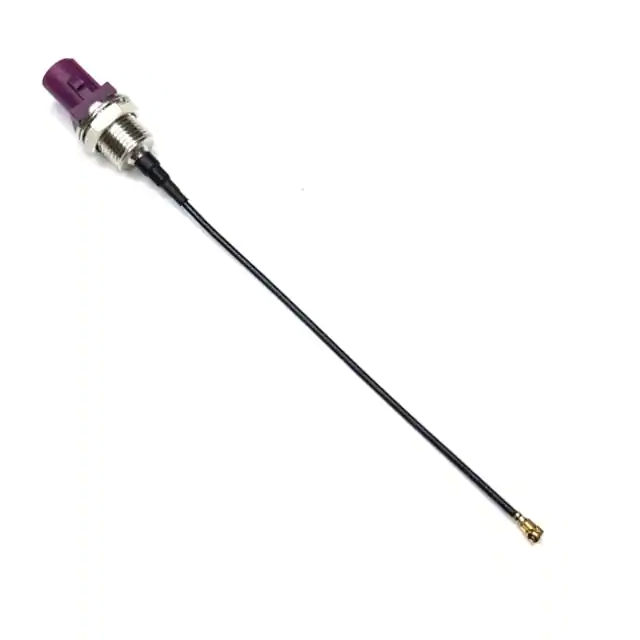

U.FLP-FAKRADP-88100COAX CBL U.FL TO FAKRA SMB |
4,230 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to Fakra SMB | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Plug | Male | Panel Mount | Bulkhead - Rear Side Nut | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 4 GHz | Black | - | -40°C ~ 85°C | - | - |
|
CSI-SGFE-300-UFFRCOAX CBL U.FL TO SMA |
2,134 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Rear Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | - |
|

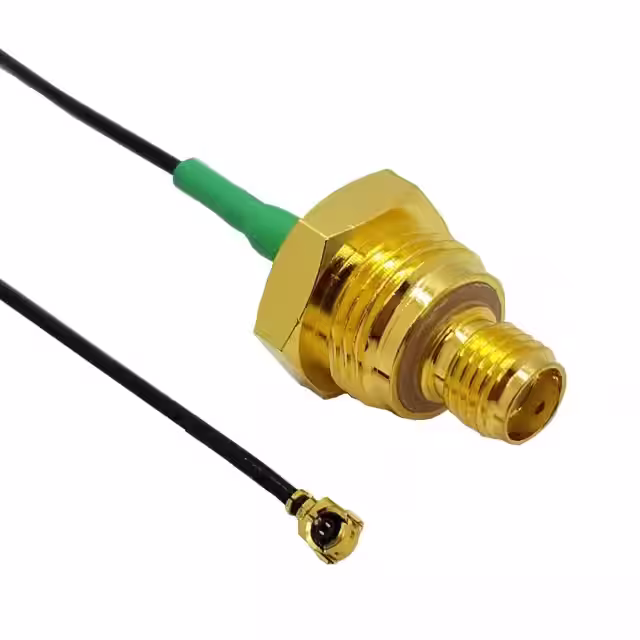

CB1.13-IPX-SAF3REGTX1-8INCOAX CBL MHF1 TO SMA |
100 |
|
Datasheet |
MHF® I | Bulk | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 8.000" (203.20mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded, Isolated | -40°C ~ 90°C | - | - |
|
336314-14-0050COAX CBL U.FL AMC TO RP-SMA |
3,750 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
636207070200COAX CBL U.FL TO SMA |
1,696 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.32mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
BT974099CBL ASSY JACK 18" |
2,291 |
|
Datasheet |
- | Tape & Box (TB) | Active | - | - | - | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | - | - | - | - | Black | Low Loss Shielded | - | - | - |
|
|
636209080300COAX CBL U.FL TO RP-SMA |
2,751 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.32mm OD Coaxial Cable | - | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
M50-006MCOAX CBL BNC TO BNC |
2,579 |
|
Datasheet |
M50 | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | Screw Locks | BNC Plug | Male | Free Hanging (In-Line) | Screw Locks | 72.0" (1.8m) 6.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | - | - | - |
|
M60-003FCOAX CBL F-TYPE TO F-TYPE |
1,199 |
|
Datasheet |
- | Bag | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | Screw Locks | F-Type Plug | Male | Free Hanging (In-Line) | Screw Locks | 36.00" (914.40mm) | RG-6 | 75 Ohms | - | 75 Ohms | - | Black | Shielded | - | - | - |
|
P1CA-SAFRPUFP-U137-4.1COAX CBL U.FL TO RP-SMA |
100 |
|
- |
- | Box | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug | Male | Free Hanging (In-Line) | - | 4.134" (105.00mm) | 1.3mm Flex | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
