Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RF174-01SP1-04SP3-0915COAX CBL BNC TO SMA |
2,121 |
|
Datasheet |
RF174 | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.024" (915.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|

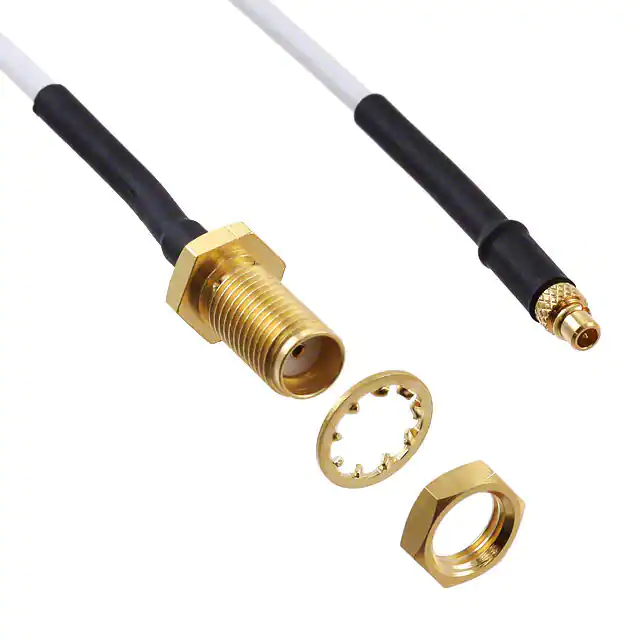

415-0070-018COAX CBL SMA TO MMCX |
4,846 |
|
Datasheet |
- | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
|
RF174-01RP1-01SP1-0152COAX CBL SMA TO SMA |
3,698 |
|
Datasheet |
RF174 | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
095-820-124-30ZCOAX CBL AMC4 TO FAKRA SMB |
3,676 |
|
Datasheet |
- | Bag | Active | AMC4 to Fakra SMB | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Locking | - | - | - |
|
|
RF316-03RP1-05BJ3-0152COAX CBL MMCX TO TNC |
2,796 |
|
Datasheet |
RF316 | Bag | Active | MMCX to TNC | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 5.984" (152.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
|
RF174-01BJ1-01SB1-0305COAX CBL SMA TO SMA |
2,201 |
|
Datasheet |
RF174 | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.01" (305.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
|
RF174-01RP1-05BJ3-0152COAX CBL SMA TO TNC |
3,574 |
|
Datasheet |
RF174 | Bag | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 5.984" (152.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
|
RF316-01BJ1-01SB1-0305COAX CBL SMA TO SMA |
4,196 |
|
Datasheet |
RF316 | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.01" (305.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
095-902-573-250COAX CBL U.FL AMC TO RP-SMA |
4,376 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | - | - | - | - | - |
|
|
095-902-573-300COAX CBL U.FL AMC TO RP-SMA |
4,907 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | - | - | - | - | - |
|
|
RF174-04SP3-07RP1-0610COAX CBL BNC TO SMB |
2,269 |
|
Datasheet |
RF174 | Bag | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.02" (610.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
095-850-265M025COAX CBL BNC TO BNC |
2,567 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
095-902-568-150COAX CBL U.FL AMC TO SMA |
3,622 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
095-850-288-300COAX CBL RP-TNC TO AMC4 |
1,170 |
|
Datasheet |
- | Bag | Active | RP-TNC to AMC4 | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
0732309361COAX CBL SMA TO SMA |
4,324 |
|
Datasheet |
73230 | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | Hand Formable .141 | - | - | 50 Ohms | - | Silver | - | - | - | - |
|
095-902-463-005COAX CBL SMA TO CABLE |
4,818 |
|
Datasheet |
- | Bulk | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 5.000" (127.00mm) | UT-085C | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -20°C ~ 75°C | - | - |
|
|
RF316-04SP3-07SP1-0610COAX CBL BNC TO SMB |
2,842 |
|
Datasheet |
RF316 | Bag | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Male | Free Hanging (In-Line) | - | 24.02" (610.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
|
RF316-01BJ1-01RP1-0152COAX CBL SMA TO SMA |
4,265 |
|
Datasheet |
RF316 | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
135103-04-48.00COAX CBL SMA TO SMA |
2,914 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
|
RF316-01BJ1-07RP1-0305COAX CBL SMA TO SMB |
2,672 |
|
Datasheet |
RF316 | Bag | Active | SMA to SMB | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.01" (305.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
