Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-287-200COAX CBL AMC4 TO TNC |
3,389 |
|
Datasheet |
- | Bag | Active | AMC4 to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|

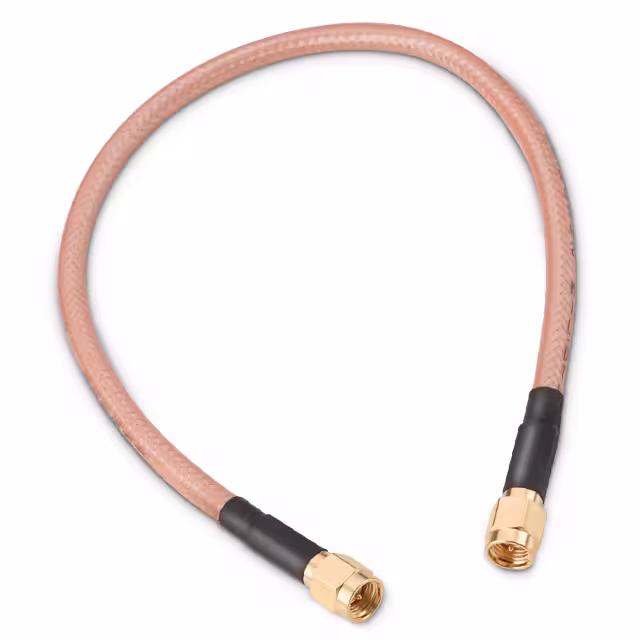

65503503515302COAX CBL SMA TO SMA |
1,753 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
095-900-560-300COAX CBL U.FL AMC TO MCX |
1,985 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to MCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
RF174-01PN1-01RP1-0152COAX CBL SMA TO SMA |
1,576 |
|
Datasheet |
RF174 | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
|
RF316-01PN1-01RP1-0152COAX CBL SMA TO SMA |
3,314 |
|
Datasheet |
RF316 | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
65503503230506COAX CBL SMA TO SMA |
1,843 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
|
RF174-01SR1-03RP1-0152COAX CBL MMCX TO RP-SMA |
1,902 |
|
Datasheet |
RF174 | Bag | Active | MMCX to RP-SMA | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 5.984" (152.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
0732309332COAX CBL SMA TO SMA |
2,875 |
|
Datasheet |
73230 | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 11.811" (300.00mm) | Hand Formable .141 | - | - | 50 Ohms | - | Silver | - | - | - | - |
|
095-850-283-300COAX CBL U.FL AMC TO TNC |
1,648 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 11.811" (300.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
095-900-563-100COAX CBL AMC4 TO MMCX |
4,713 |
|
Datasheet |
- | Bag | Active | AMC4 to MMCX | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 9 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
095-850-287-300COAX CBL AMC4 TO TNC |
1,837 |
|
Datasheet |
- | Bag | Active | AMC4 to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
RF174-01RP1-01SP1-0305COAX CBL SMA TO SMA |
2,303 |
|
Datasheet |
RF174 | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.01" (305.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
|
RF316-03RP1-05BJ3-0305COAX CBL MMCX TO TNC |
4,650 |
|
Datasheet |
RF316 | Bag | Active | MMCX to TNC | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.01" (305.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
|
RF316-05BJ3-03RP1-0305COAX CBL MMCX TO TNC |
3,855 |
|
Datasheet |
RF316 | Bag | Active | MMCX to TNC | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.01" (305.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
135101-04-M0.75COAX CBL SMA TO SMA |
2,437 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
|
RF316-01BJ1-03SP1-0305COAX CBL MMCX TO SMA |
3,667 |
|
Datasheet |
RF316 | Bag | Active | MMCX to SMA | MMCX Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.01" (305.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
415-0203-060COAX CBL SMA TO MMCX |
4,976 |
|
Datasheet |
- | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | - | - | - |
|

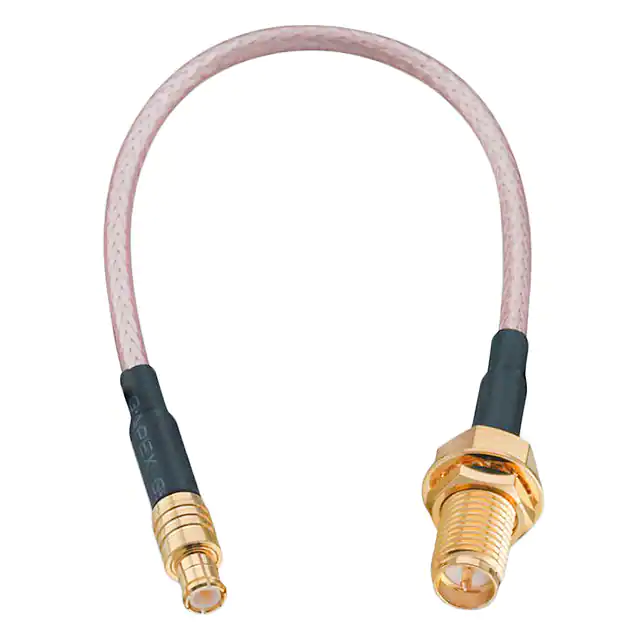

65530206515305COAX CBL RP-SMA TO MCX |
3,473 |
|
Datasheet |
WR-CXASY | Bag | Active | RP-SMA to MCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -55°C ~ 155°C | - | - |
|
|
415-0201-MM100COAX CBL RP-SMA TO RP-SMA |
2,824 |
|
Datasheet |
- | Bag | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | Shielded | - | - | - |
|
095-902-574-050COAX CBL U.FL AMC TO RP-SMA |
2,046 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
