Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
904824CABLE GLAND M20 POLYAMIDE |
1,979 |
|
Datasheet |
Cable Gland | - | - | M20x1.5 | 0.512" (13.00mm) | - | - | Polyamide (PA6), Nylon 6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|

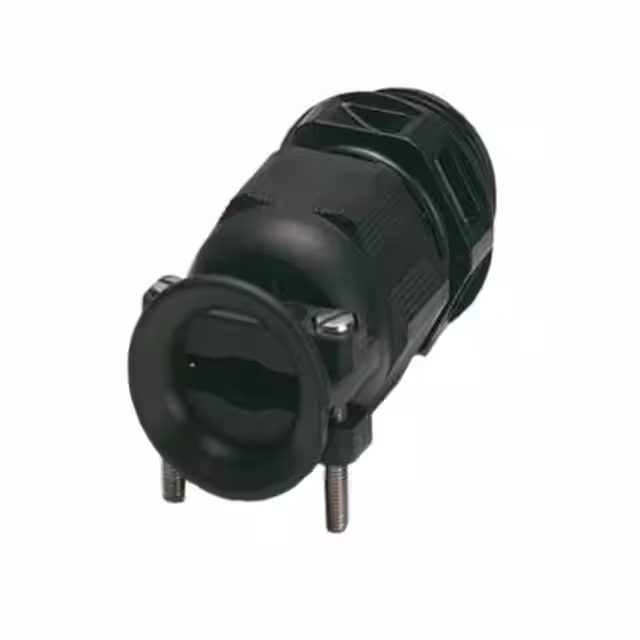

1415191CABLE GLAND 13-21MM M32 POLYAMID |
4,021 |
|
Datasheet |
Cable Gland | 0.512" (13.00mm) | 0.827" (21.00mm) | M32 | 0.472" (12.00mm) | - | - | Polyamide (PA), Nylon | Seal | Black | IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
22446.6PG29 BRASS ECONOMY BNP |
1,165 |
|
- |
- | - | - | PG29 | - | - | - | Brass, Nickel Plated | - | - | - | - | |
|
|
20859.4CABLE GLAND 6.6-9.4MM 3/8"NPT |
4,764 |
|
- |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | 3/8" NPT | 0.510" (12.95mm) | - | 0.675" (17.2mm) | Polyvinylidene Fluoride (PVDF) | - | Opaque | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
20858.4CABLE GLAND 4.06-6.6MM 3/8"NPT |
3,325 |
|
- |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | 3/8" NPT | 0.510" (12.95mm) | - | 0.675" (17.2mm) | Polyvinylidene Fluoride (PVDF) | - | Opaque | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
98002.6CABLE GLAND 2.03-6.1MM M16 BRASS |
1,332 |
|
- |
Cable Gland | 0.080" (2.03mm) | 0.240" (6.10mm) | M16x1.5 | 0.200" (5.08mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | - | |
|
|
22746.1CABLE GLND RA 20.07-27.94MM PG29 |
3,687 |
|
- |
Cable Gland - 90° | 0.790" (20.07mm) | 1.100" (27.94mm) | PG29 | 0.430" (10.92mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | - | |
|
|
98276.6CABLE GLAND 5.08-8.89MM PG13.5 |
1,438 |
|
- |
Cable Gland | 0.200" (5.08mm) | 0.350" (8.89mm) | PG13.5 | 0.260" (6.60mm) | - | 0.810" (20.6mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | - | |
|
|
20433.6CABLE GLAND 6.6-9.4MM PG13.5 |
3,131 |
|
- |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | PG13.5 | 0.260" (6.60mm) | - | 0.830" (21.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
20434.6CABLE GLAND 7.11-10.41MM PG13.5 |
2,341 |
|
- |
Cable Gland | 0.280" (7.11mm) | 0.410" (10.41mm) | PG13.5 | 0.260" (6.60mm) | - | 0.830" (21.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
20435.6CABLE GLAND 8.89-12.95MM PG13.5 |
1,312 |
|
- |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | PG13.5 | 0.260" (6.60mm) | - | 0.830" (21.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
15152Z13PG11/PG13.5 NPB, INCREASED |
2,539 |
|
- |
- | - | - | - | - | - | - | Brass, Nickel Plated | - | Silver | - | - | |
|
|
182DP9CABLE GLAND PG13.5 BRASS |
3,758 |
|
- |
Cable Gland | - | - | PG13.5 | - | - | - | Brass, Nickel Plated | - | Silver | - | - | |
|
|
95390.6CABLE GLND 2.29-4.06MM M12 BRASS |
2,174 |
|
- |
Cable Gland | 0.090" (2.29mm) | 0.160" (4.06mm) | M12x1.5 | - | - | 0.470" (11.9mm) | Brass, Nickel Plated | Sealing Ring, Strain Relief | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
95391.6CABLE GLND 3.56-5.08MM M12 BRASS |
2,596 |
|
- |
Cable Gland | 0.140" (3.56mm) | 0.200" (5.08mm) | M12x1.5 | - | - | 0.470" (11.9mm) | Brass, Nickel Plated | Sealing Ring, Strain Relief | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
20469.6CABLE GLAND 4.06-6.6MM PG7 BRASS |
1,459 |
|
- |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | PG7 | 0.200" (5.08mm) | - | 0.490" (12.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
4220353CABLE GLAND 3-8.5MM PG11 BRASS |
2,509 |
|
Datasheet |
Cable Gland | 0.118" (3.00mm) | 0.335" (8.50mm) | PG11 | 0.236" (6.00mm) | - | 0.732" (18.6mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
|
93942CABLE GLAND 19-28MM M40 POLYAMID |
3,169 |
|
Datasheet |
Cable Gland | 0.748" (19.00mm) | 1.102" (28.00mm) | M40x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | - | Black | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
|
5315814CABLE GLAND MULT PG9 POLYAMIDE |
3,319 |
|
- |
Cable Gland - Multiple Openings | - | - | PG9 | 0.315" (8.00mm) | - | 0.157" (4.0mm) | Polyamide (PA6), Nylon 6 | - | Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 120°C | |
|
FNB-3/8CABLE GLAND 5-10MM 3/8" NPT |
4,985 |
|
Datasheet |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | 3/8" NPT | 0.591" (15.00mm) | - | 0.675" (17.2mm) | Polyamide (PA6), Nylon 6 | - | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C |
