Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4221079CABLE GLAND 3-6MM PG7 BRASS |
3,787 |
|
- |
Cable Gland | 0.118" (3.00mm) | 0.236" (6.00mm) | PG7 | 0.197" (5.00mm) | - | 0.492" (12.5mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 120°C | |
|
|
5315668CABLE GLAND MULT PG16 POLYAMIDE |
1,271 |
|
- |
Cable Gland - Multiple Openings | - | - | PG16 | 0.394" (10.00mm) | - | 0.157" (4.0mm) | Polyamide (PA6), Nylon 6 | - | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 120°C | |
|
|
25401.6/15CABLE GLAND 4.06-6.6MM M12 BRASS |
1,994 |
|
- |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | M12x1.5 | 0.590" (14.99mm) | - | 0.470" (11.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
182P7CABLE GLAND PG13.5 BRASS |
1,157 |
|
- |
Cable Gland | - | - | PG13.5 | - | - | - | Brass, Nickel Plated | - | Silver | - | - | |
|
|
182P8CABLE GLAND PG13.5 BRASS |
2,802 |
|
- |
Cable Gland | - | - | PG13.5 | - | - | - | Brass, Nickel Plated | - | Silver | - | - | |
|
|
182P9CABLE GLAND PG13.5 BRASS |
1,541 |
|
- |
Cable Gland | - | - | PG13.5 | - | - | - | Brass, Nickel Plated | - | Silver | - | - | |
|
|
180D7CABLE GLAND 4.06-6.6MM PG9 BRASS |
2,300 |
|
- |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | PG9 | 0.590" (14.99mm) | - | 0.600" (15.2mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
180D8CABLE GLND 5.08-7.87MM PG9 BRASS |
1,877 |
|
- |
Cable Gland | 0.200" (5.08mm) | 0.310" (7.87mm) | PG9 | 0.590" (14.99mm) | - | 0.600" (15.2mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
180D9CABLE GLAND 6.6-9.4MM PG9 BRASS |
1,485 |
|
- |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | PG9 | 0.590" (14.99mm) | - | 0.600" (15.2mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
96011.6CABLE GLAND MULT M16 BRASS |
4,796 |
|
- |
Cable Gland - Multiple Openings | - | - | M16x1.5 | - | - | - | Brass, Nickel Plated | Sealing Ring | Silver | - | - | |
|
|
96012.6CABLE GLAND MULT M16 BRASS |
2,523 |
|
- |
Cable Gland - Multiple Openings | - | - | M16x1.5 | - | - | - | Brass, Nickel Plated | Sealing Ring | Silver | - | - | |
|
|
96013.6CABLE GLAND MULT M16 BRASS |
1,228 |
|
- |
Cable Gland - Multiple Openings | - | - | M16x1.5 | - | - | - | Brass, Nickel Plated | Sealing Ring | Silver | - | - | |
|
|
20770.5CABLE GLAND 6.1-8.38MM PG13.5 |
1,572 |
|
- |
Cable Gland | 0.240" (6.10mm) | 0.330" (8.38mm) | PG13.5 | 0.260" (6.60mm) | - | 0.810" (20.6mm) | Polyvinylidene Fluoride (PVDF) | Strain Relief | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
20771.5CABLE GLAND 7.87-10.41MM PG13.5 |
3,177 |
|
- |
Cable Gland | 0.310" (7.87mm) | 0.410" (10.41mm) | PG13.5 | 0.260" (6.60mm) | - | 0.810" (20.6mm) | Polyvinylidene Fluoride (PVDF) | Strain Relief | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
1737300000CABLE GLAND 13-19MM M25 POLYAMID |
2,169 |
|
Datasheet |
Cable Gland | 0.512" (13.00mm) | 0.748" (19.00mm) | M25x1.5 | 0.512" (13.00mm) | - | - | Polyamide (PA), Nylon | Seal | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 80°C | |
|
|
5315820CABLE GLAND MULT PG11 POLYAMIDE |
4,313 |
|
- |
Cable Gland - Multiple Openings | - | - | PG11 | 0.315" (8.00mm) | - | 0.092" (2.3mm) | Polyamide (PA6), Nylon 6 | - | Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 120°C | |
|

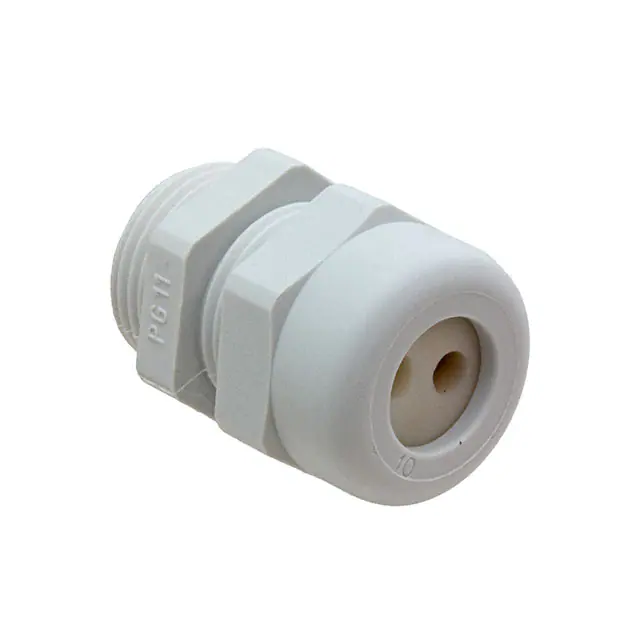

5315822CABLE GLAND MULT PG11 POLYAMIDE |
2,059 |
|
Datasheet |
Cable Gland - Multiple Openings | - | - | PG11 | 0.315" (8.00mm) | - | - | Polyamide (PA66), Nylon 6/6 | - | Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 120°C | |
|
|
20866.4CABLE GLAND 1/2" NPT |
4,356 |
|
- |
Cable Gland | - | - | 1/2" NPT | - | - | - | - | - | Opaque | - | - | |
|
|
20915.6CABLE GLAND 4.06-6.6MM 3/8" NPT |
2,606 |
|
- |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | 3/8" NPT | 0.510" (12.95mm) | - | 0.675" (17.2mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
20916.6CABLE GLAND 6.6-9.4MM 3/8" NPT |
2,959 |
|
- |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | 3/8" NPT | 0.510" (12.95mm) | - | 0.675" (17.2mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C |
