Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
26110.6CABLE GLAND M25 |
3,667 |
|
- |
Cable Gland | - | - | M25x1.5 | - | - | - | - | - | - | - | - | |
|
|
98584.6CABLE FEEDTHROUGH 6.6-16MM PG16 |
4,425 |
|
- |
Cable Feedthrough | 0.260" (6.60mm) | 0.630" (16.00mm) | PG16 | 0.590" (14.99mm) | - | 0.910" (23.1mm) | Brass, Nickel Plated | - | Silver | IP54 - Dust Protected, Water Resistant | - | |
|
|
CG-M-M42-2CABLE GLAND 22-30MM M42 BRASS |
2,127 |
|
Datasheet |
Cable Gland | 0.866" (22.00mm) | 1.181" (30.00mm) | M42x2 | 0.433" (11.00mm) | - | 1.660" (42.2mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
CG-M-M40D-2CABLE GLAND, METRIC THREAD, IP68 |
4,359 |
|
Datasheet |
Cable Gland | 0.866" (22.00mm) | 1.181" (30.00mm) | M40x2 | 0.433" (11.00mm) | - | 1.575" (40.0mm) | Brass, Nickel Plated | - | - | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
20923.4CABLE GLAND PG13.5 PVDF |
2,413 |
|
- |
Cable Gland - No Openings | - | - | PG13.5 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | Opaque | - | - | |
|
|
20755.4CABLE GLAND 6.1-8.38MM PG13.5 |
1,988 |
|
- |
Cable Gland | 0.240" (6.10mm) | 0.330" (8.38mm) | PG13.5 | 0.260" (6.60mm) | - | 0.810" (20.6mm) | Polyvinylidene Fluoride (PVDF) | Strain Relief | Opaque | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
20756.4CABLE GLAND 7.87-10.41MM PG13.5 |
1,703 |
|
- |
Cable Gland | 0.310" (7.87mm) | 0.410" (10.41mm) | PG13.5 | 0.260" (6.60mm) | - | 0.810" (20.6mm) | Polyvinylidene Fluoride (PVDF) | Strain Relief | Opaque | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
20671.5CABLE GLAND 4.06-6.6MM PG9 PVDF |
1,551 |
|
- |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | PG9 | - | - | 0.600" (15.2mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 150°C | |
|
|
20672.5CABLE GLAND 5.59-8.38MM PG9 PVDF |
1,648 |
|
- |
Cable Gland | 0.220" (5.59mm) | 0.330" (8.38mm) | PG9 | - | - | 0.600" (15.2mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 150°C | |
|
|
20948.1CABLE GLAND RA 11.43-15.5MM PG16 |
2,585 |
|
- |
Cable Gland - 90° | 0.450" (11.43mm) | 0.610" (15.50mm) | PG16 | 0.390" (9.91mm) | - | 0.890" (22.6mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|

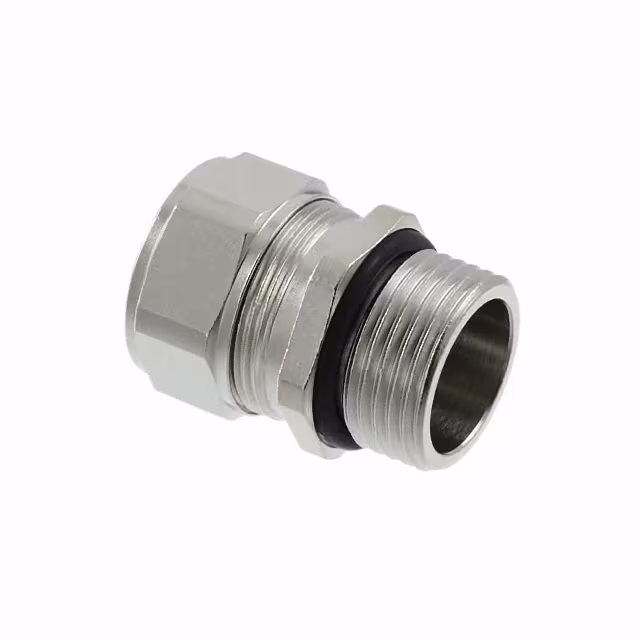

A1100.11.055CABLE GLAND 4-5.5MM PG11 BRASS |
2,981 |
|
Datasheet |
Cable Gland | 0.157" (4.00mm) | 0.217" (5.50mm) | PG11 | 0.394" (10.00mm) | - | 0.732" (18.6mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
50.632PA7035/STOPERFECT CABLE GLAND POLYAMIDE WI |
2,151 |
|
Datasheet |
Cable Gland | - | - | M32x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | - | Gray | IP65 - Dust Tight, Water Resistant | -40°C ~ 100°C | |
|

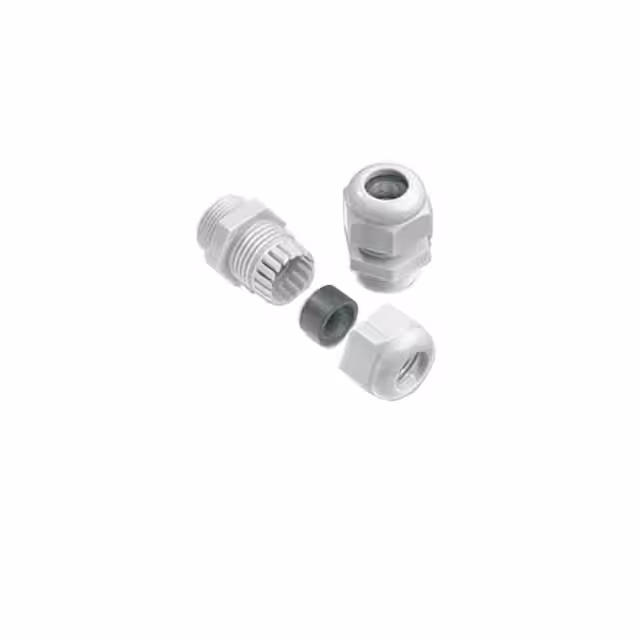

1909700000CABLE GLAND 10-14MM M20 POLYAMID |
1,404 |
|
Datasheet |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | M20x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C | |
|
50.011/EMVCABLE GLAND 5-10MM PG11 BRASS |
4,815 |
|
Datasheet |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | PG11 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
98352.6CABLE GLAND M16 BRASS |
4,621 |
|
- |
Cable Gland | - | - | M16x1.5 | 0.200" (5.08mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | - | Silver | IP65 - Dust Tight, Water Resistant | - | |
|
|
18490.4CABLE GLAND 3.5-6MM PG11 PVDF |
3,660 |
|
- |
Cable Gland - Flat Cables | 0.138" (3.50mm) | 0.236" (6.00mm) | PG11 | 0.240" (6.10mm) | - | 0.730" (18.5mm) | Polyvinylidene Fluoride (PVDF) | - | Opaque | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 150°C | |
|
|
21101.4CABLE GLND 2.79-10.5MM PG11 PVDF |
3,438 |
|
- |
Cable Gland - Flat Cables | 0.110" (2.79mm) | 0.413" (10.50mm) | PG11 | 0.240" (6.10mm) | - | 0.730" (18.5mm) | Polyvinylidene Fluoride (PVDF) | - | Opaque | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 150°C | |
|
|
21102.4CABLE GLAND 3.5-9MM PG11 PVDF |
1,211 |
|
- |
Cable Gland - Flat Cables | 0.138" (3.50mm) | 0.354" (9.00mm) | PG11 | 0.240" (6.10mm) | - | 0.730" (18.5mm) | Polyvinylidene Fluoride (PVDF) | - | Opaque | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 150°C | |
|
|
21103.4CABLE GLAND 4-6MM PG11 PVDF |
2,742 |
|
- |
Cable Gland - Flat Cables | 0.157" (4.00mm) | 0.236" (6.00mm) | PG11 | 0.240" (6.10mm) | - | 0.730" (18.5mm) | Polyvinylidene Fluoride (PVDF) | - | Opaque | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 150°C | |
|
|
18432.4CABLE GLAND 4.5-7MM PG11 PVDF |
1,077 |
|
- |
Cable Gland - Flat Cables | 0.177" (4.50mm) | 0.276" (7.00mm) | PG11 | 0.240" (6.10mm) | - | 0.730" (18.5mm) | Polyvinylidene Fluoride (PVDF) | - | Opaque | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 150°C |
