Sumida America Components Inc. CDRCH12D78BNP-150MC
- Part No.:
- CDRCH12D78BNP-150MC
- Manufacturer:
- Sumida America Components Inc.
- Category:
- Arrays, Signal Transformers
- Package:
- Nonstandard
- Datasheet:
-
CDRCH12D78BNP-150MC.pdf
- Description:
- INDUCT ARRAY 2 COIL 15UH SMD
- Quantity:
- Payment:

- Shipping:

Inventory:3,396
Please send an inquiry. Send us your inquiry, and we will respond immediately.
- Specifications
- FAQ
- Product Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Sumida America Components Inc.
- Series:
- CDRCH12D78B
- Package/Case:
- Nonstandard
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Number of Coils:
- 2
- Inductance - Connected In Parallel:
- 15 µH
- Inductance - Connected In Series:
- 60 µH
- Tolerance:
- ±20%
- Current Rating - Parallel:
- 4 A
- Current Rating - Series:
- 2 A
- Current Saturation - Parallel:
- 8.2 A
- Current Saturation - Series:
- 4.1 A
- DC Resistance (DCR) - Parallel:
- 36mOhm Max
- DC Resistance (DCR) - Series:
- 144mOhm
- Shielding:
- Shielded
- Ratings:
- -
- Operating Temperature:
- -40°C ~ 125°C
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.480" L x 0.480" W (12.20mm x 12.20mm)
- Height:
- 0.315" (8.00mm)
1. How to order CDRCH12D78BNP-150MC on SANJIA TECHNOLOGY LTD.?
Currently, SANJIA TECHNOLOGY LTD. only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.
2. How does SANJIA TECHNOLOGY LTD. guarantee that CDRCH12D78BNP-150MC is from the original manufacturer or authorized agents?
We have a professional and experienced quality control team to strictly verify and test the CDRCH12D78BNP-150MC. All suppliers must pass our qualification reviews before they can publish their products including CDRCH12D78BNP-150MC on SANJIA TECHNOLOGY LTD.; we pay more attention to the channels and quality of CDRCH12D78BNP-150MC products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.
3. Are the CDRCH12D78BNP-150MC price and inventory displayed accurate?
The price and inventory of CDRCH12D78BNP-150MC fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.
4. What forms of payment are accepted?
Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.
Warm Tips: Some orders in certain payment forms may require handling fee.
5. How is the shipping arranged?
Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.
Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.
Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.
6. What is the process for return or replacement of CDRCH12D78BNP-150MC?
All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the CDRCH12D78BNP-150MC we delivered, we will accept the replacement or return of the CDRCH12D78BNP-150MC only when all of the below conditions are fulfilled:
(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.
(2)We are informed of the defect described above within 90 days after the delivery of CDRCH12D78BNP-150MC.
(3)The PartNo is unused and only in the original unpacked packaging.
Two processes to return the products:
(1)Inform us within 90 days
(2)Obtain Requesting Return Authorizations
7.How to contact us to get technical supports, such as CDRCH12D78BNP-150MC pin diagram, CDRCH12D78BNP-150MC datasheet?
If you need any after-sales service, please do not hesitate to contact us.
| Image | ![]() |
![]() |
![]() |
![]() |
![]() |
| Part Number | CDRCH12D78BNP-100MC | CDRCH12D78BNP-101MC | CDRCH12D78BNP-150MC | CDRCH12D78BNP-151MC | CDRCH12D78BNP-220MC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Series | CDRCH12D78B | CDRCH12D78B | CDRCH12D78B | CDRCH12D78B | CDRCH12D78B |
| Package/Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Number of Coils | 2 | 2 | 2 | 2 | 2 |
| Inductance - Connected In Parallel | 10 µH | 100 µH | 15 µH | 150 µH | 22 µH |
| Inductance - Connected In Series | 40 µH | 440 µH | 60 µH | 600 µH | 88 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating - Parallel | 4.4 A | 1.6 A | 4 A | 1.2 A | 3.3 A |
| Current Rating - Series | 2.3 A | 780 mA | 2 A | 600 mA | 1.6 A |
| Current Saturation - Parallel | 10 A | 3.1 A | 8.2 A | 2.5 A | 7 A |
| Current Saturation - Series | 5 A | 1.55 A | 4.1 A | 1.25 A | 3.5 A |
| DC Resistance (DCR) - Parallel | 27mOhm Max | 192mOhm Max | 36mOhm Max | 324mOhm Max | 48mOhm Max |
| DC Resistance (DCR) - Series | 108mOhm Max | 768mOhm Max | 144mOhm | 1.29Ohm Max | 192mOhm Max |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Size / Dimension | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.480" L x 0.480" W (12.20mm x 12.20mm) |
| Height | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) |
-
DRQ73-100-R
Eaton - Electronics Division

-

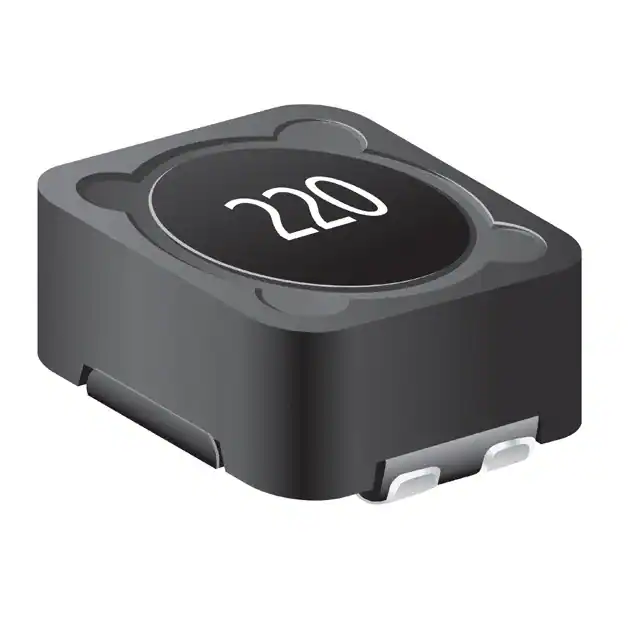

SRF1260-101M
Bourns Inc.

-

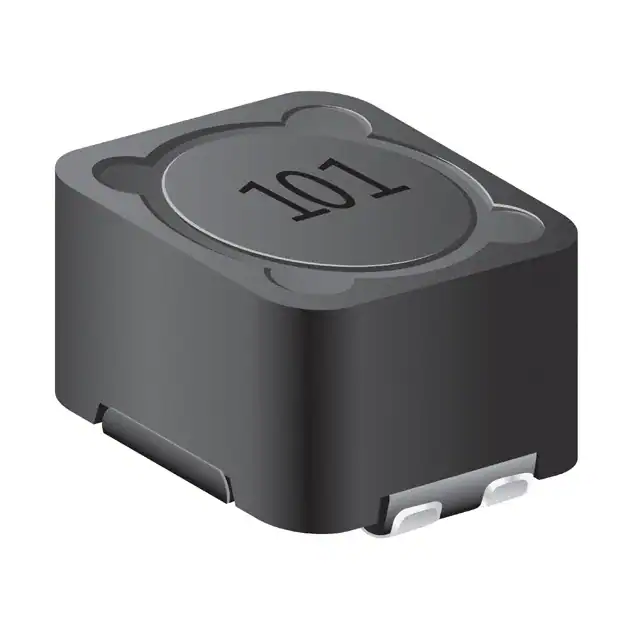

SRF1280-100M
Bourns Inc.

-

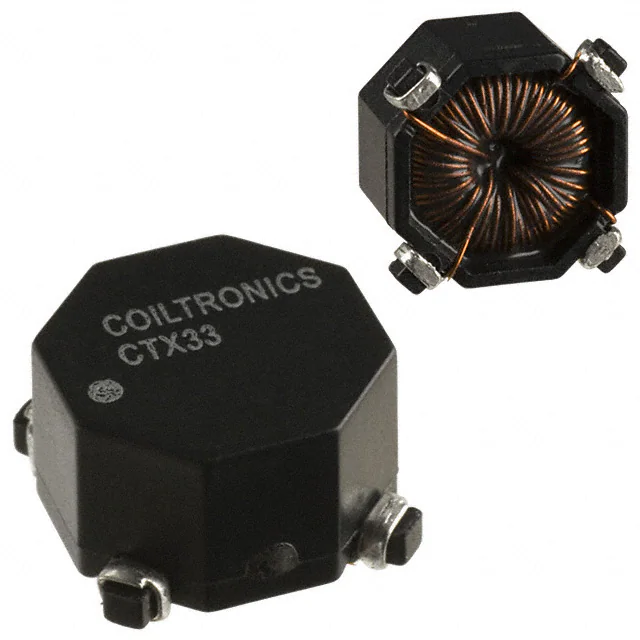

CTX33-3P-R
Eaton - Electronics Division

-

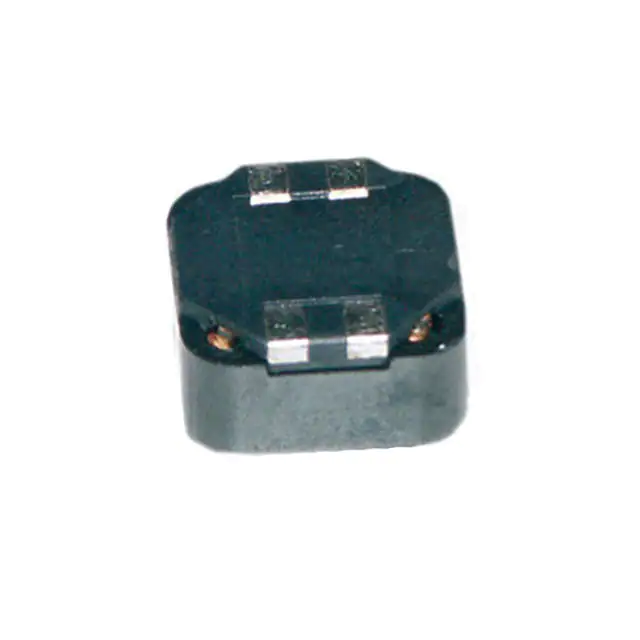

744877220
Würth Elektronik
-
CTX10-2P-R
Eaton - Electronics Division

-
CTX33-2P-R
Eaton - Electronics Division

-
CTX33-2-R
Eaton - Electronics Division

-

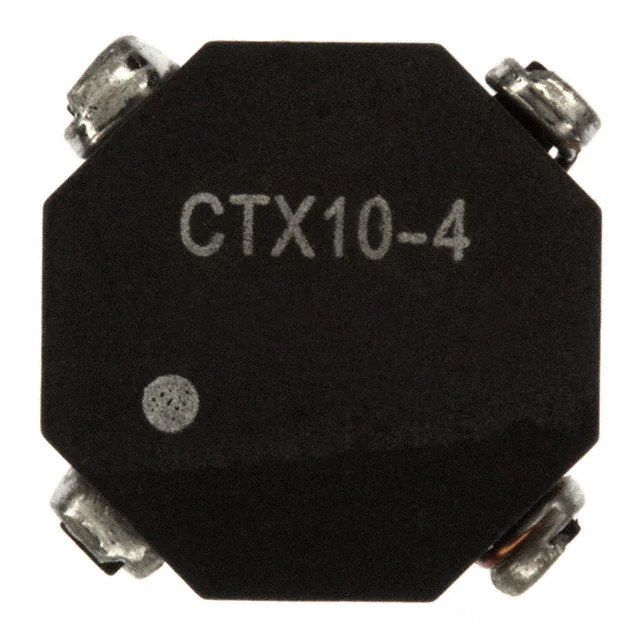

CTX10-4-R
Eaton - Electronics Division

-

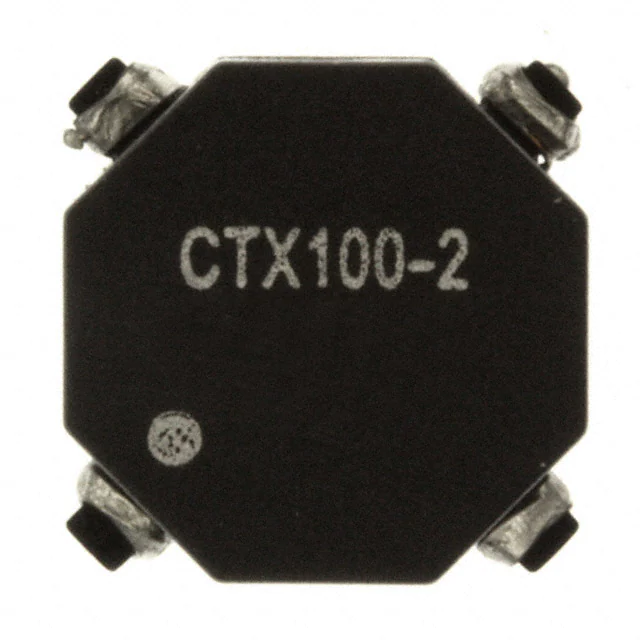

CTX100-2-R
Eaton - Electronics Division

-

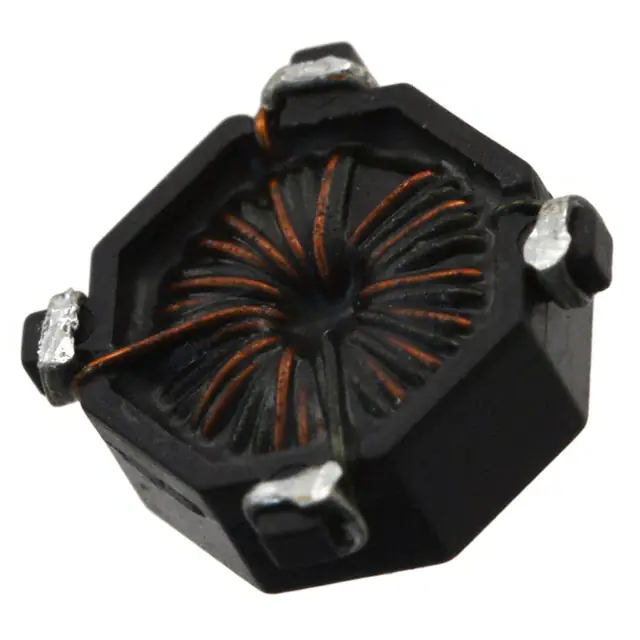

CTX10-1-R
Eaton - Electronics Division

-

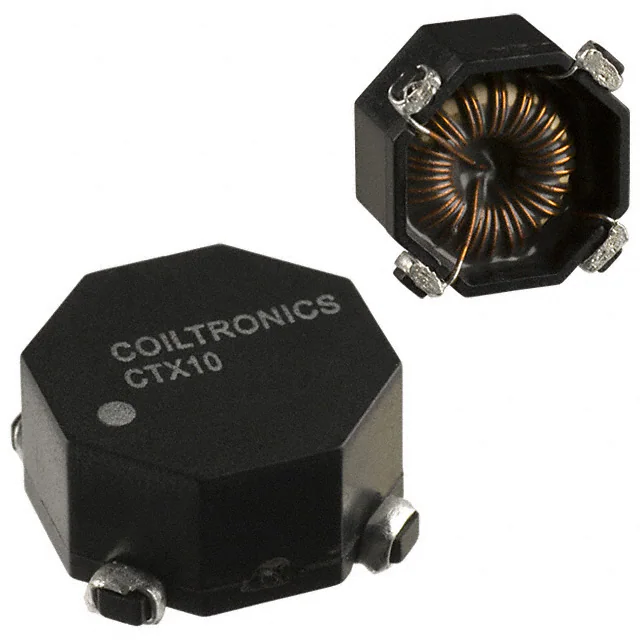

CTX10-4A-R
