TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

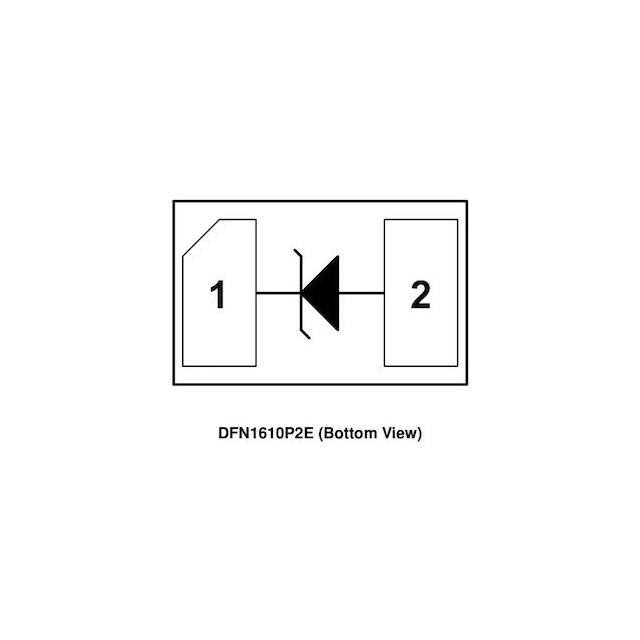

AZ6518-01FTVS DEVICE 1-CHANNEL 1.8V |
3,000 |
|
Datasheet |
2-UDFN | - | Strip | Active | Zener | 1 | - | 1.8V (Max) | 2.2V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1610P2E |
|

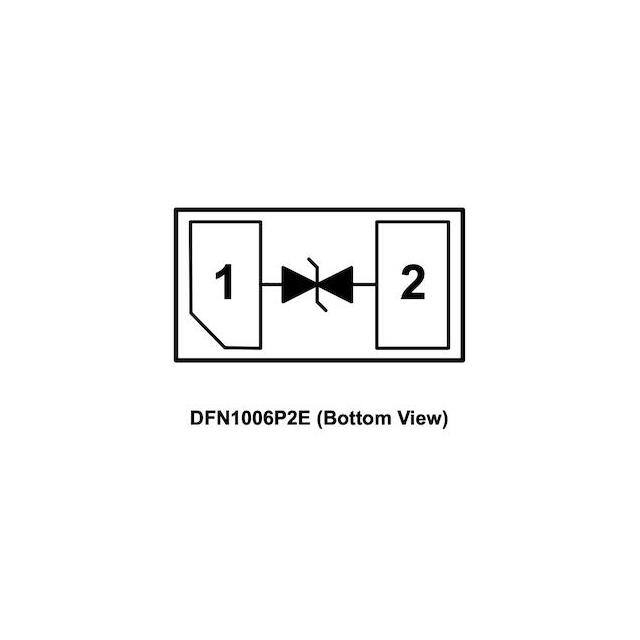

AZ9568-01FTVS DEVICE DFN1006P2E 1-CH 8V |
3,000 |
|
Datasheet |
0402 (1006 Metric) | - | Strip | Active | Zener | - | 1 | 8V (Max) | 10V | - | - | - | No | - | - | -55°C ~ 125°C (TC) | Automotive | AEC-Q101 | Surface Mount | DFN1006P2E |
|

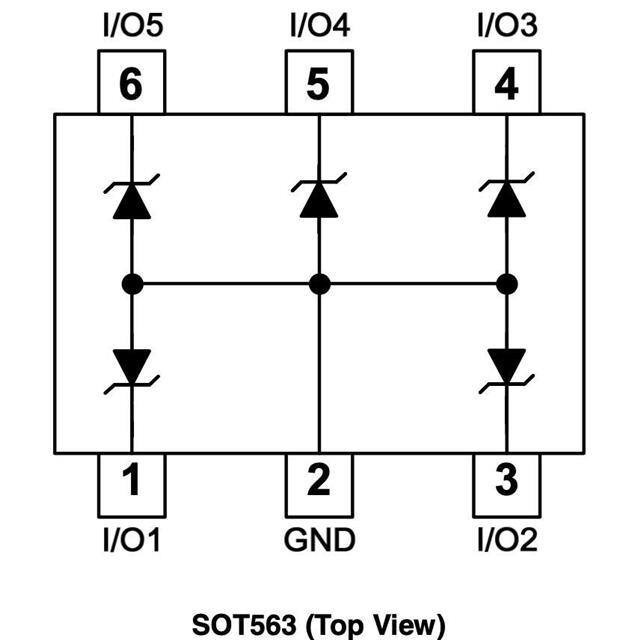

AZ2015-05RTVS DEVICE LOW SPEED 5-CH 5V |
3,000 |
|
Datasheet |
SOT-563, SOT-666 | - | Strip | Active | Zener | 5 | - | 5V (Max) | 6.5V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOT-563 |
|

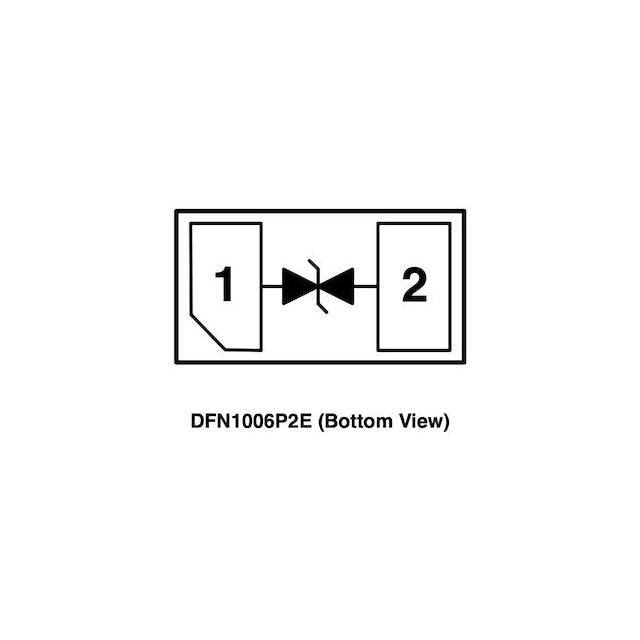

AZ9565-01FTVS DEVICE DFN1006P2E 1-CH 5V |
3,000 |
|
Datasheet |
0402 (1006 Metric) | - | Strip | Active | Zener | - | 1 | 5V (Max) | 7V | - | - | - | No | - | - | -55°C ~ 125°C (TC) | Automotive | AEC-Q101 | Surface Mount | DFN1006P2E |
|
AZ9525-01HTVS DEVICE LOW SPEED 1-CH 5V |
3,000 |
|
Datasheet |
SOD-523 | - | Strip | Active | Zener | - | 1 | 5V (Max) | 5.6V | 11V | - | - | No | Power Line | 7.5pF @ 1MHz | -55°C ~ 125°C (TC) | - | - | Surface Mount | SOD-523 |
|
|
AZ9625-01FTVS SURGE PROTECTOR 1-CH 2.5V |
3,000 |
|
Datasheet |
DFN1006P2E | - | Strip | Active | Zener | - | 1 | 2.5V (Max) | 3.5V | 5V | 20A | - | No | Power Line | 63pF @ 1MHz | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN1006P2E |
|
1.5KE22CA1.5KW 22V Clamp 49.02A Ipp TVS |
1,200 |
|
Datasheet |
Axial | 1.5KE | Strip | Active | - | - | 1 | - | 20.9V | 30.6V | - | 1500W (1.5kW) | - | - | - | -55°C ~ 175°C | - | - | Through Hole | DO-201 |
|
SMAJ90CATVS DIODE 90VWM 146VC |
10,200 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | - | 1 | 90V | 100V | 146V | 2.74A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMCJ110CATVS DIODE 110VWM 177VC |
3,200 |
|
Datasheet |
DO-214AB (SMC) | SMCJ | Strip | Active | Zener | - | 1 | 110V | 122V | 177V | 8.47A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMAJ200ATVS DIODE 200VWM 324VC |
10,200 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 200V | 224V | 324V | 1.23A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
NSPM2051MUT3GHIGH SURGE ESD PROTECTION |
32,000 |
|
- |
2-UDFN | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.1V | 10.5V | 100A (8/20µs) | 1050W (1.05kW) | No | General Purpose | 380pF @ 1MHz (Max) | -65°C ~ 150°C (TJ) | - | - | Surface Mount | 2-UDFN (1.6x1) |
|
TGL41-10CATVSDIODE,MELF,8.5V,400W,UNI |
30,000 |
|
Datasheet |
DO-213AB, MELF | - | Strip | Active | Zener | - | 1 | 8.5V | 9.5V | 14.5V | 29A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-213AB (MELF) |
|
|
NNCD6.2LG(1)-T1-ANNCD6.2LG(1)-T1-A - LOW CAPACITA |
27,000 |
|
Datasheet |
SC-74A, SOT-753 | - | Bulk | Obsolete | Steering (Rail to Rail) | 4 | - | 3V (Max) | 5.7V | - | - | 2W | No | Telecom, USB | 8pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | 5-Mini Mold |
|
|
NNCD6.2LG-T1-ANNCD6.2LG-T1-A - LOW CAPACITANCE |
12,000 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Steering (Rail to Rail) | 4 | - | 3V (Max) | 5.7V | - | - | 2W | No | Telecom, USB | 8pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SC-59 |
|
TGL41-22ATVSDIODE,MELF,18.8V,400W,UNI |
10,000 |
|
Datasheet |
DO-213AB, MELF | - | Strip | Active | Zener | 1 | - | 18.8V | 20.9V | 30.6V | 13.7A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-213AB (MELF) |
|
|
TGL41-160ATVSDIODE,MELF,136V,400W,UNI |
5,000 |
|
Datasheet |
DO-213AB, MELF | - | Strip | Active | Zener | 1 | - | 136V | 152V | 219V | 1.9A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-213AB (MELF) |
|
|
TGL41-39TVSDIODE,MELF,31.6V,400W,UNI |
5,000 |
|
Datasheet |
DO-213AB, MELF | - | Strip | Obsolete | Zener | 1 | - | 31.6V | 35.1V | 56.4V | 7.4A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-213AB (MELF) |
|
|
TGL41-20ATVSDIODE,MELF,17.1V,400W,UNI |
5,000 |
|
Datasheet |
DO-213AB, MELF | - | Strip | Active | Zener | 1 | - | 17.1V | 19V | 27.7V | 15A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-213AB (MELF) |
|
|
SMCJ100ATVS DIODE 100VWM 162VC |
3,200 |
|
Datasheet |
DO-214AB (SMC) | SMCJ | Strip | Active | Zener | 1 | - | 100V | 111V | 162V | 9.26A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SMCJ14ATVS DIODE 14VWM 23.2VC |
3,200 |
|
Datasheet |
DO-214AB (SMC) | SMCJ | Strip | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 64.66A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
