TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SA11A-BULKUNI-DIRECTIONAL TVS 500W, CASE T |
3,000 |
|
Datasheet |
DO-204AL, DO-41, Axial | - | Bag | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 27.4A | 500W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-41 |
|
AZ4A20-01FTVS DEVICE 1-CHANNEL 20V |
3,000 |
|
Datasheet |
0201 (0603 Metric) | - | Strip | Active | Zener | - | 1 | 20V (Max) | 22.8V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN0603P2Y |
|

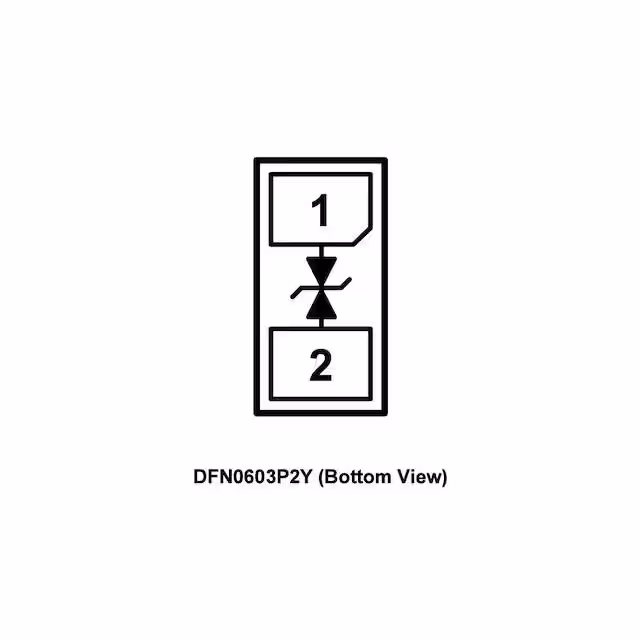

AZ4A24-01FTVS DEVICE 1-CHANNEL 24V |
3,000 |
|
Datasheet |
0201 (0603 Metric) | - | Strip | Active | Zener | - | 1 | 24V (Max) | 26.8V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN0603P2Y |
|

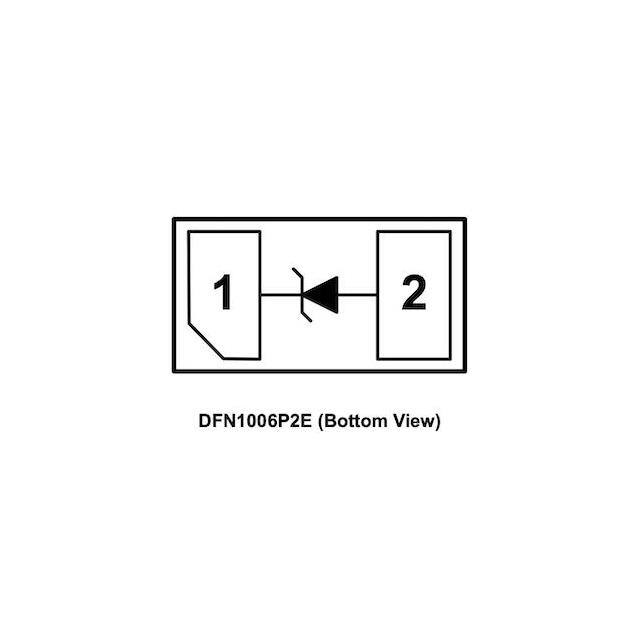

AZ5815-01FTVS DEVICE 1-CHANNEL 5.5V |
3,000 |
|
Datasheet |
0402 (1006 Metric) | - | Strip | Active | Zener | 1 | - | 5.5V (Max) | 6.2V | - | - | - | No | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN1006P2E |
|

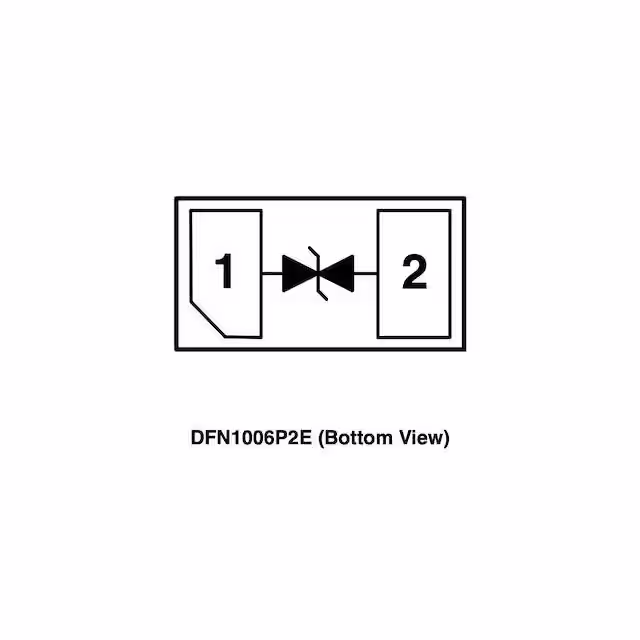

AZ5325-01FTVS DEVICE 1-CHANNEL 5V |
3,000 |
|
Datasheet |
0402 (1006 Metric) | - | Strip | Active | Zener | - | 1 | 5V (Max) | 7V | - | - | - | No | General | - | -40°C ~ 85°C (TC) | - | - | Surface Mount | DFN1006P2E |
|

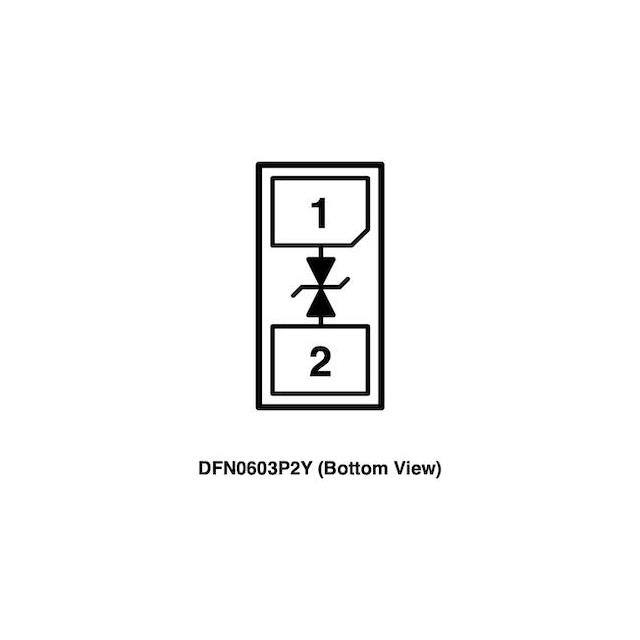

AZ4A12-01FTVS DEVICE 1-CHANNEL 12V |
3,000 |
|
Datasheet |
0201 (0603 Metric) | - | Strip | Active | Zener | - | 1 | 12V (Max) | 13.5V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN0603P2Y |
|

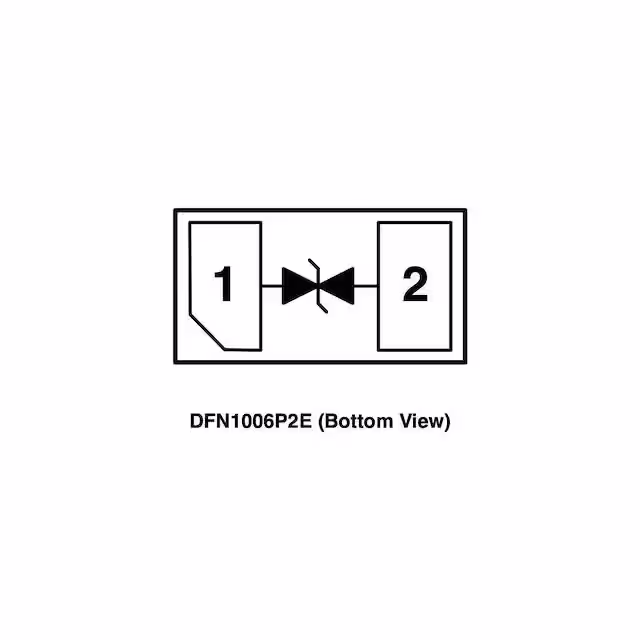

AZ5883-01FTVS DEVICE 1-CHANNEL 3.3V |
3,000 |
|
Datasheet |
0402 (1006 Metric) | - | Strip | Active | Zener | - | 1 | 3.3V (Max) | 4.5V | - | - | - | No | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN1006P2E |
|

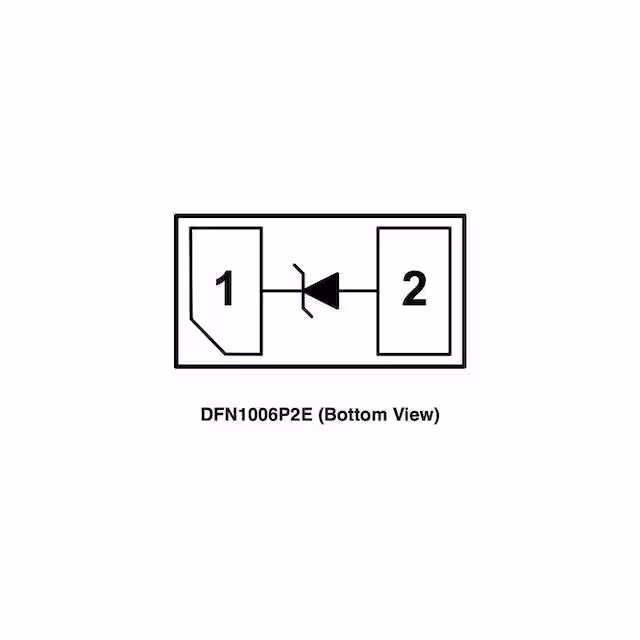

AZ5215-01FTVS DEVICE 1-CHANNEL 5V |
3,000 |
|
Datasheet |
0402 (1006 Metric) | - | Strip | Active | Zener | 1 | - | 5V (Max) | 6V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1006P2E |
|

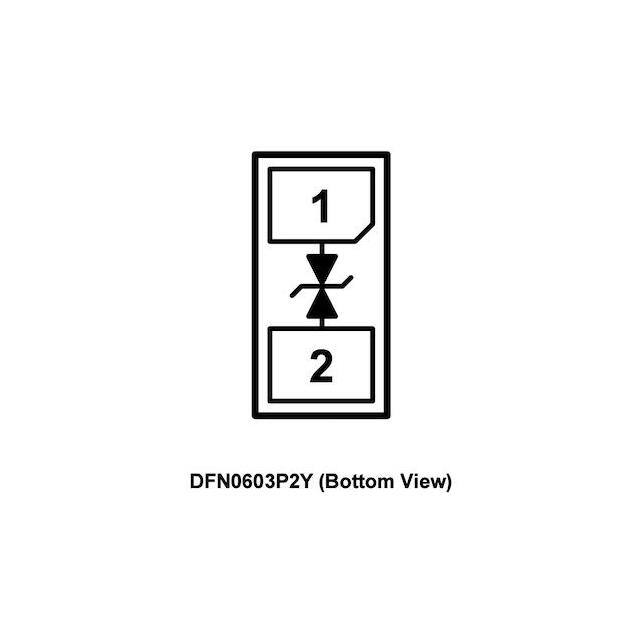

AZ4A18-01FTVS DEVICE 1-CHANNEL 18V |
3,000 |
|
Datasheet |
0201 (0603 Metric) | - | Strip | Active | Zener | - | 1 | 18V (Max) | 20V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN0603P2Y |
|
AZ5013-01FTVS DEVICE 1-CHANNEL 3.3V |
3,000 |
|
Datasheet |
0402 (1006 Metric) | - | Strip | Active | Zener | 1 | - | 3.3V (Max) | 4.5V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1006P2X |
|

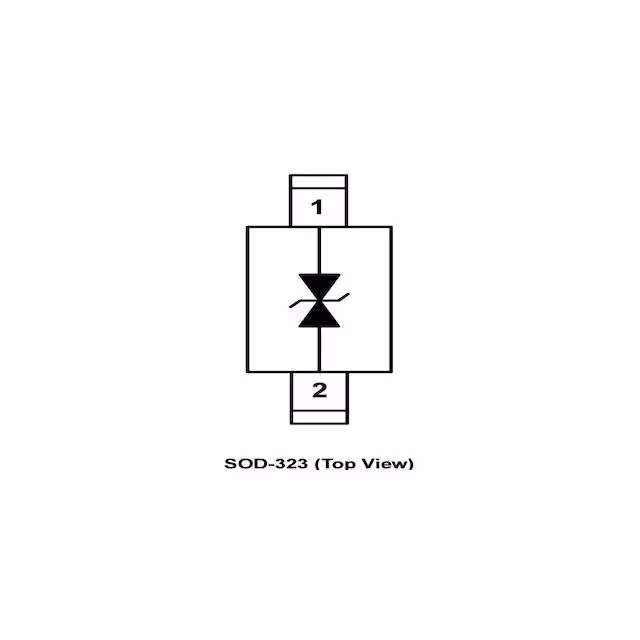

AZ1603-01LTVS DEVICE HIGH SPEED 1-CH 3.3V |
3,000 |
|
Datasheet |
SC-76, SOD-323 | - | Strip | Active | Zener | - | 1 | 3.3V (Max) | 4V | - | - | - | No | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | SOD-323 |
;;2.jpg)
|
SMCJ85ATRANS VOLTAGE SUPPRESSOR DIODE, |
2,825 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Bulk | Active | Zener | 1 | - | 85V | 94.4V | 137V | 11A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
1N6287BULKTVS DIODE 38.1VWM 67.8VC DO201 |
2,000 |
|
Datasheet |
DO-201AA, DO-27, Axial | - | Bag | Active | Zener | 1 | - | 38.1V | 42.3V | 67.8V | 22.2A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
SMAJ14CATVS DIODE 14VWM 23.3VC |
10,000 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | - | 1 | 14V | 15.6V | 23.3V | 17.24A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
P4SMAJ33CTVSDIODE,SMA,33V,400W,BI |
90,000 |
|
Datasheet |
DO-214AC, SMA | - | Strip | Active | Zener | - | 1 | 33V | 36.7V | 59V | 6.8A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ9.0CATVSDIODE,SMA,9V,400W,BI |
7,500 |
|
Datasheet |
DO-214AC, SMA | - | Strip | Active | Zener | - | 1 | 9V | 10V | 15.4V | 26A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ75CATVS DIODE 75VWM 121VC |
10,200 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | - | 1 | 75V | 83.3V | 121V | 3.31A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMBJ54ATVS DIODE 54VWM 87.1VC |
6,000 |
|
Datasheet |
DO-214AA (SMB) | SMBJ | Strip | Active | Zener | 1 | - | 54V | 60V | 87.1V | 6.89A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
SA10CA-T/RBI-DIRECTIONAL TVS 500W, CASE TY |
20,000 |
|
Datasheet |
DO-204AL, DO-41, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 10V | 11.1V | 17V | 29.4A | 500W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-41 |
|
SMCJ45CATRANS VOLTAGE SUPPRESSOR DIODE, |
9,810 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Bulk | Active | Zener | - | 1 | 45V | 50V | 72.7V | 20.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
