TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NNCD10C-T1-ANNCD10C - ZENER DIODES FOR SURGE |
51,000 |
|
- |
2-SMD, Gull Wing | - | Bulk | Obsolete | Zener | - | 1 | 2V (Max) | 9.42V | - | - | 85W | No | General Purpose | 7pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | 2-Ultra Super Mini Mold |
|
|
NNCD6.2F-T1B-ANNCD6.2F-T1B-A - ELECTROSTATIC D |
31,849 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Zener | 2 | - | 3V (Max) | 5.86V | - | - | 100W | No | General Purpose | 120pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SC-59 |
|
|
NNCD10F-T1B-ATNNCD10F-T1B-AT - ELECTROSTATIC D |
30,000 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Zener | 2 | - | 7V (Max) | 9.45V | - | - | 100W | No | General Purpose | 80pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SC-59 |
|
|
NNCD10F-T1B-ANNCD10F-T1B-A - ELECTROSTATIC DI |
21,000 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Zener | 2 | - | 7V (Max) | 9.45V | - | - | 100W | No | General Purpose | 80pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SC-59 |
|
|
NNCD10F(0)-T1B-ANNCD10F - ZENER DIODES FOR SURGE |
18,000 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Zener | 2 | - | 7V (Max) | 9.45V | - | - | 100W | No | General Purpose | 80pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SC-59 |
|
|
NNCD6.2F-T1B-ATNNCD6.2F-T1B-AT - ELECTROSTATIC |
12,000 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Zener | 2 | - | 3V (Max) | 5.86V | - | - | 100W | No | General Purpose | 120pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SC-59 |
|
|
P4KE30CAT/RTVS DIODE 25.6VWM 41.4VC DO41 |
10,000 |
|
Datasheet |
DO-204AL, DO-41, Axial | P4KE6.8C | Tape & Reel (TR) | Active | Zener | - | 1 | 25.6V | 28.5V | 41.4V | 10A | 400W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-41 |
|
|
P4KE39T/RTVS DIODE 31.6VWM 56.4VC DO41 |
5,000 |
|
Datasheet |
DO-204AL, DO-41, Axial | P4KE | Tape & Reel (TR) | Active | Zener | 1 | - | 31.6V | 35.1V | 56.4V | 7.4A | 400W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-41 |
|
SD05CTVS DIODE 5VWM 18VC SOD323 |
180,000 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 18V | 24A (8/20µs) | 350W | Yes | General Purpose | 300pF @ 1MHz (Max) | -55°C ~ 150°C | - | - | Surface Mount | SOD-323 |
|
SMAJ11ATVS DIODE 11VWM 18.2VC |
10,100 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 21.98A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMBJ7.0ATVS DIODE 7VWM 12VC |
6,000 |
|
Datasheet |
DO-214AA (SMB) | SMBJ | Strip | Active | Zener | 1 | - | 7V | 7.78V | 12V | 50A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|

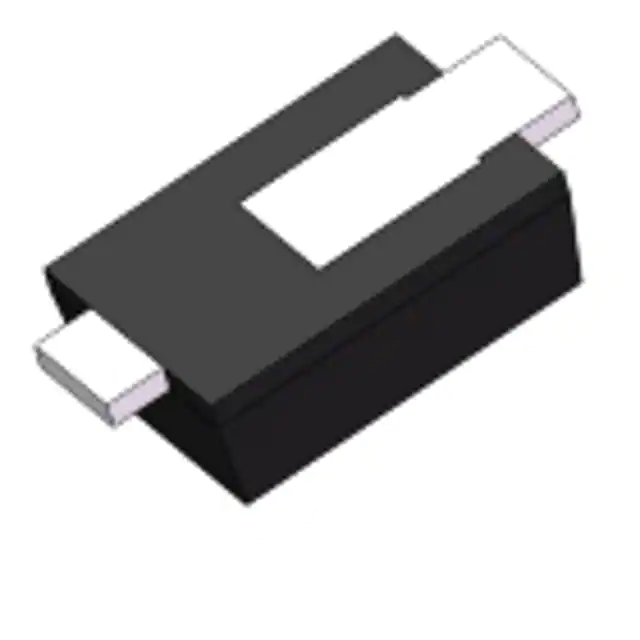

4SMF58ASURFACE MOUNT UNI/BI-DIRECTIONAL |
2,100 |
|
Datasheet |
SOD-123F | 4SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 4.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
4SMF33ASURFACE MOUNT UNI/BI-DIRECTIONAL |
2,100 |
|
Datasheet |
SOD-123F | 4SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 7.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
4SMF5.0ASURFACE MOUNT UNI/BI-DIRECTIONAL |
1,989 |
|
Datasheet |
SOD-123F | 4SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 43.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
H02X35V0BUESD PROTECTION DIODE |
59,750 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 16V | 2A (8/20µs) | 30W | No | HDMI, USB | 0.2pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN0603 |
|
P6KE24CATVS Diode 20.5V 600W DO-204AC AX |
4,000 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 1 | - | - | - | 1A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|

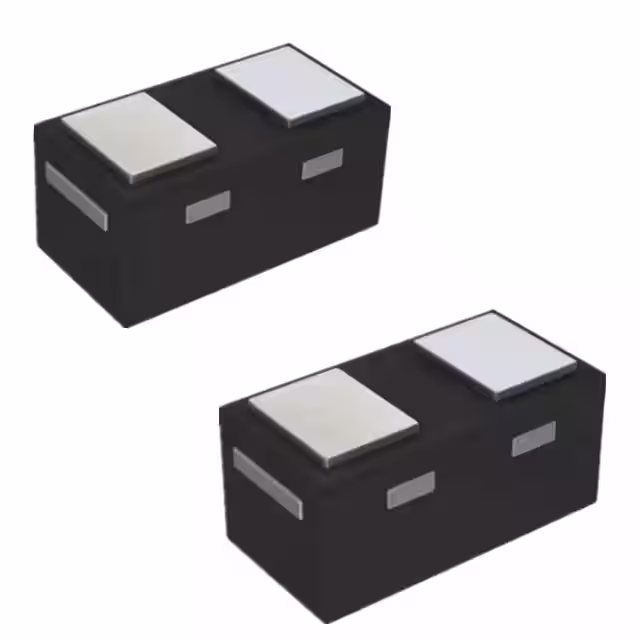

ESD03D6BUTVS DIODE 3.3VWM 12VC DFN0603 |
3,000,000 |
|
Datasheet |
0201 (0603 Metric) | DFN0603 | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 12V | - | 1A (8/20µs) | 96W | Yes | General Purpose | 0.25pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN0603 |
|
SMAJ40CATVS DIODE 40VWM 64.5VC SMA |
2,000,000 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 6.2A | 400W | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ6.0ATVS DIODE 6VWM 10.3VC SMA |
2,000,000 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 38.8A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMAJ6.5CATVS DIODE 6.5VWM 11.2VC SMA |
2,000,000 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 6.5V | 7.22V | 11.2V | 35.7A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
