TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAJ90ASURFACE MOUNT UNI/BI-DIRECTIONAL |
3,440 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 90V | 100V | 146V | 2.8A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
SMAJ14CASurface Mount Uni/Bi-Directional |
3,435 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 14V | 15.6V | 23.2V | 17.3A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMAJ5.0CASURFACE MOUNT UNI/BI-DIRECTIONAL |
3,429 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 9.2V | 43.5A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
SMAJ170ASURFACE MOUNT UNI/BI-DIRECTIONAL |
3,400 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 170V | 189V | 275V | 1.5A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
SMAJ7.0CASURFACE MOUNT UNI/BI-DIRECTIONAL |
3,375 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 7V | 7.78V | 12V | 33.3A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
SMAJ7.0ASURFACE MOUNT UNI/BI-DIRECTIONAL |
3,375 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 33.3A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
SMAJ58ASURFACE MOUNT UNI/BI-DIRECTIONAL |
3,360 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 4.3A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
SMAJ15CASURFACE MOUNT UNI/BI-DIRECTIONAL |
3,240 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 15V | 16.7V | 24.4V | 16.4A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
SMAJ12ASURFACE MOUNT UNI/BI-DIRECTIONAL |
3,140 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 20.1A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
H07D324VBESD PROTECTION DIODE |
1,921 |
|
Datasheet |
SC-76, SOD-323 | HxxxD3xVxB | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26.7V | 52V | 7A | 350W | No | Telecom | 50pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
H09D318VBESD PROTECTION DIODE |
1,505 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 18V (Max) | 20V | 45V | 9A | 350W | No | Telecom | 57pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
H17D35V0BESD PROTECTION DIODE |
1,206 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 18V | 17A | 350W | No | Telecom | 200pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
H10D315VBESD PROTECTION DIODE |
1,020 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | 16.7V | 38V | 10A | 350W | No | Telecom | 68pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|

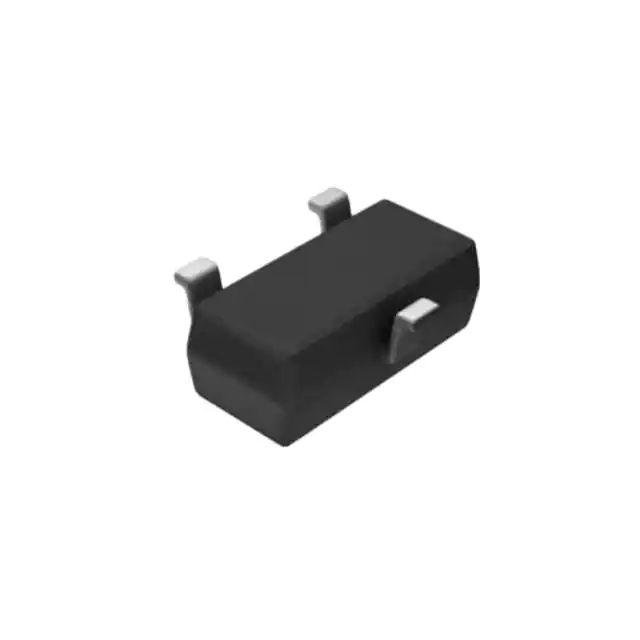

SM12TVS DIODE 12VWM 24VC SOT23 |
3,000,000 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | TO-23 | Tape & Reel (TR) | Active | Zener | 2 | - | 12V (Max) | 13.3V | 24V | - | 350W | No | General Purpose | 120pF @ 1MHz | -55°C ~ 150°C | - | - | Surface Mount | - |
.jpg)
|
ESD3Z3V3BUTVS DIODE 3.3VWM 12VC SOD323 |
3,000,000 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4.2V | - | 1A (8/20µs) | 100W | Yes | General Purpose | 0.4pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
.jpg)
|
SM15TVS DIODE 15VWM 24VC SOT23 |
3,000,000 |
|
Datasheet |
SOT-23 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 15V (Max) | 16.7V | - | 1A (8/20µs) | 350W | Yes | General Purpose | 120pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
SM05TVS DIODE 5VWM 9.8VC SOT23 |
3,000,000 |
|
Datasheet |
SOT-23 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6V | - | 1A (8/20µs) | 350W | Yes | General Purpose | 300pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
ESD1201OCTVS DIODE 12VWM 19VC DFN1006 |
3,000,000 |
|
Datasheet |
DFN1006 | DFN1006 | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13.3V | - | 1A (8/20µs) | 150W | Yes | General Purpose | 15pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006 |
|
SZNZQA5V6AXV5T1GLOW CAPACITANCE TRANSIENT VOLTAG |
103,590 |
|
- |
SOT-553 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 3V | 5.3V | 13V | 1.6A | 20W | No | USB | 13pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-553 |
|
|
NNCD5.6F-T1B-ANNCD5.6F - ZENER DIODES FOR SURG |
51,000 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Zener | 2 | - | 2.5V (Max) | 5.31V | - | - | 100W | No | General Purpose | 140pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | 3-Mini Mold |
