TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

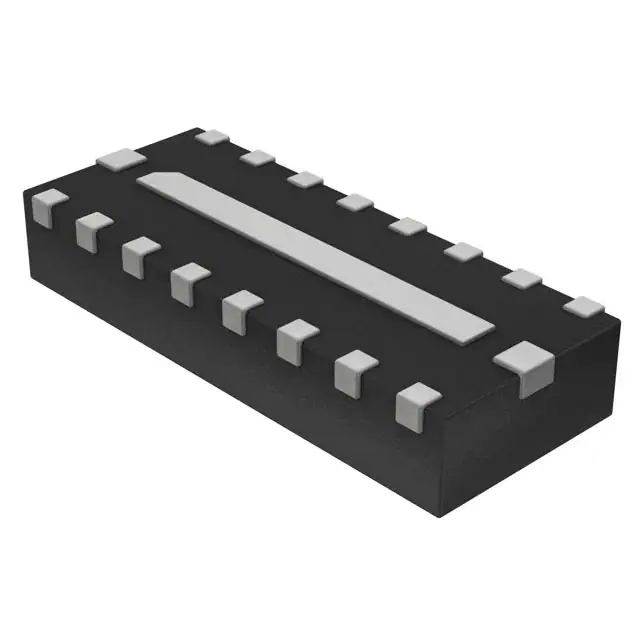

 Exposed Pad.jpg)
|
ESD4238MTTAGTVS DIODE 10VC 16WDFN |
9,408 |
|
Datasheet |
16-WFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 8 | - | - | 5V | 10V | 1A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-WDFN (4x1.6) |
|
ESDLC0554P3-TPTVS DIODE 5.5VWM 22VC DFN1616-6 |
5,822 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6.5V | 22V | 11A (8/20µs) | 240W | No | General Purpose | 1pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1616-6 |
|
MAX3202EEBS-TTVS DIODE 4UCSP |
7,641 |
|
Datasheet |
4-WFBGA, CSPBGA | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 2 | - | - | - | - | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UCSP (1.05x1.05) |
|

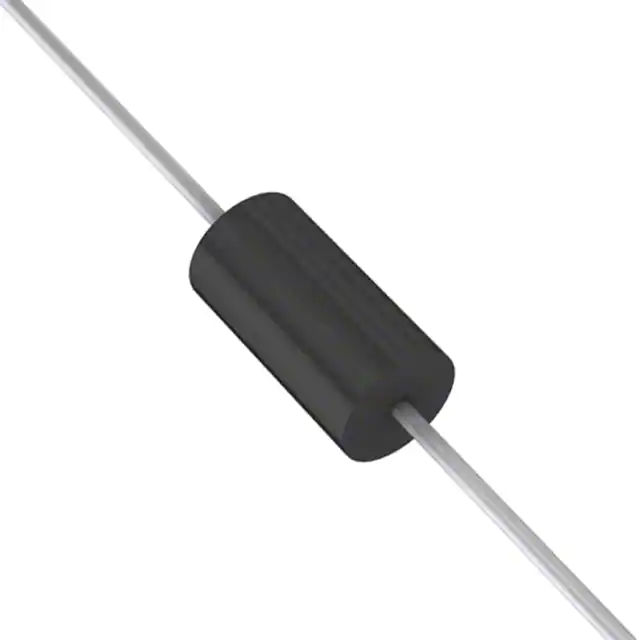

P6KE20A_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
4,000 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 17.1V | 19V | 27.7V | 22A | 600W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
|
P6KE30A_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
4,000 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 25.6V | 28.5V | 41.4V | 14.4A | 600W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
P6SMB170CATVS DIODE 145VWM 234VC DO214AA |
3,000 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 145V | 162V | 234V | 2.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
P2AL18A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
3,000 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20V | 29.2V | 6.8A | 200W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
SMA6L110ATVS DIODE 110VWM 177VC DO221AC |
2,875 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 110V | 122V | 177V | 3.4A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-221AC |
|
ATV06B120J-HFTVS DIODE 12VWM 19.9VC DO214AA |
2,844 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 30.15A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
SMA6L100ATVS DIODE 100VWM 162VC DO221AC |
2,804 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 100V | 111V | 162V | 3.7A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-221AC |
|
SMA6L9.0ATVS DIODE 9VWM 15.4VC DO221AC |
2,680 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 9V | 10V | 15.4V | 39A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-221AC |
|
|
SMA6L130ATVS DIODE 130VWM 209VC DO221AC |
2,636 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 130V | 144V | 209V | 2.9A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-221AC |
|
|
SMA6L13ATVS DIODE 13VWM 21.5VC DO221AC |
2,526 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 28A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-221AC |
|
SMCJ5.0ATVS DIODE 5VWM 9.2VC SMC |
2,480 |
|
Datasheet |
DO-214AB, SMC | - | Cut Tape (CT) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 163A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
SMA6L120ATVS DIODE 120VWM 193VC DO221AC |
2,275 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 120V | 133V | 193V | 3.2A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-221AC |
|
|
ATV06B240J-HFTVS DIODE 24VWM 38.9VC DO214AA |
1,959 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 15.42A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
P4SMAJ28A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
1,800 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 8.8A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ54A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
1,800 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 54V | 60V | 87.1V | 4.6A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ22CA-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
1,800 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 11.2A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ64A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
1,800 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 64V | 71.1V | 103V | 3.9A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
