TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMCJ33CA1500W TRANSIENT VOLTAGE SUPPRESS |
1,916 |
|
Datasheet |
SOD-123F | - | Cut Tape (CT) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 3.8A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123 |
|
P6KE7V5A-TTVS DIODE 6.4VWM 11.3VC DO15 |
1,884 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 6.4V | 7.13V | 11.3V | 53A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
P4SMAJ220A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
1,700 |
|
Datasheet |
DO-214AC, SMA | P4SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 220V | 242V | 356V | 1.1A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ9.0A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
1,700 |
|
Datasheet |
DO-214AC, SMA | P4SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 9V | 10V | 15.4V | 26A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ43CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
1,700 |
|
Datasheet |
DO-214AC, SMA | P4SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 43V | 47.8V | 69.4V | 5.7A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ85CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
1,690 |
|
Datasheet |
DO-214AC, SMA | P4SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 85V | 94.4V | 137V | 2.9A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
PESD12VL1BATVS DIODE 12VWM 26VC SOD323 |
1,688 |
|
Datasheet |
SC-76, SOD-323 | UMW | Cut Tape (CT) | Active | Zener | - | 1 | 12V (Max) | 13.3V | 26V | 10A (8/20µs) | 260W | No | General Purpose | 30pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
P4SMAJ10CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
1,680 |
|
Datasheet |
DO-214AC, SMA | P4SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 10V | 11.1V | 17V | 23.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
P6SMBJ13AS_R1_00001TRANSIENT VOLTAGE SUPPRESSOR |
1,600 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 28A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
1.5KE300CATVS D5.4X7.5 256V 1500W BIDIR |
1,250 |
|
Datasheet |
DO-201AA, DO-27, Axial | - | Tape & Box (TB) | Active | Zener | - | 1 | 256V | 285V | 414V | 3.8A | 1500W (1.5kW) | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
NSPM2051MUT5GTVS DIODE 5VWM 10.5VC 2UDFN |
139,836 |
|
Datasheet |
2-UDFN | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V (Max) | 5.1V | 10.5V | 100A (8/20µs) | - | No | General Purpose | 380pF @ 1MHz (Max) | -65°C ~ 150°C (TJ) | - | - | Surface Mount | 2-UDFN (1.6x1) |
|

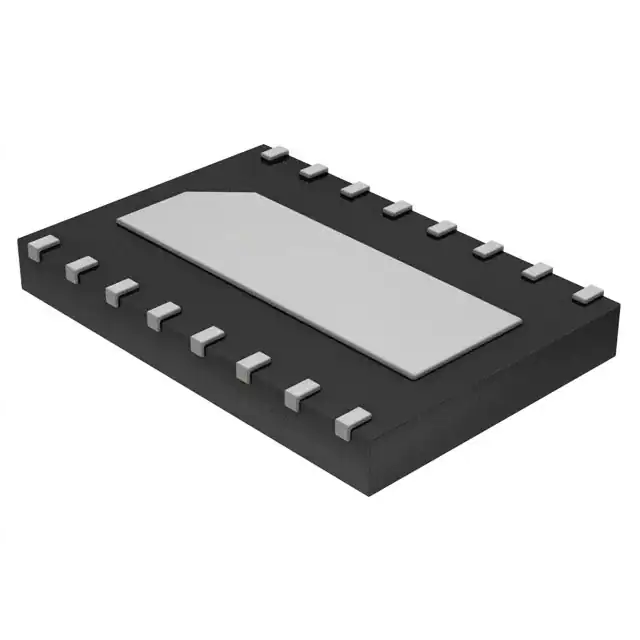

CM1234-08DETVS DIODE 5.5VWM 9VC 16WDFN |
5,691 |
|
Datasheet |
16-WDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 8 | - | 5.5V (Max) | 6V | 9V (Typ) | 1A (8/20µs) | - | Yes | HDMI | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-WDFN (6x4) |
|
|
NSPM0061MUT5GTVS DIODE 6.3VWM 11.5VC 2UDFN |
6,308 |
|
Datasheet |
2-UDFN | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 6.3V (Max) | 6.5V | 11.5V | - | - | No | General Purpose | 12pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | 2-UDFN (1.6x1) |
|
SMCJ36CATVS DIODE 36VWM 58.1VC SMC |
10,605 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 25.9A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
HZM6.8MFATR-ETRANS VOLTAGE SUPPRESSOR DIODE |
6,619 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NUP2105LSOT-23 ESD PROTECTION DEVICES RO |
3,820 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | UMW | Tape & Reel (TR) | Active | Zener | - | 2 | 24V | 26.2V | 44V | 8A (8/20µs) | 350W | No | - | 30pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | Automotive | - | Surface Mount | SOT-23-3 (TO-236) |
|
P6KE11CATVS DO15 9.4V 600W BIDIR |
3,583 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 2 | 9.4V | 10.5V | 15.6V | 38A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|
SMBJ8.5A-TPTVS DIODE 8.5VWM 14.4VC DO214AA |
2,975 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 41.7A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
1SMB20CAT3TVS DIODE 20VWM 32.4VC SMB |
4,466 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 20V | 22.2V | 32.4V | 18.5A | 600W | No | General Purpose | 425pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
EMZC6.8NTLTVS DIODE 3.5VWM EMD3 |
1,404 |
|
Datasheet |
SC-75, SOT-416 | - | Tape & Reel (TR) | Not For New Designs | Zener | 2 | - | 3.5V | 6.65V | - | - | - | No | General Purpose | 3pF @ 1MHz | - | - | - | Surface Mount | EMD3 |
