TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PJEC24MTA_R1_00001LOW CAPACITANCE DOUBLE BIDIRECTI |
2,500 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 25.4V | 50V | 4A (8/20µs) | - | No | General Purpose | 11pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
SMF18AHRVGTVS DIODE 18VWM 29.2VC SOD123W |
1,526 |
|
Datasheet |
SOD-123W | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20V | 29.2V | 6.8A | 200W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
SMAJ12AHR3GTVS DIODE 12VWM 19.9VC DO214AC |
1,458 |
|
- |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 12V | 13.3V | 19.9V | 20.1A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMF15AHRVGTVS DIODE 15VWM 24.4VC SOD123W |
1,120 |
|
Datasheet |
SOD-123W | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 8.2A | 200W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
SZESD5Z5.0T1GESD PROTECTION DIODE, SOD-523 |
7,012 |
|
- |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.2V | 18.6V | 9.4A | 240W | No | General Purpose | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
T3V3S5-7TVS DIODE 3.3VWM 16VC SOD523 |
37,045 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 3.3V | 5V | 16V | 16A (8/20µs) | 220W | No | General Purpose | 85pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
SP1054-01UTGTVS DIODE 6VWM 13VC 01005 |
20,060 |
|
Datasheet |
01005 (0402 Metric) | SP1054, SPA® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 6V (Max) | 6.5V | 13V | 2A (8/20µs) | - | No | - | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | 01005/DFN |
|
SMBJE20AHTVS DIODE 20VWM UNI |
3,000 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 18.6A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
AZ1743-04FLOW CAP ESD HIGH SPEED 4-CH 3.3V |
2,950 |
|
Datasheet |
5-XFDFN | - | Strip | Active | Zener | 4 | - | 3.3V (Max) | 4.5V | - | - | - | No | HDMI | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1308P5Z |
|
RSB39F2FHT106TVS DIODE 30VWM UMD3 |
2,919 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 30V | - | - | - | - | No | - | 30pF @ 1MHz (Max) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | UMD3 |
|
P4KE180ATVS DO15 154V 400W UNIDIR |
2,696 |
|
Datasheet |
DO-204AL, DO-41, Axial | P4KE | Tape & Reel (TR) | Active | Zener | 1 | - | 154V | 171V | 246V | 1.7A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AL (DO-41) |
|

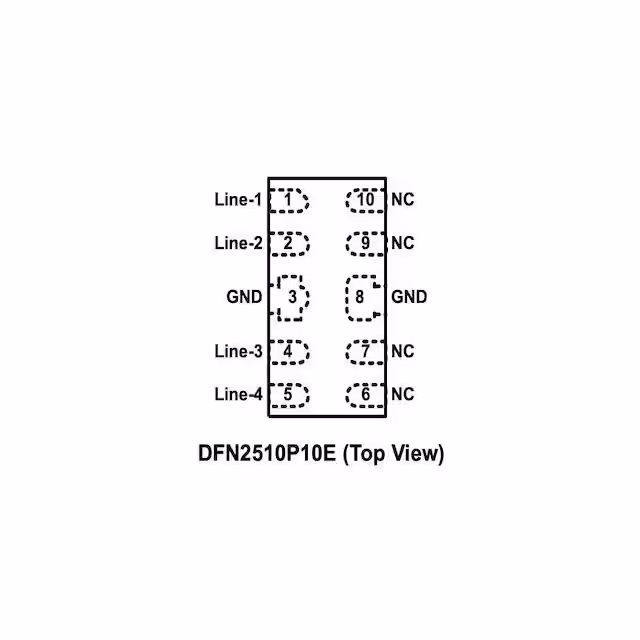

AZ1213-04FLOW CAP ESD HIGH SPEED 4-CH 3.3V |
2,440 |
|
Datasheet |
10-UFDFN | - | Strip | Active | Zener | 4 | - | 3.3V (Max) | 5V | - | - | - | No | LVDS | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN2510P10E |
|
1.5KE33CATVS DIODE 28.2VWM 45.7VC DO201 |
6,250 |
|
Datasheet |
DO-201AA, DO-27, Axial | 1.5KE6.8C | Tape & Reel (TR) | Active | Zener | - | 1 | 28.2V | 31.4V | 45.7V | 33A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
ESD7471N2T5GTVS DIODE 5.3VWM 2XDFN |
7,792 |
|
Datasheet |
2-XDFN | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5.3V (Max) | 7V | - | - | - | No | RF Antenna | 0.24pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 2-XDFN (1x0.6) (SOD-882) |
|
CM1213A-04S7TVS DIODE 3.3VWM 10V SC88/SC70-6 |
7,927 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 3.3V | 6V | 10V (Typ) | 1A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
PESD18VF1BSFYLTVS DIODE 18VWM 16VC DSN0603-2 |
39,535 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 18V (Max) | 19V | 16V | 1A (8/20µs) | - | No | General Purpose | 0.28pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DSN0603-2 |
|
|
ESD7451N2T5GTVS DIODE 3.3VWM 2XDFN |
6,257 |
|
Datasheet |
2-XDFN | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 3.3V (Max) | 6V (Typ) | - | - | - | No | RF Antenna | 0.25pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 2-XDFN (1x0.6) (SOD-882) |
|
ESD8351P2T5GTVS DIODE 3.3VWM 11.2VC SOD923 |
14,173 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 3.3V (Max) | 5.5V | 11.2V | 5A (8/20µs) | - | No | General Purpose | 0.37pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-923 |
|
|
SZNUP2124MXWTBG28V CAN-FD ESD PROTECTION IN WDF |
13,514 |
|
Datasheet |
3-XFDFN | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 26V | 40V | 3A (8/20µs) | 120W | No | - | 6pF @ 1MHz (Max) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 3-XDFNW (1x1) |
|
3.0SMCJ14ATVS, UNI-DIR, 3000W, 14V, DO-214 |
11,994 |
|
Datasheet |
DO-214AB, SMC | 3.0SMCJx | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 129.4A | 3000W (3kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
