TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
P4KE18CA_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
5,000 |
|
Datasheet |
DO-204AL, DO-41, Axial | P4KE | Tape & Reel (TR) | Active | Zener | - | 1 | 15.3V | 17.1V | 25.2V | 17A | 400W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-41 |
|
P4KE16A_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
4,989 |
|
Datasheet |
DO-204AL, DO-41, Axial | P4KE | Tape & Reel (TR) | Active | Zener | 1 | - | 13.6V | 15.2V | 22.5V | 19A | 400W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-41 |
|
SMF7.5A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
3,000 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.3V | 12.9V | 15.5A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF58A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
3,000 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 2.1A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
PJSOT12_R1_00001STANDARD CAPACITANCE TVS ARRAY |
3,000 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13.3V | 19V | 21A (8/20µs) | 500W | No | General Purpose | 200pF @ 1MHz (Max) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
PESD2CANFD27UU-QXPESD2CANFD27UU-Q/SOT323/SC-70 |
2,985 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 26.2V | 41V | 5A (8/20µs) | 230W | No | CAN | 25pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-23 |
|
SMAJ13AHR3GTVS DIODE 13VWM 21.5VC DO214AC |
2,970 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 13V | 14.4V | 21.5V | 18.6A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|

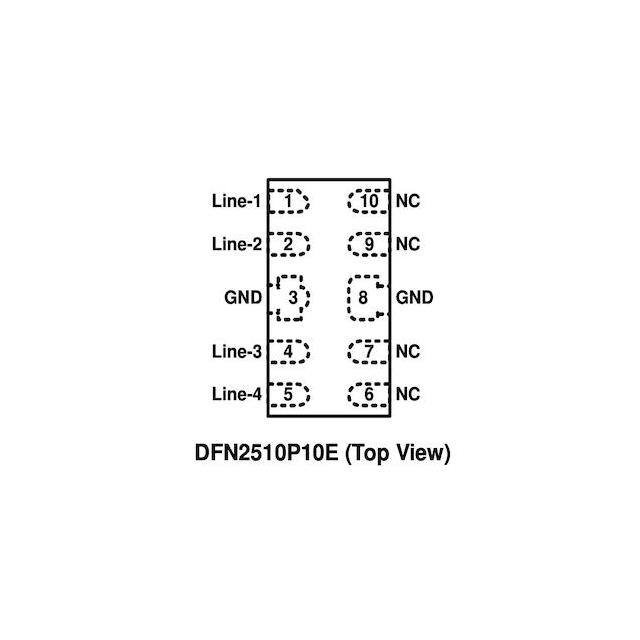

AZ1243-04FLOW CAP ESD HIGH SPEED 4-CH 3.3V |
2,950 |
|
Datasheet |
10-UFDFN | - | Strip | Active | Zener | 4 | - | 3.3V (Max) | 4.5V | - | - | - | No | HDMI | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN2510P10E |
|
AZ3705-01FTVS SURGE PROTECTOR 1-CH 4.5V |
2,950 |
|
Datasheet |
3-UDFN Exposed Pad | - | Strip | Active | Zener | - | 1 | 4.5V (Max) | 5V | - | - | - | Yes | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN2020P3E |
|
FTZ4.3EFHT148TVS DIODE 1VWM SMD5 |
2,720 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Not For New Designs | Steering (Rail to Rail) | 4 | - | 1V (Max) | 4.04V | - | - | - | No | - | - | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMD5 |
|
SMF28A RVGTVS DIODE 28VWM 45.4VC SOD123W |
2,432 |
|
Datasheet |
SOD-123W | - | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 4.4A | 200W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SOD-123W |
|
|
FTZ30EFHT148TVS DIODE 23VWM SMD5 |
1,990 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Not For New Designs | Steering (Rail to Rail) | 4 | - | 23V (Max) | 29.19V | - | - | - | No | - | - | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMD5 |
|
SMA6S51AHTVS DIODE 51VWM 82.8VC SOD128 |
1,786 |
|
Datasheet |
SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 51V | 57V | 82.8V | 7.2A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-128 |
|
|
SMF48A RVGTVS DIODE 48VWM 77.4VC SOD123W |
1,402 |
|
Datasheet |
SOD-123W | - | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 2.6A | 200W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SOD-123W |
|
SP1212-01ETGTVS DIODE 5VWM 9.7VC SOD882 |
1,258 |
|
Datasheet |
SOD-882 | SP1212, SPA® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V (Max) | 7V (Typ) | 9.7V (Typ) | 12A (8/20µs) | 250W | No | - | 290pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|
CPDQR5V0-HFTVS DIODE 5VWM 16VC 0402/SOD923F |
1,077 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Last Time Buy | Zener | - | 1 | 5V | 5.1V | 16V | 5A (8/20µs) | 75W | No | General Purpose | 15pF @ 1MHz | - | - | - | Surface Mount | 0402/SOD-923F |
|
ESD5482MUT5GTVS DIODE 3.3VWM 7.8VC 2X3DFN |
8,812 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 3.3V (Max) | 5V | 7.8V | 1A (8/20µs) | - | No | General Purpose | 5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 2-X3DFN (0.6x0.3) (0201) |
|

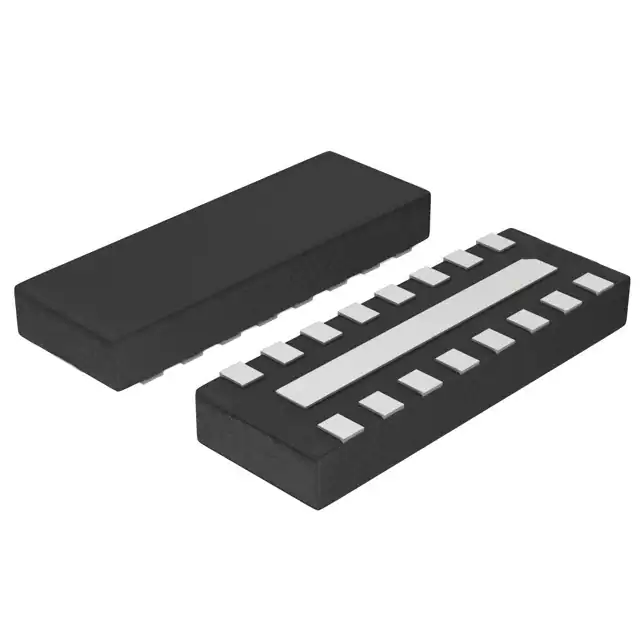

CM1235-08DETVS DIODE 5.5VWM 9.2VC 16WDFN |
3,859 |
|
Datasheet |
16-WFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 8 | - | 5.5V (Max) | 6V | 9.2V (Typ) | 1A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-WDFN (4x1.7) |
|
BZA868AL,115TVS DIODE 6.8VWM 5TSSOP |
6,858 |
|
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 6.8V | - | - | - | 14W | No | General Purpose | 180pF @ 1MHz | - | - | - | Surface Mount | 5-TSSOP |
|
RSB6.8JS2FHT2RTVS DIODE 3.5VWM EMD6 |
7,970 |
|
Datasheet |
SOT-563, SOT-666 | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 2 | 3.5V | 6V | - | - | - | No | - | 1pF @ 1MHz | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | EMD6 |
