TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMF22A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
3,950 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 5.6A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
SMBJ45CATVS DIODE 45VWM 72.7VC SMB |
3,080 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 45V | 50V | 72.7V | 8.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMBJE16CATVS DIODE 16VWM 26VC SMB |
3,000 |
|
Datasheet |
DO-214AA, SMB | SMBJE | Tape & Reel (TR) | Active | Zener | - | 1 | 16V | 17.8V | 26V | 23.1A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMBJ12CATVS DIODE 12VWM 19.9VC SMB |
3,000 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 30.2A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|

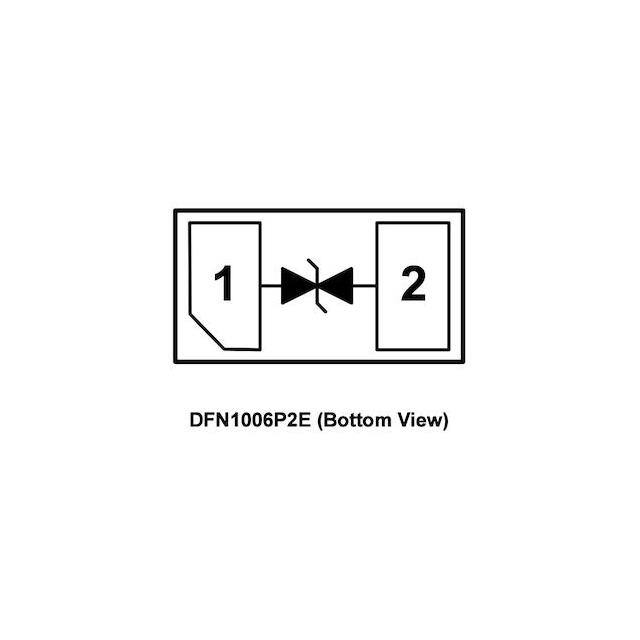

AZ5323-01FTVS DEVICE 1-CHANNEL 3.3V |
2,990 |
|
Datasheet |
0402 (1006 Metric) | - | Strip | Active | Zener | - | 1 | 3.3V (Max) | 4.5V | - | - | - | No | USB | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1006P2E |
|

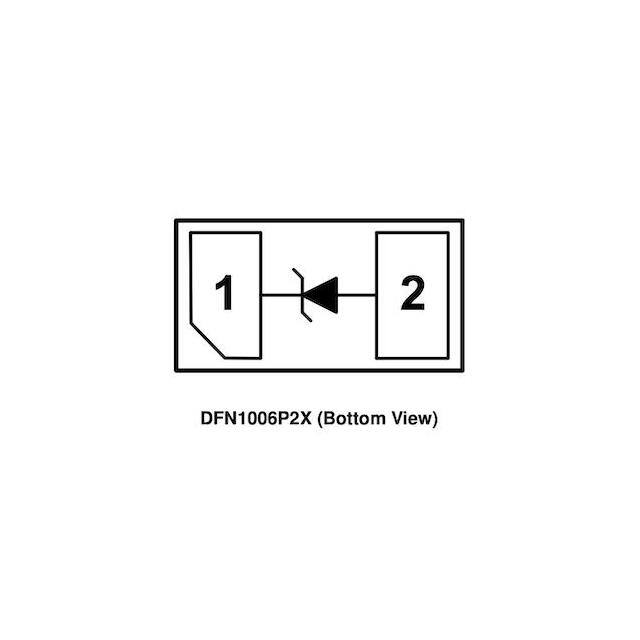

AZ4107-01FTVS DEVICE HIGH VOLTAGE 1-CH 7V |
2,980 |
|
Datasheet |
0402 (1006 Metric) | - | Strip | Active | Zener | 1 | - | 7V (Max) | 8V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1006P2X |
|

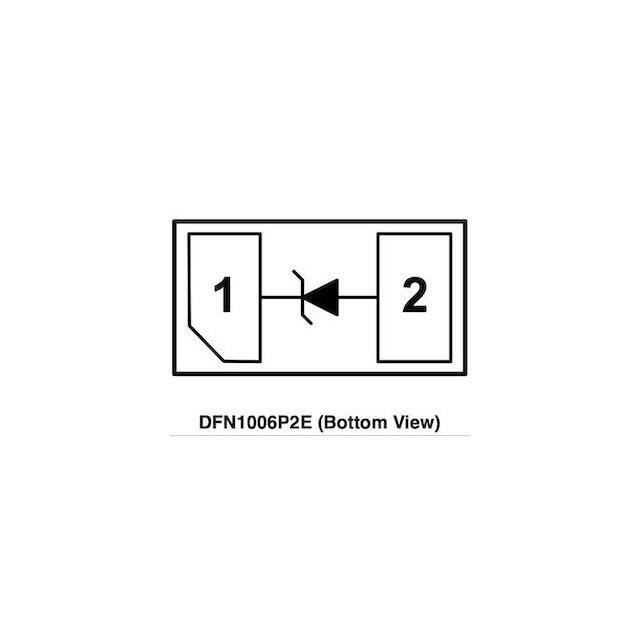

AZ5413-01FTVS DEVICE 1-CHANNEL 3.3V |
2,980 |
|
Datasheet |
0402 (1006 Metric) | - | Strip | Active | Zener | 1 | - | 3.3V (Max) | 5V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1006P2E |
|

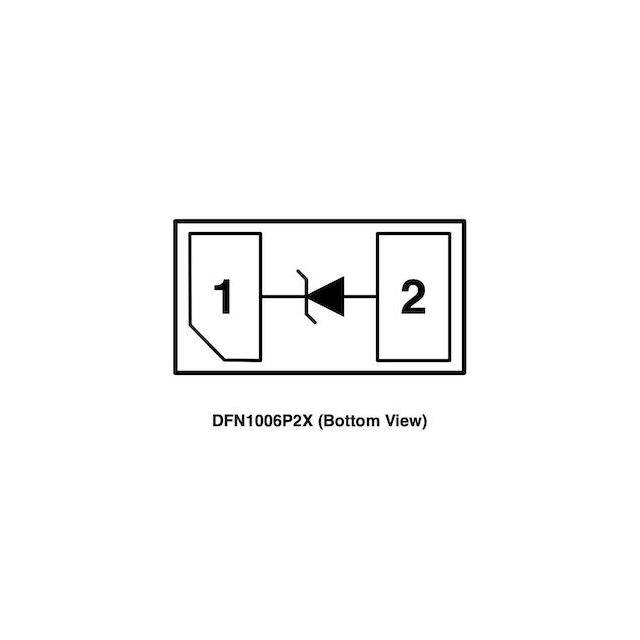

AZ5015-01FTVS DEVICE 1-CHANNEL 5V |
2,970 |
|
Datasheet |
0402 (1006 Metric) | - | Strip | Active | Zener | 1 | - | 5V (Max) | 5.8V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1006P2X |
|

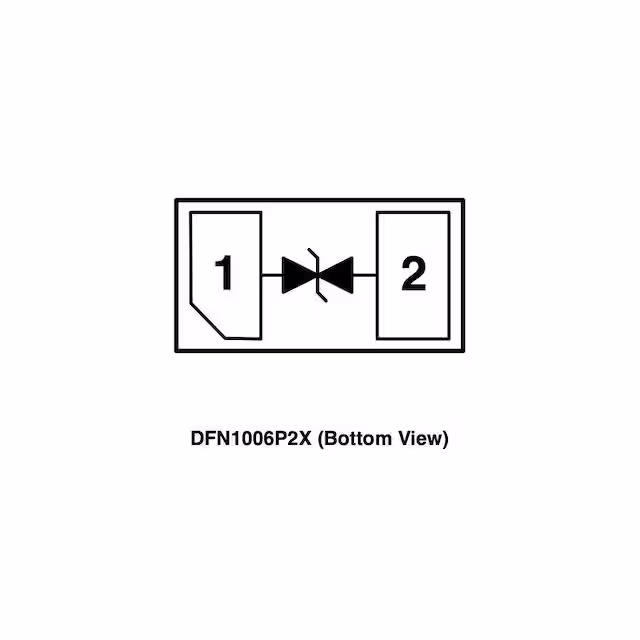

AZ5725-01FTVS DEVICE 1-CHANNEL 5V |
2,920 |
|
Datasheet |
0402 (1006 Metric) | - | Strip | Active | Zener | - | 1 | 5V (Max) | 5.8V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1006P2X |
|

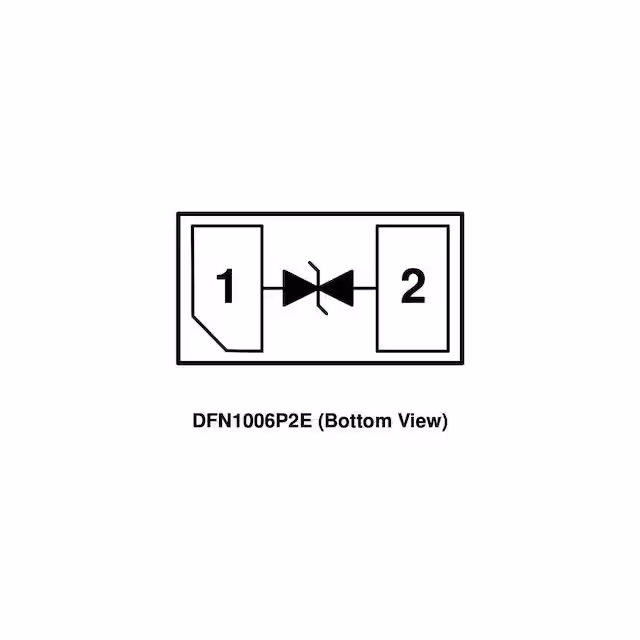

AZ522S-01FTVS DEVICE 1-CHANNEL 2V |
2,900 |
|
Datasheet |
0402 (1006 Metric) | - | Strip | Active | Zener | - | 1 | 2V (Max) | 5.5V | - | - | - | No | Ethernet | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN1006P2E |
|
SMBJ6.5CATVS DIODE 6.5VWM 11.2VC SMB |
2,900 |
|
Datasheet |
DO-214AA, SMB | - | Cut Tape (CT) | Active | Zener | - | 1 | 6.5V | 7.22V | 11.2V | 53.6A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
SMBJ33ATVS DIODE 33VWM 53.3VC SMB |
2,735 |
|
Datasheet |
DO-214AC, SMA | - | Cut Tape (CT) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 11.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
SA40A/BSA, DO-204AC, 40V, 64.5V, BOX |
2,000 |
|
Datasheet |
DO-204AC, DO-15, Axial | SA | Cut Tape (CT) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 7.9A | 500W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
SMBJ15CATVS DIODE 15VWM 24.4VC SMB |
1,990 |
|
Datasheet |
DO-214AA, SMB | - | Cut Tape (CT) | Active | Zener | - | 1 | 15V | 16.7V | 24.4V | 24.6A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
SMBJ30CATVS DIODE 30VWM 48.4VC SMB |
1,927 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 12.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
P4SMAJ26CA-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
1,395 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 26V | 28.9V | 42.1V | 9.5A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
ESDR0544MDMR4GTVS DIODE 5VWM 10MICRO |
2,754 |
|
Datasheet |
10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | - | - | - | Yes | HDMI | 0.7pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 10-Micro |
|
SMAJ9.0CATVS DIODE 9VWM 15.4VC |
5,200 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | - | 1 | 9V | 10V | 15.4V | 25.97A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
VCAN26B2-03GHE3-08ESD PROTECTION DIODE SOT323 |
43,430 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Obsolete | Zener | - | 2 | 26.5V (Max) | 28V | 50V | 2A (8/20µs) | 100W | No | CAN | 4pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
ESD204B102ELSE6327XTSA1TVS DIODE 14VWM 28VC TSSLP-2-3 |
7,573 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 14V (Max) | 8.5V | 28V | 1A (8/20µs) | - | No | General Purpose | 4pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSSLP-2-3 |
