TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

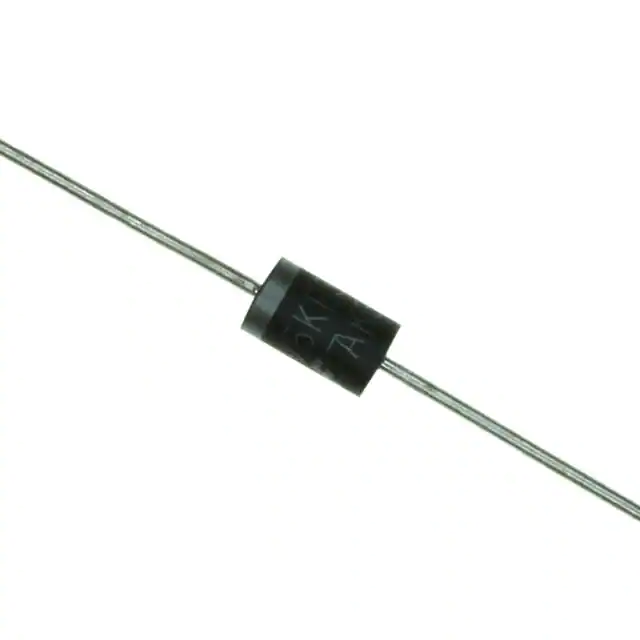

1V5KE170CATVS DIODE 145VWM 234VC DO201AE |
1,499 |
|
Datasheet |
DO-201AE, Axial | - | Bulk | Active | Zener | - | 1 | 145V | 162V | 234V | 6.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
|
SMBJ6.0CATVS DIODE 6VWM 10.3VC SMB |
1,440 |
|
Datasheet |
DO-214AA, SMB | - | Cut Tape (CT) | Active | Zener | - | 1 | 6V | 6.67V | 10.3V | 58.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SD12CTVS DIODE 12VWM 24VC SOD323 |
1,101 |
|
Datasheet |
SC-76, SOD-323 | SDxxC | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13.3V | 24V | 24A (8/20µs) | 350W | Yes | General Purpose | 100pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
P6SMB39CATVS DIODE 33.3VWM 53.9VC |
11,760 |
|
Datasheet |
DO-214AA (SMB) | P6SMB | Strip | Active | Zener | - | 1 | 33.3V | 37.05V | 53.9V | 11.13A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMBJ90CATVS DIODE 90VWM 146VC |
3,100 |
|
Datasheet |
DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 90V | 100V | 146V | 4.11A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
BZW06-273BTVS DO15 273V 600W UNIDIR |
4,000 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Tape & Box (TB) | Active | Zener | - | 1 | 273V | 304V | 438V | 1.6A | 600W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
BZW06-188BTVS DO15 188V 600W UNIDIR |
4,000 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Tape & Box (TB) | Active | Zener | - | 1 | 188V | 209V | 301V | 2A | 600W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
P4KE400CATVS DO-15 342V 400W BIDIR |
4,000 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Tape & Box (TB) | Active | Zener | - | 1 | 342V | 380V | 548V | 760mA | 400W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
1.5KE47CATVS 1500W 47Vbr Bi-Dir DO-201AE |
1,595 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1.5KE15CATVS 1500W 15Vbr Bi-Dir DO-201AE |
1,595 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SMCJ100ATRANS VOLTAGE SUPPRESSOR DIODE, |
27,201 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Bulk | Active | Zener | 1 | - | 100V | 111V | 162V | 9.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
SMAJ150ATVS DIODE 150VWM 243VC |
10,180 |
|
Datasheet |
DO-214AC (SMA) | SMAJ | Strip | Active | Zener | 1 | - | 150V | 167V | 243V | 1.65A | 400W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
PESD4V0C1BSFYLTVS DIODE |
9,000 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SMF6.0A_R1_00001SOD-123FL, TVS |
8,980 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.7V | 10.3V | 19.4A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
SMCJ22ATRANS VOLTAGE SUPPRESSOR DIODE, |
5,900 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Bulk | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 42.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
SMBJ75ATVS DIODE 75VWM 121VC SMB |
5,841 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 75V | 83.3V | 121V | 4.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMAJE51AHTVS DIODE 51VWM UNI |
5,000 |
|
Datasheet |
DO-214AC, SMA | SMAJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 51V | 56.7V | 82.4V | 4.9A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
GSEP12U005TVS, UNI-DIR, 100W, 5V, DFN1616 |
5,000 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max), 12V (Max) | 6.5V, 12.5V | 20V | 5A (8/20µs), 12A (8/20µs) | 100W, 300W | Yes | USB | 0.8pF @ 1MHz (Max), 100pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1616 |
|
AZ5123-01FTVS DEVICE 1-CHANNEL 3.3V |
4,930 |
|
Datasheet |
0402 (1006 Metric) | - | Strip | Active | Zener | - | 1 | 3.3V (Max) | 4V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1006P2X |
|
PJEC2415VM1WS_R1_00001ESD PROTECTION |
4,875 |
|
Datasheet |
SC-90, SOD-323F | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max), 15V (Max) | 25.4V, 17.1V | 50V, 35V | 3A (8/20µs), 5A (8/20µs) | 160W | No | General Purpose | 13pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
