TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
15KPA120CATVS DIODE 120VWM 192.3VC P600 |
6,098 |
|
Datasheet |
P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | - | 1 | 120V | 134V | 192.3V | 78.5A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
1N6055ATVS DIODE 40VWM 64.8VC DO13 |
3,996 |
|
Datasheet |
DO-13 | - | Bulk | Active | Zener | - | 1 | 40V | 44.7V | 64.8V | 23.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-13 |
|
MPLAD30KP33CA/TRTVS DIODE 33VWM 53.3VC PLAD |
4,388 |
|
Datasheet |
Nonstandard SMD | - | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 564A | 30000W (30kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | PLAD |
|
DF3A6.2LFV,L3FTVS DIODE VESM |
9,647 |
|
Datasheet |
SOT-723 | - | Tape & Reel (TR) | Active | Zener | 2 | - | - | 5.9V | - | - | - | No | General Purpose | 6.5pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | VESM |
|

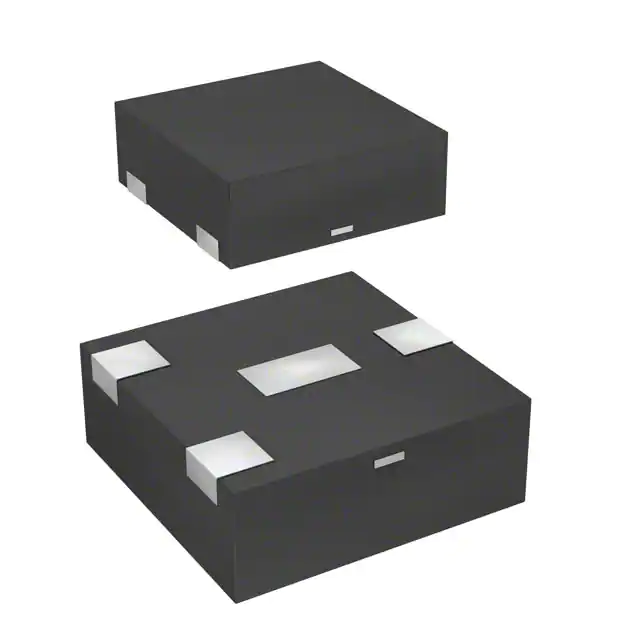

VBUS052BD-HTF-GS08TVS DIODE 5VWM 16VC 4-LLP75 |
3,740 |
|
Datasheet |
4-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6.9V | 16V | 3A (8/20µs) | 45W | No | General Purpose | 1.5pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-LLP75 |
.jpg)
|
SMCJ1.5KE56A-TPTVS DIODE 47.8VWM 77VC DO214AB |
9,069 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 47.8V | 53.2V | 77V | 19.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
P4SMF17ATVS DIODE 17VWM 27.6VC SOD123FL |
6,404 |
|
Datasheet |
SOD-123F | P4SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 14.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
B74121G0200M06020VDC,0201,BI-DIR,5.3PF, 20NA@20 |
2,816 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 20V (Max) | 20V | 32V (Typ) | 16A | - | No | Telecom | 5.3pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | WL-CSP0201 SL |
|
|
P4SMF22CATVS DIODE 22VWM 35.5VC SOD123FL |
4,070 |
|
Datasheet |
SOD-123F | P4SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 11.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
SMAJ8.0CATVS DIODE 8VWM 13.6VC DO214AC |
4,334 |
|
Datasheet |
DO-214AC, SMA | WE-TVSP | Tape & Reel (TR) | Active | Zener | - | 1 | 8V (Max) | 9.36V (Typ) | 13.6V | 29.4A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC |
|
VBUS05N1-HD1-G3-085.5V;IR=0.1UA;IP=4A;P=90W;CD=0.4 |
1,712 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 7V | 15V | 4A (8/20µs) | 60W | No | HDMI, USB | 0.7pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2A |
|
STN101050BL90TVS DIODE 5VWM 12.5VC DFN1006-2L |
8,868 |
|
Datasheet |
0402 (1006 Metric) | ST | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 12.5V | 1A (8/20µs) | 30W | No | DVI, USB | 0.9pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006-2L |
|
|
VESD03C1-HD1-G3-083V;IR=20UA;IP=11.6A;P=W;CD=135PF |
9,893 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3V (Max) | 4.45V | 8.7V | 11.6A (8/20µs) | 100W | No | General Purpose | 112pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2A |
|
PESD8V0S1ULSYLTVS DIODE 8VWM 25.5VC 2DFN |
3,363 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 8V (Max) | 8.65V | 25.5V | 13A (8/20µs) | - | No | - | 70pF @ 1MHz | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN1006BD-2 |
|
824520121TVS DIODE 12VWM 19.9VC DO214AA |
1,489 |
|
Datasheet |
DO-214AA, SMB | WE-TVSP | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 14V (Typ) | 19.9V | 30.2A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA |
|
|
824521261TVS DIODE 26VWM 42.1VC DO214AA |
1,175 |
|
Datasheet |
DO-214AA, SMB | WE-TVSP | Tape & Reel (TR) | Active | Zener | - | 1 | 26V (Max) | 30.4V (Typ) | 42.1V | 14.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA |
|
|
824520102TVS DIODE 100VWM 162VC DO214AA |
4,860 |
|
Datasheet |
DO-214AA, SMB | WE-TVSP | Tape & Reel (TR) | Active | Zener | 1 | - | 100V (Max) | 117V (Typ) | 162V | 3.7A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA |
|
SMAJE33CATVS DIODE 33VWM 53.3VC SMA |
8,624 |
|
Datasheet |
DO-214AC, SMA | SMAJE | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 7.5A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
SMAJ100A-E3/61TVS DIODE 100VWM 162VC DO214AC |
3,617 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 100V | 111V | 162V | 1.9A | 300W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
PESD5V0L1ULSYLTVS DIODE 5VWM 12VC DFN1006-2 |
3,851 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.4V | 12V | 3.5A (8/20µs) | 42W | No | Telecom | 25pF @ 1MHz | -55°C ~ 150°C (TA) | - | - | Surface Mount | DFN1006-2 |
