TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBJ440ATVS DIODE 440VWM 713VC DO214AA |
1,222 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 440V | 492V | 713V | 1.1A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
TPSMA6L7.5ATVS DIODE 7.5VWM 12.9VC DO221AC |
6,214 |
|
Datasheet |
DO-221AC, SMA Flat Leads | TPSMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 46.6A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-221AC |
|
CUHZ36V,H3F36 V ZENER DIODE, SOD-323HE |
8,732 |
|
Datasheet |
2-SMD, Flat Leads | CUHZ | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 34V | 41.2V (Typ) | 23A (8/20µs) | 2100W (2.1kW) | No | General Purpose | 105pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | US2H |
|
TPSMF4L51ATVS DIODE 51VWM 82.4VC SOD123FL |
3,599 |
|
Datasheet |
SOD-123F | TPSMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 51V | 56.7V | 82.4V | 4.9A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
|
TPSMF4L14ATVS DIODE 14VWM 23.2VC SOD123FL |
4,813 |
|
Datasheet |
SOD-123F | TPSMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 17.2A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
AQ3522-01FTGTVS DIODE 5VWM 18VC SOD323 |
7,018 |
|
Datasheet |
SC-76, SOD-323 | AQ3522, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 8.5V | 18V | 2.5A (8/20µs) | - | No | HDMI, USB | 0.15pF @ 3GHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
PESD3V3S5UD,125TVS DIODE 3.3VWM 12VC 6TSOP |
3,077 |
|
Datasheet |
SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Zener | 5 | - | 3.3V (Max) | 5.3V | 12V | 20A (8/20µs) | 200W | No | General Purpose | 215pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-TSOP |
|
PESD2ETH1G-TRTVS DIODE TO236AB |
6,897 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 1 | - | - | 100V | - | - | - | No | Ethernet | - | - | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
RCLAMP01811PW.C1,8V ESD & EOS PROTECTION |
3,429 |
|
Datasheet |
0402 (1006 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 1.8V (Max) | - | - | - | - | No | General Purpose | - | - | - | - | Surface Mount | 2-DFN (1x0.6) |
;;2.jpg)
|
SMCJ20ATVS DIODE 20VWM 32.4VC DO214AB |
2,456 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 46.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMBJP6KE12CA-TPTVS DIODE 10.2VWM 16.7VC DO214AA |
4,889 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 10.2V | 11.4V | 16.7V | 36.5A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
AQ4337-01ETG5V 7A 0.25F 15KV SOD882 BI-DIR T |
7,992 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 8V (Typ) | 6.5V (Typ) | 7A (8/20µs) | - | No | Ethernet, HDMI, USB | 0.25pF @ 1MHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|
1.5SMBJ30CADIO TVS VRWM 30V 1500W BIDIR SMB |
6,592 |
|
Datasheet |
DO-214AA, SMB | 1.5SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 31A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
1.5KE12CATVS D5.4X7.5 10.2V 1500W BIDIR |
6,986 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 10.2V | 11.4V | 16.7V | 90A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
SZSMF24AT1GTVS DIODE 24VWM 38.9VC SOD123FL |
5,152 |
|
Datasheet |
SOD-123F | SZSMF | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 5.1A | 200W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
|
TPSMF4L78ATVS DIODE 78VWM 126VC SOD123FL |
2,806 |
|
Datasheet |
SOD-123F | TPSMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 78V | 86.7V | 126V | 3.2A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
5.0SMDJ58CA/TR13TVS DIODE 58VWM 93.6VC DO214AB |
4,572 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 58V | 64.4V | 93.6V | 53.5A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|

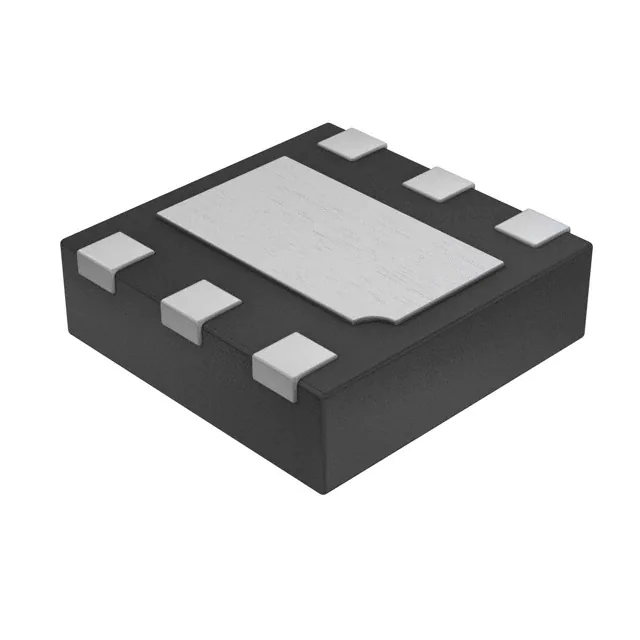

D5V0F3B6LP20-7TVS DIODE 5.5VWM 14V U-DFN2020-6 |
4,445 |
|
Datasheet |
6-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | - | 3 | 5.5V (Max) | 6V | 14V | 9.5A (8/20µs) | - | No | General Purpose | 0.5pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-6 (Type C) |
|
1.5KE33CA-TPTVS DIODE 28.2VWM 45.7VC DO201AE |
6,509 |
|
Datasheet |
DO-201AE, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 28.2V | 31.4V | 45.7V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
|
1.5KE15CATVS D5.4X7.5 12.8V 1500W BIDIR |
3,165 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Cut Tape (CT) | Active | Zener | - | 2 | 12.8V | 14.3V | 21.2V | 71A | 1500W (1.5kW) | Yes | General Purpose | 2500pF @ 1MHz | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
