Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
ACM3B5H-S(0.650C/W)Fin:15mm; Fan:5VDC/Tach |
1,868 |
|
Datasheet |
ACM3B | Tray | Active | Side Mount with Fan | - | Tape, Bolt On | Rectangular | 4.459" (113.50mm) | 3.543" (90.00mm) | - | 0.590" (15.00mm) | - | - | 0.65°C/W | Aluminum | - |
|
|
ACM4B5X(0.37C/W)Heat Sink w/ Fan on side |
2,237 |
|
- |
* | Tray | Active | Side Mount with Fan | - | Tape, Bolt On | Rectangular | 4.724" (120.00mm) | 3.268" (83.00mm) | - | 0.984" (25.00mm) | - | 0.37°C/W | - | Aluminum | Black Anodized |
|
|
ACM4B5X(0.34C/W)Heat Sink w/ Fan on side |
3,947 |
|
- |
* | Tray | Active | Side Mount with Fan | - | Tape, Bolt On | Rectangular | 4.724" (120.00mm) | 3.268" (83.00mm) | - | 1.181" (30.00mm) | - | 0.34°C/W | - | Aluminum | Black Anodized |
|
|
ACM4B5X(0.42C/W)Heat Sink w/ Fan on side |
4,025 |
|
- |
* | Tray | Active | Side Mount with Fan | - | Tape, Bolt On | Rectangular | 4.724" (120.00mm) | 3.268" (83.00mm) | - | 0.787" (20.00mm) | - | 0.42°C/W | - | Aluminum | Black Anodized |
|
|
ACM4B12X(0.54C/W)Low Profile 15mm Heat Sink w/ Fa |
3,283 |
|
Datasheet |
* | Tray | Active | Side Mount with Fan | - | Tape, Bolt On | Rectangular | 4.724" (120.00mm) | 3.268" (83.00mm) | - | 0.591" (15.00mm) | - | 0.54°C/W | - | Aluminum | Black Anodized |
|
SAR99ASX250MMEXTRUDED HEATSINK 124.7X250MM |
1,328 |
|
Datasheet |
99AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 9.843" (250.00mm) | 4.909" (124.70mm) | - | 5.339" (135.60mm) | - | - | - | Aluminum | Natural Anodized |
|
SAR365ASX250MMEXTRUDED HEATSINK 216X250MM |
3,875 |
|
Datasheet |
365AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 9.843" (250.00mm) | 8.504" (216.00mm) | - | 3.268" (83.00mm) | - | - | - | Aluminum | Natural Anodized |
|
|
SF6P4U-F002-A01AMD SP3 ILM and sTRX4 ILM 4U 280 |
2,070 |
|
Datasheet |
AMD SP3 and sTRX4 | Bulk | Active | Top Mount with Fan | AMD SP3 2U Active CPU Cooler, AMD sTRX4 4U Active CPU Cooler | Push Pin | Rectangular, Fins | 4.724" (120.00mm) | 3.740" (95.00mm) | - | 4.972" (126.30mm) | 280.0W @ 27.2°C | - | 0.10°C/W | Aluminum, Copper | - |
|
SAR167ASX500MMEXTRUDED HEATSINK 124.5X500MM |
2,391 |
|
Datasheet |
167AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 19.685" (500.00mm) | 4.902" (124.50mm) | - | 2.756" (70.00mm) | - | - | - | Aluminum | Natural Anodized |
|
SAR364ASX200MMEXTRUDED HEATSINK 364MM X 200MM |
3,332 |
|
Datasheet |
364AS | Box | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 7.874" (200.00mm) | 7.874" (200.00mm) | - | 2.815" (71.50mm) | - | - | - | Aluminum | Natural Anodized |
|
|
SAR99ASX300MMEXTRUDED HEATSINK 124.7MMX300MM |
4,488 |
|
Datasheet |
99AS | Box | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 4.909" (124.70mm) | - | 5.339" (135.60mm) | - | - | - | Aluminum | Natural Anodized |
|
|
SF4P2U-F007-A01Intel Socket 4189 Series 250W 2U |
3,122 |
|
Datasheet |
Intel Socket 4189 | Bulk | Active | Top Mount with Fan | Intel LGA4189 2U Active CPU Cooler | Push Pin | Rectangular, Fins | 4.449" (113.00mm) | 3.071" (78.00mm) | - | 2.519" (64.00mm) | 250.0W @ 30.47°C | - | 0.12°C/W | Aluminum, Copper | - |
|
|
SF6P4U-F003-A01Intel FCLGA 3647 Square ILM 4U |
2,670 |
|
Datasheet |
Intel FCLGA 3647 | Bulk | Active | Top Mount with Fan | Intel LGA3647 4U Active CPU Cooler | Push Pin | Rectangular, Fins | 4.161" (105.70mm) | 3.740" (95.00mm) | - | 4.972" (126.30mm) | 240.0W @ 31.82°C | - | 0.13°C/W | Aluminum, Copper | - |
|
|
iW-FSKALU-CLASLR-CU06RFSoC SOM Heatsink with Fan |
3,055 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SAR99ASX400MMEXTRUDED HEATSINK 124.7MMX400MM |
3,444 |
|
Datasheet |
99AS | Box | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 15.748" (400.00mm) | 4.909" (124.70mm) | - | 5.339" (135.60mm) | - | - | - | Aluminum | Natural Anodized |
|
|
SF6P4U-F004-A01Intel Socket 4189 Series 280W 4U |
1,733 |
|
Datasheet |
Intel Socket 4189 | Bulk | Active | Top Mount with Fan | Intel LGA4189 4U Active CPU Cooler | Push Pin | Rectangular, Fins | 4.449" (113.00mm) | 3.740" (95.00mm) | - | 4.972" (126.30mm) | 280.0W @ 30.89°C | - | 0.11°C/W | Aluminum, Copper | - |
|
V7236B1HEATSINK TO-220 19.05X13.21MM |
4,406 |
|
Datasheet |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.500" (12.70mm) | - | - | 24.00°C/W | Aluminum | Black Anodized |
|

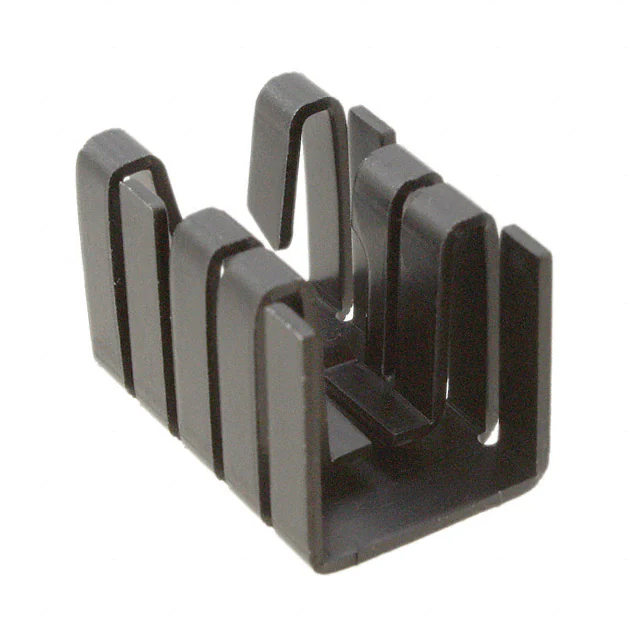

V8508AHEATSINK TO-220 19X12.80MM |
4,567 |
|
Datasheet |
- | Bulk | Active | Board Level | TO-220 | Press Fit | Rectangular, Fins | 0.748" (19.00mm) | 0.504" (12.80mm) | - | 0.500" (12.70mm) | 3.0W @ 60°C | 14.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
V8508BHEATSINK TO-220 19X12.8MM |
4,619 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Press Fit and PC Pin | Rectangular, Fins | 0.748" (19.00mm) | 0.504" (12.80mm) | - | 0.500" (12.70mm) | 2.0W @ 40°C | 8.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|

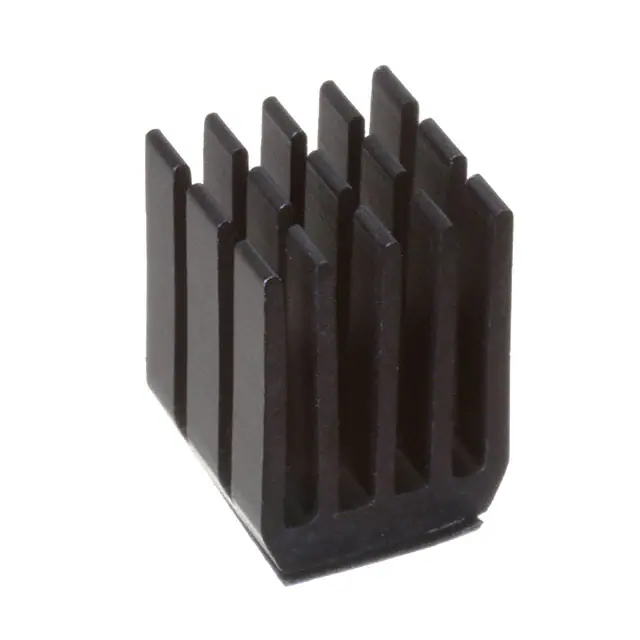

20188SILENTSTEPSTICK HEATSINK 9 X 9 X |
4,394 |
|
Datasheet |
- | Bulk | Active | Top Mount | Stepper Motor Driver Board | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.354" (9.00mm) | 0.354" (9.00mm) | - | 0.472" (12.00mm) | - | - | - | Aluminum | Black Anodized |
