Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
PM50-01 REV.ASINTERED W-CU HEAT SPREADER/THER |
2,819 |
|
Datasheet |
PM | Bag | Obsolete | - | - | - | Square | 1.969" (50.00mm) | 1.969" (50.00mm) | - | - | - | - | - | Copper Tungsten | Gold Plating |
|
HSF-50-19-Y-FFANSINK 5VDC 50X50X18.5MM |
4,108 |
|
Datasheet |
HSF | Bulk | Active | Top Mount | BGA | Clip | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.728" (18.50mm) | - | - | 1.31°C/W | Aluminum Alloy | Black Anodized |
|
|
HSF-50-19-B-FFANSINK 5VDC 50X50X18.5MM |
1,306 |
|
Datasheet |
HSF | Bulk | Active | Top Mount | BGA | Clip | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 1.555" (39.50mm) | - | - | 1.31°C/W | Aluminum Alloy | Black Anodized |
|
|
HSF-50-22-B-FFANSINK 5VDC 50X50X21.5MM |
4,076 |
|
Datasheet |
HSF | Bulk | Active | Top Mount | BGA | Clip | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.728" (18.50mm) | - | - | 1.06°C/W | Aluminum Alloy | Black Anodized |
|
|
HSF-50-30-B-FFANSINK 5VDC 50X50X29.5MM |
1,813 |
|
Datasheet |
HSF | Bulk | Active | Top Mount | BGA | Clip | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 1.083" (27.50mm) | - | - | 0.77°C/W | Aluminum Alloy | Black Anodized |
|
|
HSF-55-30-Y-FFANSINK 12VDC 55X55X30.1MM |
4,338 |
|
Datasheet |
HSF | Bulk | Active | Top Mount | BGA | Clip | Square, Fins | 2.165" (55.00mm) | 2.165" (55.00mm) | - | 1.185" (30.10mm) | - | - | 0.70°C/W | Aluminum Alloy | Black Anodized |
|
SZ12L+P+P581463.37X50MM AL PCI FANSINK 12V |
2,365 |
|
Datasheet |
- | Bulk | Active | Top Mount | PCI Express™ | Push Pin | Rectangular, Pin Fins | 2.495" (63.37mm) | 1.970" (50.00mm) | - | 0.413" (10.50mm) | - | - | 1.85°C/W | Aluminum | - |
|
SZ12L+B+P581463.37X50MM AL PCI FANSINK 12V |
2,181 |
|
Datasheet |
- | Bulk | Active | Top Mount | PCI Express™ | Push Pin | Rectangular, Pin Fins | 2.495" (63.37mm) | 1.970" (50.00mm) | - | 0.413" (10.50mm) | - | - | 1.85°C/W | Aluminum | - |
|
SZ05L+P+P581463.37X50MM AL PCI FANSINK 5V |
2,810 |
|
Datasheet |
- | Bulk | Active | Top Mount | PCI Express™ | Push Pin | Rectangular, Pin Fins | 2.495" (63.37mm) | 1.970" (50.00mm) | - | 0.413" (10.50mm) | - | - | 1.85°C/W | Aluminum | - |
|
SZ05L+B+P581463.37X50MM AL PCI FANSINK 5V |
1,544 |
|
Datasheet |
- | Bulk | Active | Top Mount | PCI Express™ | Push Pin | Rectangular, Pin Fins | 2.495" (63.37mm) | 1.970" (50.00mm) | - | 0.413" (10.50mm) | - | - | 1.85°C/W | Aluminum | - |
|

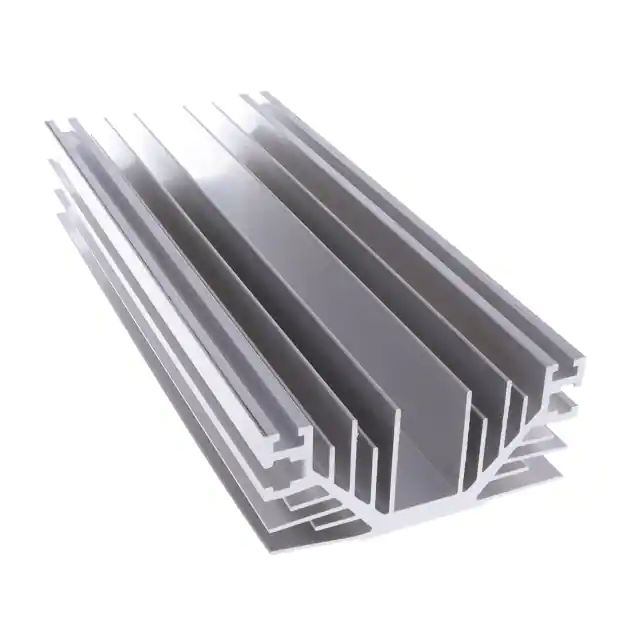

1255265WX12" EXTRUSION 16082 XX3560-2 |
4,501 |
|
Datasheet |
- | Box | Active | Board Level, Extrusion | SCR | Press Fit | Rectangular, Fins | 12.000" (304.80mm) | 5.000" (127.00mm) | - | 2.250" (57.15mm) | - | - | 0.35°C/W | Aluminum | - |
|
|
HSF-55-40-Y-FFANSINK 12VDC 55X55X40.1MM |
1,303 |
|
Datasheet |
HSF | Bulk | Active | Top Mount | BGA | Clip | Square, Fins | 2.165" (55.00mm) | 2.165" (55.00mm) | - | 1.579" (40.10mm) | - | - | 0.55°C/W | Aluminum Alloy | Black Anodized |
|
|
PM50-02 REV.ASINTERED W-CU HEAT SPREADER/THER |
1,182 |
|
Datasheet |
PM | Bag | Obsolete | - | - | - | Square | 1.969" (50.00mm) | 1.969" (50.00mm) | - | - | - | - | - | Copper Tungsten | Gold Plating |
|
782203B09000GHEATSINK EXTRUSION |
1,575 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HSF-48-22-B-FFANSINK 5VDC 47.5X47.5X21.5MM |
2,370 |
|
Datasheet |
HSF | Bulk | Active | Top Mount | BGA | Clip | Square, Fins | 1.870" (47.50mm) | 1.870" (47.50mm) | - | 0.846" (21.50mm) | - | - | 1.14°C/W | Aluminum Alloy | Black Anodized |
|
|
HSF-48-22-Y-FFANSINK 5VDC 47.5X47.5X21.5MM |
4,079 |
|
Datasheet |
HSF | Bulk | Active | Top Mount | BGA | Clip | Square, Fins | 1.870" (47.50mm) | 1.870" (47.50mm) | - | 1.382" (35.10mm) | - | - | 1.14°C/W | Aluminum Alloy | Black Anodized |
|
|
HSF-48-25-B-FFANSINK 5VDC 47.5X47.5X24.5MM |
4,571 |
|
Datasheet |
HSF | Bulk | Active | Top Mount | BGA | Clip | Square, Fins | 1.870" (47.50mm) | 1.870" (47.50mm) | - | 0.846" (21.50mm) | - | - | 0.98°C/W | Aluminum Alloy | Black Anodized |
|
|
HSF-50-22-Y-FFANSINK 5VDC 50X50X21.5MM |
2,513 |
|
Datasheet |
HSF | Bulk | Active | Top Mount | BGA | Clip | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.846" (21.50mm) | - | - | 1.06°C/W | Aluminum Alloy | Black Anodized |
|
|
HSF-50-25-B-FFANSINK 5VDC 50X50X24.5MM |
4,146 |
|
Datasheet |
HSF | Bulk | Active | Top Mount | BGA | Clip | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.846" (21.50mm) | - | - | 0.91°C/W | Aluminum Alloy | Black Anodized |
|
|
HSF-50-25-Y-FFANSINK 5VDC 50X50X24.5MM |
1,274 |
|
Datasheet |
HSF | Bulk | Active | Top Mount | BGA | Clip | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.965" (24.50mm) | - | - | 0.91°C/W | Aluminum Alloy | Black Anodized |
