Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B60-075-AEHEATSINK FOR TO-247 TO-264 |
4,303 |
|
Datasheet |
B60 | Box | Obsolete | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 2.950" (74.93mm) | 2.530" (64.26mm) | - | 1.610" (40.89mm) | - | - | - | Aluminum Alloy | Black Anodized |
|

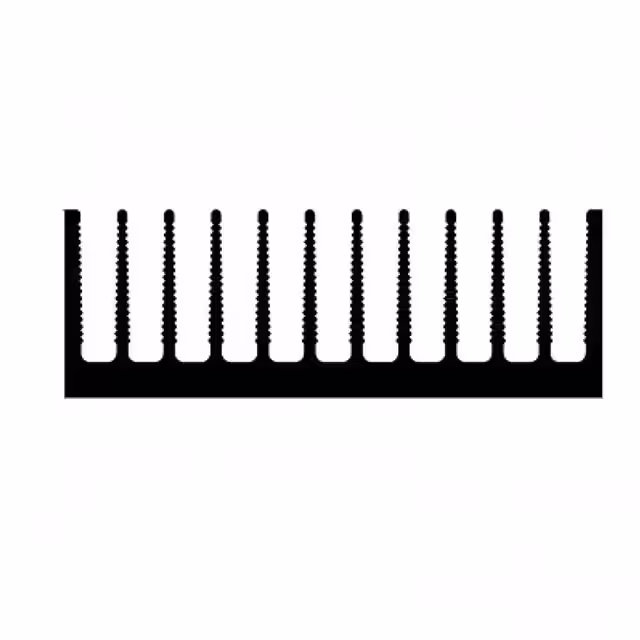

SAR114ASX150MMEXTRUDED HEATSINK 114X150MM |
4,272 |
|
Datasheet |
114AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 5.906" (150.00mm) | 4.504" (114.40mm) | - | 1.575" (40.00mm) | - | - | - | Aluminum | Natural Anodized |
|

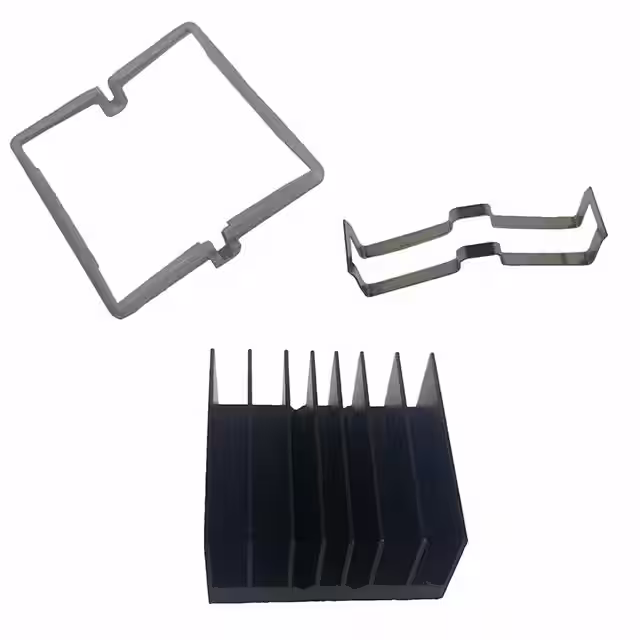

ATS-X53290K-C1-R0STR FIN 28.25X28.25X14.5MM T766 |
4,127 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
680-125AHEATSINK POWER TO-3 BLK |
3,818 |
|
Datasheet |
680 | Bulk | Active | Board Level | TO-3 | Bolt On | Square, Pin Fins | 1.810" (45.97mm) | 1.810" (45.97mm) | - | 1.250" (31.75mm) | 7.5W @ 45°C | 1.50°C/W @ 400 LFM | 6.00°C/W | Aluminum | Black Anodized |
|
ATS-X53170R-C1-R0STR FIN 16.25X16.25X19.5MM T766 |
2,204 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ATS-X51425R-C1-R0MAXIFLOW 41.75X41.75X19.5MM T766 |
100 |
|
Datasheet |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.673" (42.50mm) | 1.673" (42.50mm) | - | 0.768" (19.50mm) | - | 1.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
|
5-1542001-325MM HS ASSY CL |
2,011 |
|
Datasheet |
- | Box | Active | Top Mount | BGA | Clip | Cylindrical, Pin Fins | - | - | 2.000" (50.80mm) OD | 0.750" (19.05mm) | - | 4.55°C/W @ 200 LFM | 8.85°C/W | Aluminum | Black Anodized |
|
SAR120ASX300MMEXTRUDED HEATSINK 120X300MM |
2,018 |
|
Datasheet |
120AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 4.724" (120.00mm) | - | 1.079" (27.40mm) | - | - | - | Aluminum | Natural Anodized |
|

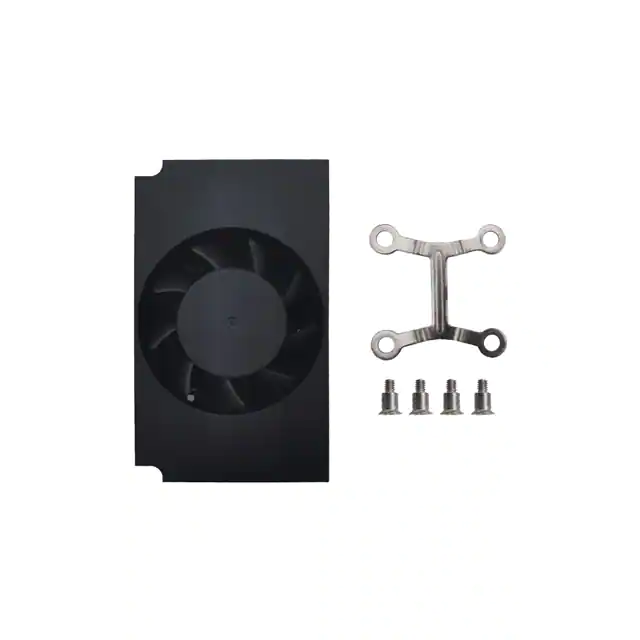

114992731ALUMINUM HEATSINK WITH FAN FOR J |
4,149 |
|
- |
- | Bulk | Discontinued at Digi-Key | Top Mount | Nvidia Jetson TX2 NX Module | Bolt On | Rectangular, Fins | 2.559" (65.00mm) | 1.535" (39.00mm) | - | 0.670" (17.00mm) | - | - | - | Aluminum | - |
|
|
CC-POLAR-03POLAR - LOW PROFILE CPU COOLER |
4,948 |
|
Datasheet |
- | Retail Package | Active | Top Mount with Fan | CPU | Push Pin | Cylindrical, Pin Fins | - | - | 3.543" (90.00mm) OD | 1.890" (48.00mm) | - | - | - | - | - |
|
|
IW-HSKALU-CLASLR-SS05I.MX 8MMINI/NANO SODIMM HEATSINK |
100 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IW-HSKALU-CLASLR-SS01I.MX 6 DL/S SODIMM SOM HEATSINK |
4,590 |
|
- |
- | Bulk | Active | Top Mount | CPU | Bolt On | Rectangular, Fins | 2.657" (67.50mm) | 1.240" (31.50mm) | - | - | - | - | - | Aluminum | - |
|
|
SAR114ASX250MMEXTRUDED HEATSINK 114X250MM |
2,571 |
|
Datasheet |
114AS | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 9.843" (250.00mm) | 4.504" (114.40mm) | - | 1.575" (40.00mm) | - | - | - | Aluminum | Natural Anodized |
|

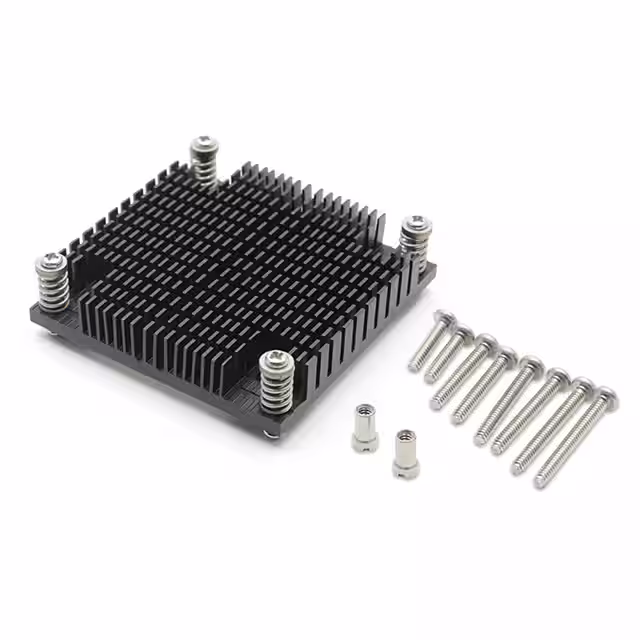

ATS-61700K-C2-R0FANSINK ASSEMBLY W/ MOUNTING HAR |
4,938 |
|
Datasheet |
fanSINK™ | Bulk | Active | Top Mount | BGA | Push Pin, Thermal Material | Square, Pin Fins | 2.913" (74.00mm) | 2.913" (74.00mm) | - | 0.571" (14.50mm) | - | - | - | - | - |
|
|
iW-HSPALU-CLASLR-SS06i.MX 8MMini SODIMM Heat Spreader |
2,025 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IW-HSKALU-CLASLR-SS03ZYNQ 7000 SODIMM SOM HEATSINK |
2,713 |
|
- |
- | Bulk | Active | Top Mount | - | Bolt On | Rectangular, Fins | 2.657" (67.50mm) | 1.240" (31.50mm) | - | - | - | - | - | Aluminum | - |
|
1-1542002-1HEAT SINK BGA 37.5MM 2FIN RADIAL |
1,488 |
|
Datasheet |
- | Tray | Obsolete | - | BGA | Clip | Cylindrical | - | - | 1.375" (34.92mm) OD | 0.357" (9.07mm) | - | 6.30°C/W @ 200 LFM | 12.00°C/W | Aluminum | Black Anodized |
|
IW-HSKALU-CLASLR-SC03I.MX 8QM SMARC SOM HEATSINK |
1,674 |
|
- |
- | Bulk | Active | Top Mount | - | Bolt On | Rectangular, Fins | 3.228" (82.00mm) | 1.654" (42.00mm) | - | 0.512" (13.00mm) | - | - | - | Aluminum | Clear, Anodized |
|

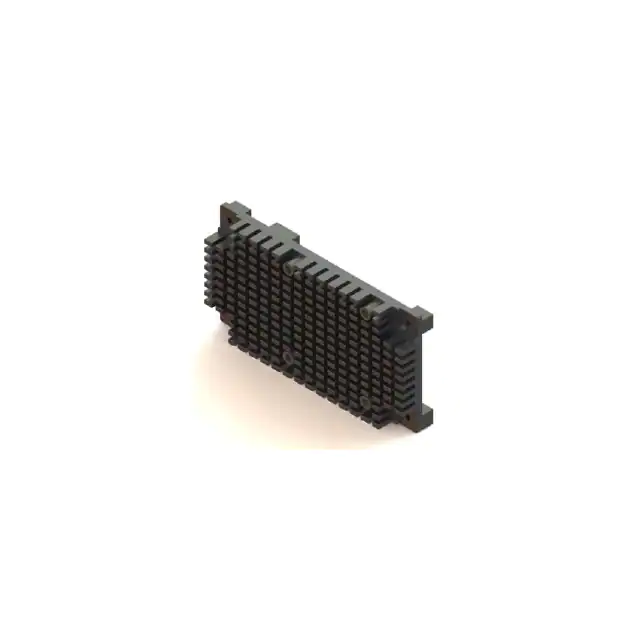

IW-HSKALU-CLASLR-SC02I.MX 8M SMARC SOM HEATSINK |
2,661 |
|
- |
- | Bulk | Active | Top Mount | - | Bolt On | Rectangular, Fins | 3.228" (82.00mm) | 1.654" (42.00mm) | - | 0.512" (13.00mm) | - | - | - | Aluminum | Clear, Anodized |
|

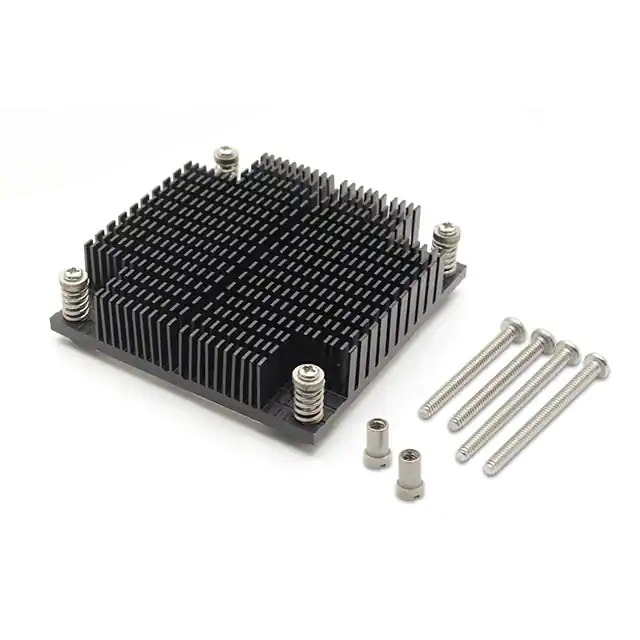

ATS-61800R-C2-R0FANSINK ASSEMBLY W/ MOUNTING HAR |
2,602 |
|
Datasheet |
fanSINK™ | Bulk | Active | Top Mount | BGA | Push Pin, Thermal Material | Square, Pin Fins | 3.307" (84.00mm) | 3.307" (84.00mm) | - | 0.768" (19.50mm) | - | - | - | - | - |
