Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

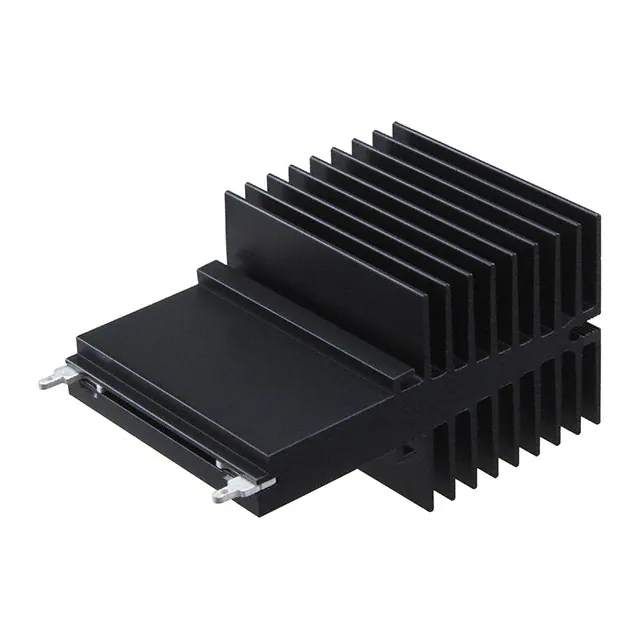

OMNI-UNI-40-50-DHEATSINK TO-247 TO-264 TO-220 |
4,895 |
|
Datasheet |
OmniKlip™ | Bulk | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 1.969" (50.00mm) | 1.575" (40.00mm) | - | 2.953" (75.00mm) | - | - | - | Aluminum | Black Anodized |
|
960-29-28-D-AB-0HEATSINK 29X28MM DIA PUSH PIN |
1,585 |
|
Datasheet |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 1.102" (28.00mm) | - | 2.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
960-29-28-F-AB-0HEATSINK 29X28MM FRONT PUSH PIN |
3,772 |
|
Datasheet |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 1.102" (28.00mm) | - | 2.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
694-100HEATSINK TO247 W/CLIP 100MM |
3,998 |
|
Datasheet |
694 | Box | Active | Board Level, Vertical | TO-247 | Clip and PC Pin | Rectangular, Fins | 3.937" (100.00mm) | 0.870" (22.10mm) | - | 1.380" (35.05mm) | - | - | - | Aluminum | Black Anodized |
|
|
960-29-33-D-AB-0HEATSINK 29X33MM DIA PUSH PIN |
2,091 |
|
Datasheet |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 1.299" (33.00mm) | - | 2.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-20E-205-C2-R0HEATSINK 60X60X6MM XCUT T766 |
1,822 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.236" (6.00mm) | - | 13.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-01F-192-C2-R0HEATSINK 45X45X35MM R-TAB T766 |
2,754 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.378" (35.00mm) | - | 2.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-03D-20-C2-R0HEATSINK 54X54X25MM XCUT T766 |
2,244 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.984" (25.00mm) | - | 7.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-21E-207-C2-R0HEATSINK 60X60X12MM XCUT T766 |
3,843 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.472" (12.00mm) | - | 6.39°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

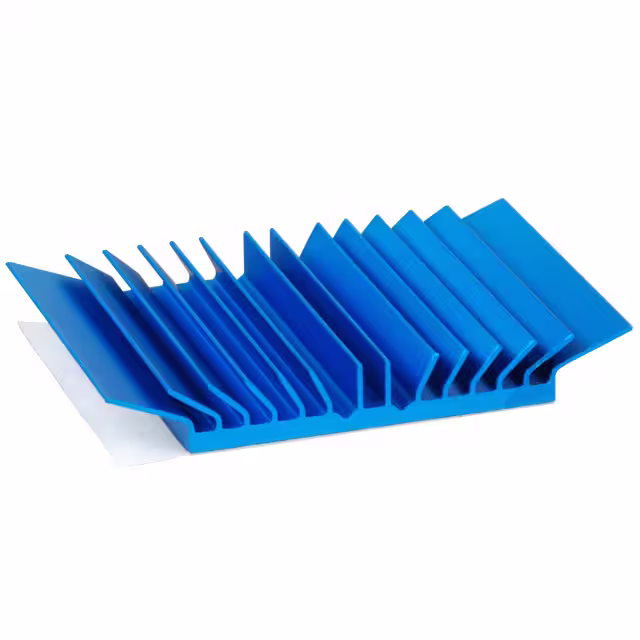

ATS-52400B-C1-R0HEAT SINK 40MM X 40MM X 7.5MM |
4,178 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.295" (7.50mm) | - | 4.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-53190K-C1-R0HEAT SINK 19MM X 19MM X 14.5MM |
3,097 |
|
Datasheet |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.571" (14.50mm) | - | 12.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-19E-133-C2-R0HEATSINK 70X70X10MM XCUT T766 |
4,669 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 7.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-06E-41-C2-R0HEATSINK 57.9X60.96X17.78MM T766 |
100 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.700" (17.78mm) | - | 10.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

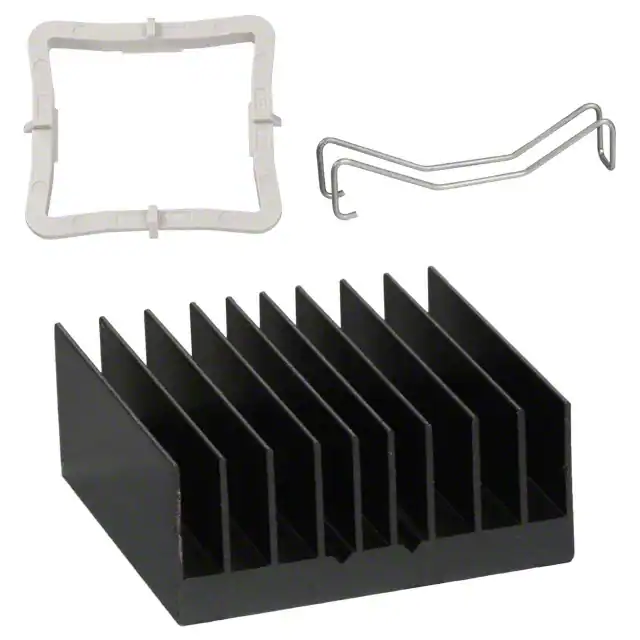

ATS-53350K-C1-R0HEAT SINK 35MM X 35MM X 14.5MM |
1,382 |
|
Datasheet |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.571" (14.50mm) | - | 5.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-21C-136-C2-R0HEATSINK 70X70X25MM XCUT T766 |
2,317 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 2.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03C-136-C2-R0HEATSINK 70X70X25MM XCUT T766 |
1,252 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 2.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

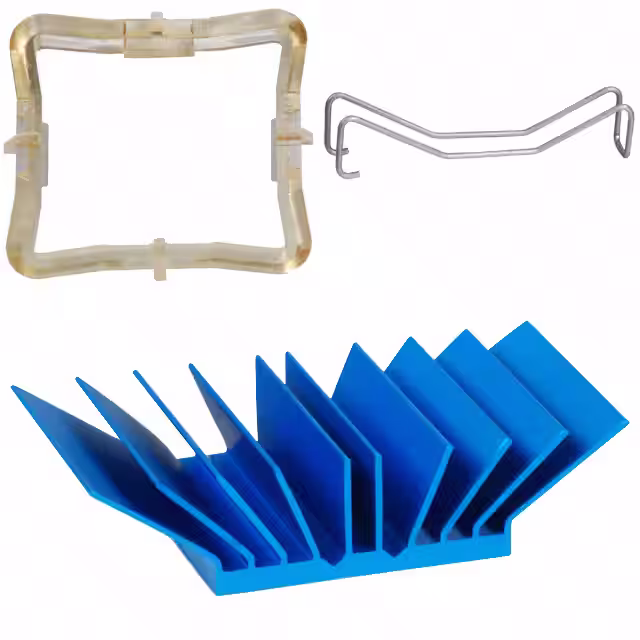

ATS-50290G-C1-R0HEAT SINK 29MM X 29MM X 12.5MM |
2,761 |
|
Datasheet |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.492" (12.50mm) | - | 4.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-06B-136-C2-R0HEATSINK 70X70X25MM XCUT T766 |
4,597 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 2.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

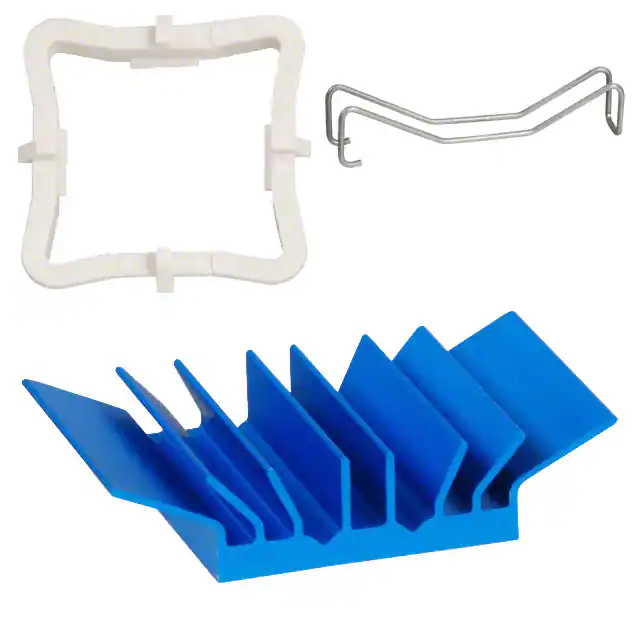

ATS-50210B-C1-R0HEAT SINK 21MM X 21MM X 7.5MM |
3,547 |
|
Datasheet |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.295" (7.50mm) | - | 11.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-20F-136-C2-R0HEATSINK 70X70X25MM XCUT T766 |
4,810 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 2.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
