Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1255275WX36" EXTRUSION 16082 XX3560-2 |
4,772 |
|
Datasheet |
- | Box | Active | Board Level, Extrusion | SCR | Press Fit | Rectangular, Fins | 36.000" (914.40mm) | 5.000" (127.00mm) | - | 2.250" (57.15mm) | - | - | 0.35°C/W | Aluminum | - |
|

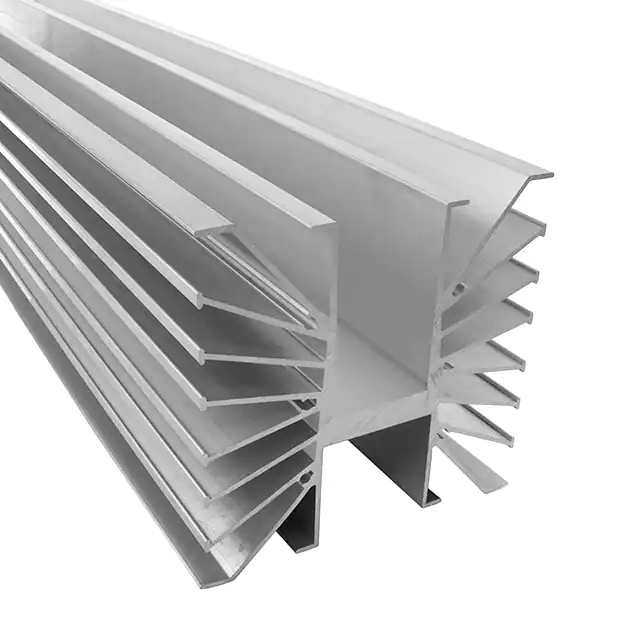

1255005X36" EXTRUSION 6542 XX1245 |
2,226 |
|
Datasheet |
- | Box | Active | Board Level, Extrusion | - | Bolt On | Rectangular, Fins | 36.000" (914.40mm) | 5.000" (127.00mm) | - | 5.000" (127.00mm) | - | - | 0.18°C/W | Aluminum | - |
|
1255335WX12" EXTRUSION 16565 XX5732 |
2,562 |
|
Datasheet |
- | Box | Active | Board Level, Extrusion | SCR | Press Fit | Rectangular, Fins | 36.000" (914.40mm) | 5.000" (127.00mm) | - | 2.500" (63.50mm) | - | - | 0.35°C/W | Aluminum | - |
|
SAR364ASX400MMEXTRUDED HEATSINK 364MM X 400MM |
1,986 |
|
Datasheet |
364AS | Box | Active | Top Mount | - | Thermal Tape, Adhesive | Rectangular, Fins | 15.748" (400.00mm) | 7.874" (200.00mm) | - | 2.815" (71.50mm) | - | - | - | Aluminum | Natural Anodized |
|

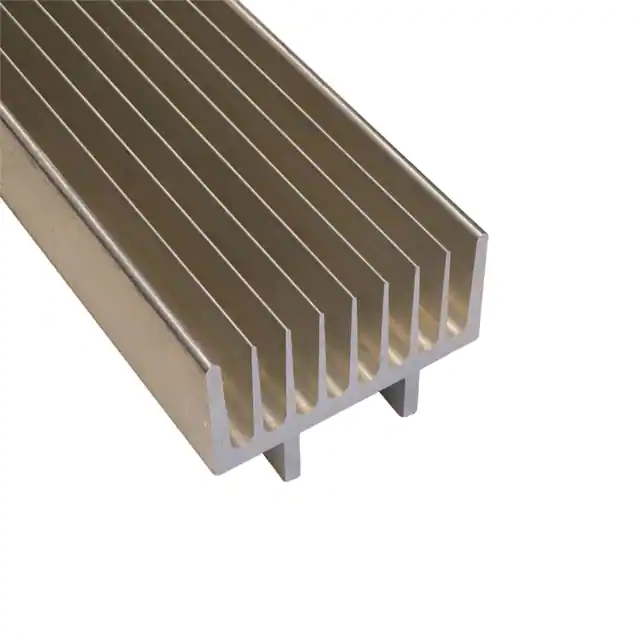

1256384.702WX12" EXTRUSION 14264 |
4,577 |
|
Datasheet |
- | Box | Active | Board Level, Extrusion | - | Press Fit | Rectangular, Fins | 36.000" (914.40mm) | 4.702" (119.43mm) | - | 3.312" (84.13mm) | - | - | 0.45°C/W | Aluminum | - |
|
607602F00000G60760 EXTRUSION 1X3.25"X4' |
1,700 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Pin Fins | 48.000" (1219.20mm) | 3.250" (82.55mm) | - | 1.000" (25.40mm) | 4.0W @ 20°C | - | - | Aluminum | - |
|
1255066.25WX36" EXTRUSION 16971 XX1541 |
1,916 |
|
Datasheet |
- | Box | Active | Board Level, Extrusion | - | Bolt On | Rectangular, Fins | 36.000" (914.40mm) | 6.250" (158.75mm) | - | 6.250" (158.75mm) | - | - | 0.15°C/W | Aluminum | - |
|

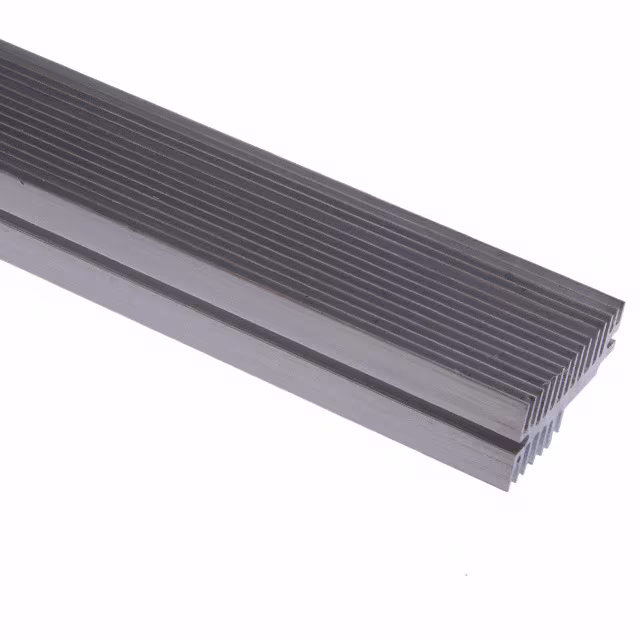

782452F00000G78245 EXTRUSION 2.36X1.06"X4.1' |
1,468 |
|
Datasheet |
- | Box | Active | Board Level, Vertical, Extrusion | - | Clip and PC Pin | Rectangular, Pin Fins | 49.500" (1257.30mm) | 1.063" (27.00mm) | - | 2.362" (60.00mm) | - | 1.60°C/W @ 200 LFM | - | Aluminum | - |
|

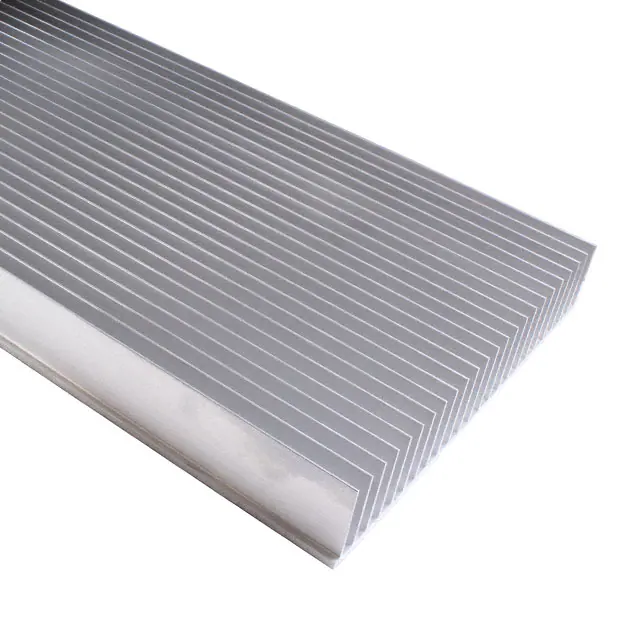

725452F0000062545 EXTRUSION 2.75X14.75"X4' |
4,063 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.000" (1219.20mm) | 14.750" (374.65mm) | - | 2.750" (69.85mm) | - | - | - | Aluminum | - |
|
|
KK 92 TO 126Fans, Blower, Thermal Management |
1,000 |
|
Datasheet |
KK 92 | Bulk | Active | Board Level | TO-126 | Clip | Rectangular | 0.138" (3.50mm) | 0.374" (9.50mm) | - | - | 1.0W | - | 80.00°C/W | Copper Alloy | - |
|
|
KK 92 SOT 82Fans, Blower, Thermal Management |
1,000 |
|
Datasheet |
KK 92 | Bulk | Active | Board Level | SOT-82 | Clip | Rectangular | 0.138" (3.50mm) | 0.374" (9.50mm) | - | - | 1.0W | - | 80.00°C/W | Copper Alloy | - |
|
|
KK 32 SOT 82Fans, Blower, Thermal Management |
1,000 |
|
Datasheet |
KK 32 | Bulk | Active | Board Level | SOT-82 | Clip | Rectangular | 0.130" (3.30mm) | 0.512" (13.00mm) | - | - | 1.3W | - | 60.00°C/W | Copper Alloy | - |
|
|
KK 32 TO 126Fans, Blower, Thermal Management |
1,000 |
|
Datasheet |
KK 32 | Bulk | Active | Board Level | TO-126 | Clip | Rectangular | 0.130" (3.30mm) | 0.512" (13.00mm) | - | - | 1.3W | - | 60.00°C/W | Copper Alloy | - |
|
|
KK 92 SOT 32Fans, Blower, Thermal Management |
1,000 |
|
Datasheet |
KK 92 | Bulk | Active | Board Level | SOT-32 | Clip | Rectangular | 0.138" (3.50mm) | 0.374" (9.50mm) | - | - | 1.0W | - | 80.00°C/W | Copper Alloy | - |
|
|
KK 32 SOT 32Fans, Blower, Thermal Management |
1,000 |
|
Datasheet |
KK 32 | Bulk | Active | Board Level | SOT-32 | Clip | Rectangular | 0.130" (3.30mm) | 0.512" (13.00mm) | - | - | 1.3W | - | 60.00°C/W | Copper Alloy | - |
|
|
KK 562 GS TO 5Fans, Blower, Thermal Management |
1,000 |
|
Datasheet |
KK 562 | Bulk | Active | Board Level | TO-5 | Clip | Round | - | - | 0.307" (7.80mm) ID, 0.748" (19.00mm) OD | - | 1.3W | - | 60.00°C/W | Copper Alloy | - |
|
|
SK 478 25 ALExtruded Heatsink |
1,000 |
|
- |
SK 478 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 0.984" (25.00mm) | 0.551" (14.00mm) | - | 0.236" (6.00mm) | 2.7W @ 80°C | 8.22°C/W | 29.68°C/W | Aluminum | - |
|
|
SK 478 37,5 ALExtruded Heatsink |
1,000 |
|
- |
SK 478 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 1.476" (37.50mm) | 0.551" (14.00mm) | - | 0.236" (6.00mm) | 2.7W @ 80°C | 8.22°C/W | 29.68°C/W | Aluminum | - |
|
|
SK 478 50 ALExtruded Heatsink |
1,000 |
|
- |
SK 478 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 1.969" (50.00mm) | 0.551" (14.00mm) | - | 0.236" (6.00mm) | 2.7W @ 80°C | 8.22°C/W | 29.68°C/W | Aluminum | - |
|
|
SK 521 25 ALExtruded Heatsink |
1,000 |
|
- |
SK 521 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 0.984" (25.00mm) | 0.602" (15.30mm) | - | 0.315" (8.00mm) | 3.42W @ 80°C | 6.48°C/W | 23.41°C/W | Aluminum | - |
