RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

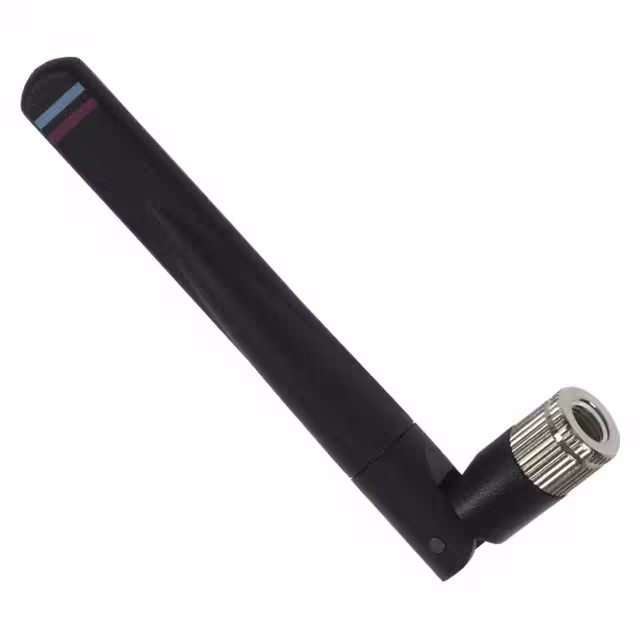

ANT-DB1-RAF-RPSRF ANT 2.45GHZ/5.3GHZ WHIP TILT |
2,285 |
|
Datasheet |
RAF | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.825GHz | Whip, Tilt | 2 | 1.9 | - | 2.5dBi, 4.6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.130" (104.90mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

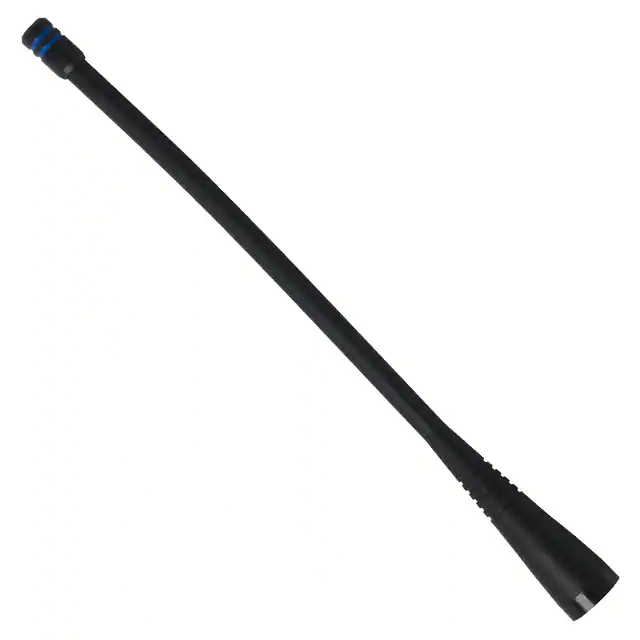

ANT-418-CW-QWRF ANT 418MHZ WHIP STR RP-SMA ML |
617 |
|
Datasheet |
CW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 380MHz, 410MHz, 450MHz | 380MHz ~ 450MHz | Whip, Straight | 1 | 1.9 | - | 2.9dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.008" (178.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

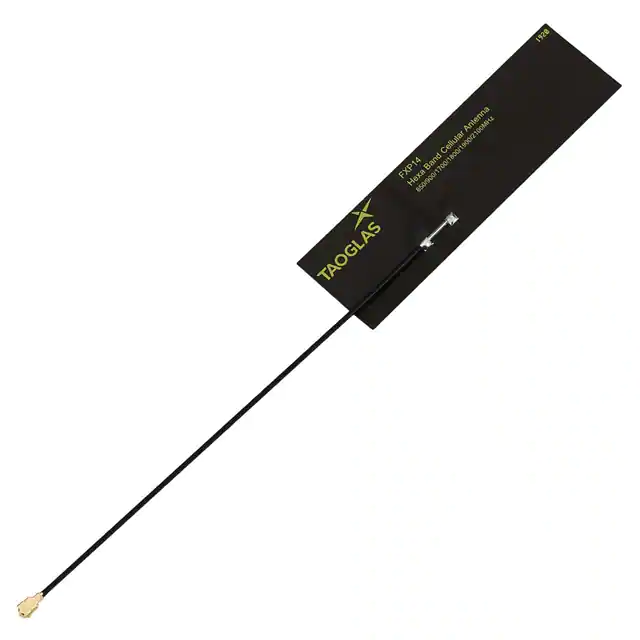

FXP14.07.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
1,171 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 6 | 2.5 | -7dB, -12dB, -8dB, -9dB, -9dB, -8dB | 2dBi, 1.5dBi, 3dBi, 2.5dBi, 2dBi, 2.5dBi | 5 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | 3G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, PCS, UMTS, WCDMA |
|

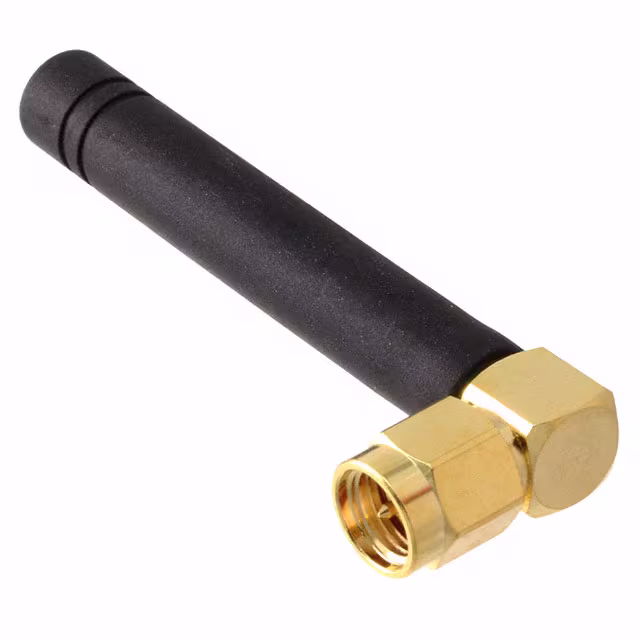

DELTA2A/X/SMAM/S/RA/11RF ANT 850MHZ/868MHZ WHIP RA |
1,595 |
|
Datasheet |
DELTA 2A | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Right Angle | 7 | 2 | - | 3.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | GPRS, GSM, UMTS |
|

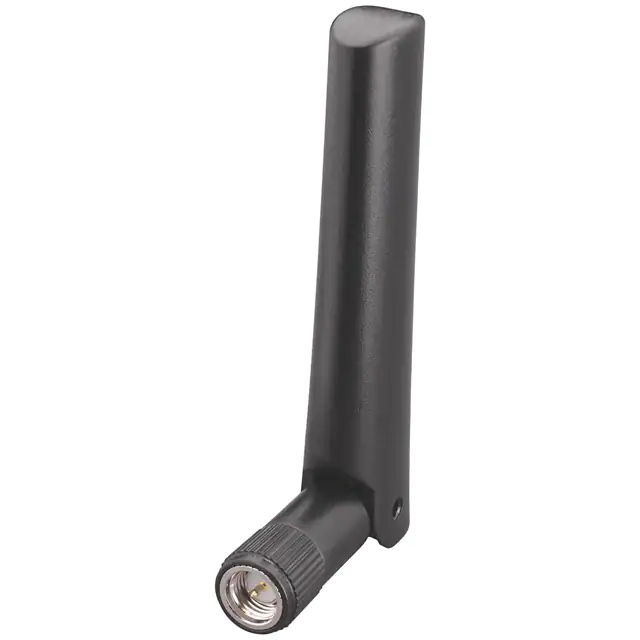

ANT-W63WS1-SMARF ANT 2.4/5/6GHZ WIFI6 TILT SMA |
347 |
|
Datasheet |
W63WSx | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Blade, Tilt | 3 | 2.3, 1.7, 2.3 | -8.1dB, -11.7dB, -8.1dB | 7.7dBi, 5.8dBi, 4.7dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 3.366" (85.50mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|
ANT-W63WS1-RPSRF ANT 2.4/5/6GHZ WIFI6 TILT RPS |
236 |
|
Datasheet |
W63WSx | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Blade, Tilt | 3 | 2.3, 1.7, 2.3 | -8.1dB, -11.7dB, -8.1dB | 7.7dBi, 5.8dBi, 4.7dBi | 5 W | - | RP-SMA Male | - | - | - | Connector Mount | 3.366" (85.50mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|

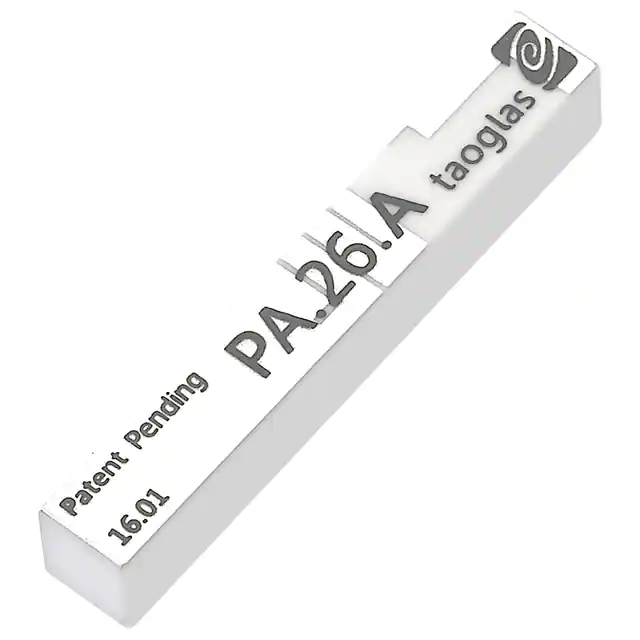

PA.26ARF ANT 829MHZ/2.2GHZ PCB TRACE |
8,420 |
|
Datasheet |
Anam | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 2 | 3.5 | - | 3.9dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.236" (6.00mm) | LTE |
|

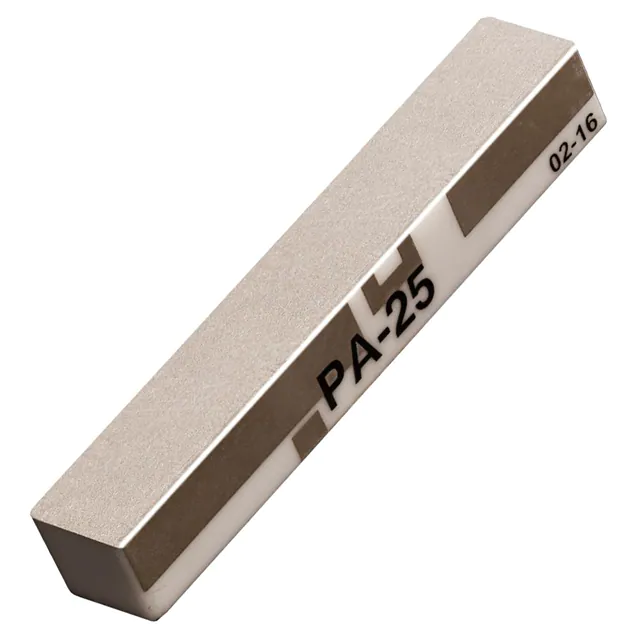

PA.25ARF ANT 850MHZ/900MHZ CHIP SLD |
4,180 |
|
Datasheet |
Anam | Tape & Reel (TR) | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.7GHz ~ 2.17GHz | Chip | 6 | 3 | -6.4dB, -12.7dB, -10.8dB, -13.5dB | 1.49dBi, 1.76dBi, 2.4dBi, 2.53dBi, 2.46dBi, 4.62dBi | - | - | Solder | - | - | - | Surface Mount | 0.236" (6.00mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA |
|

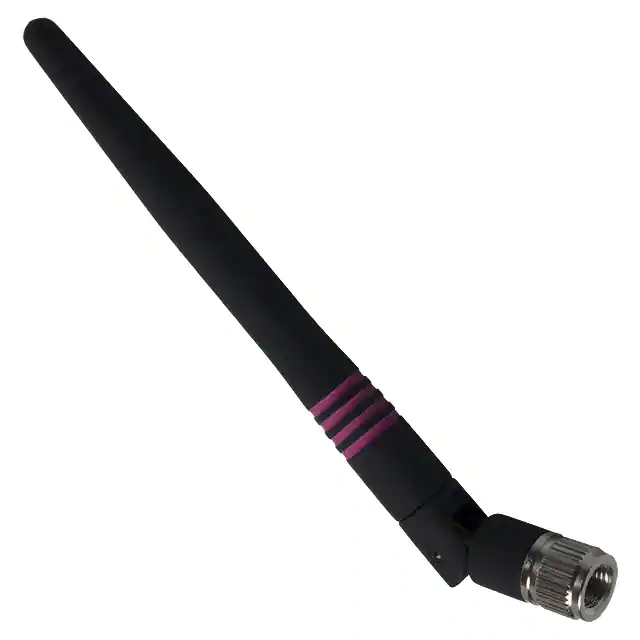

ANT-2.4-CW-RCT-RPRF ANT 2.4GHZ WHIP TILT RP-SMA |
988 |
|
Datasheet |
RCT | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.9 | - | 2.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.449" (113.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

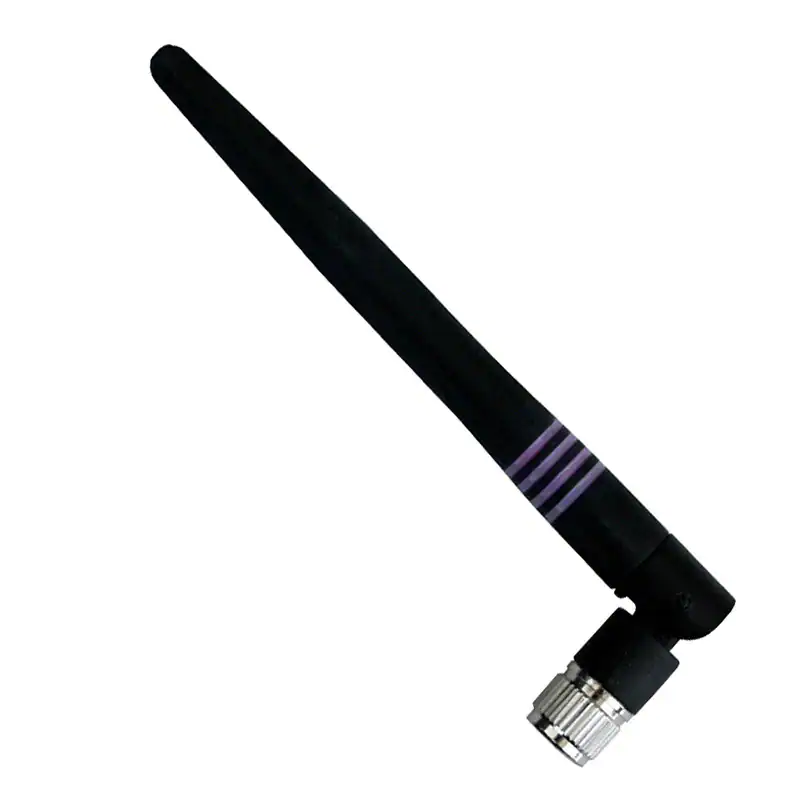

ANT-2.4-CW-RCT-SSRF ANT 2.4GHZ WHIP TILT SMA MALE |
817 |
|
Datasheet |
RCT | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.9 | - | 2.2dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.449" (113.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
ANT-916-CW-HWR-SMARF ANT 916MHZ WHIP TILT SMA MALE |
1,501 |
|
Datasheet |
HWR | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 930MHz | Whip, Tilt | 1 | 2 | - | 1.2dBi | - | - | SMA Male | - | - | - | Connector Mount | 5.591" (142.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|

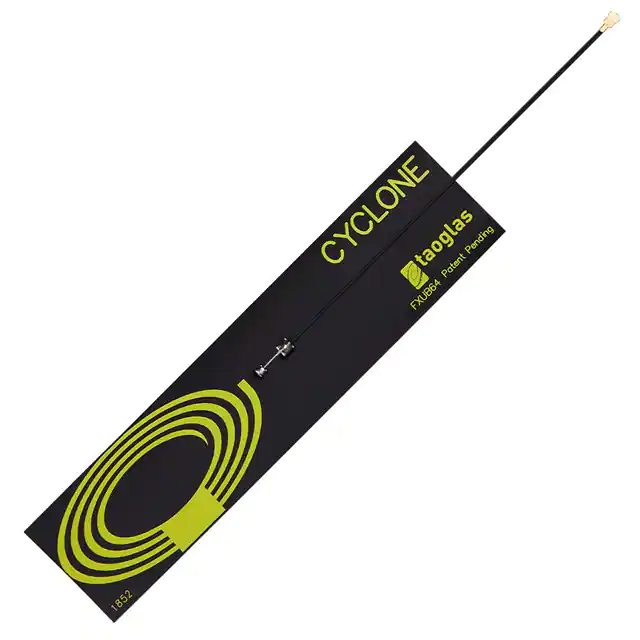

FXUB64.18.0150AGPS/GALILEO & 2.4GHZ MULTI-BAND |
476 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 788.5MHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.595GHz | 617MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 7 | - | 4dB, -7dB, -10dB, -10dB, -5dB, -4dB | 3.5dBi, 4.5dBi, 6dBi, 6dBi, 3.7dBi, 2.3dBi | 50 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | LTE |
|

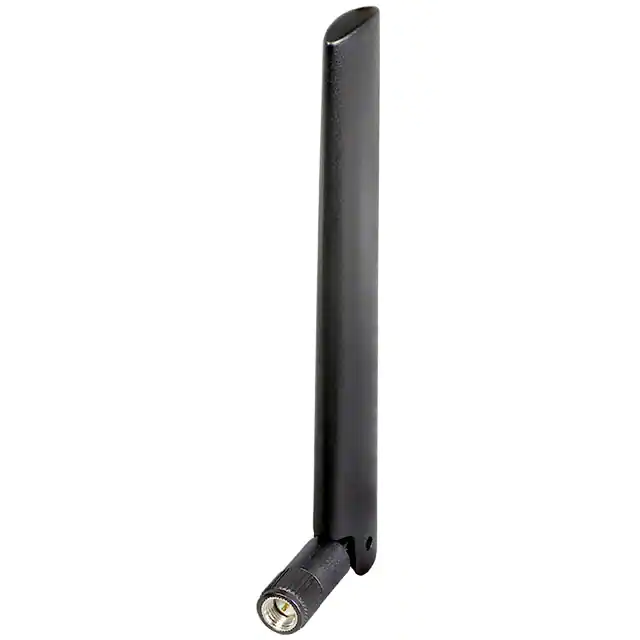

ANT-W63WS3-SMARF ANT 2.4/5/6GHZ WIFI6 TILT SMA |
3,281 |
|
Datasheet |
W63WSx | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Blade, Tilt | 3 | 2.3, 1.8, 3.5 | -8.1dB, -10.9dB, -5.1dB | 2.4dBi, 5dBi, 5.3dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 5.340" (135.70mm) | 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
|

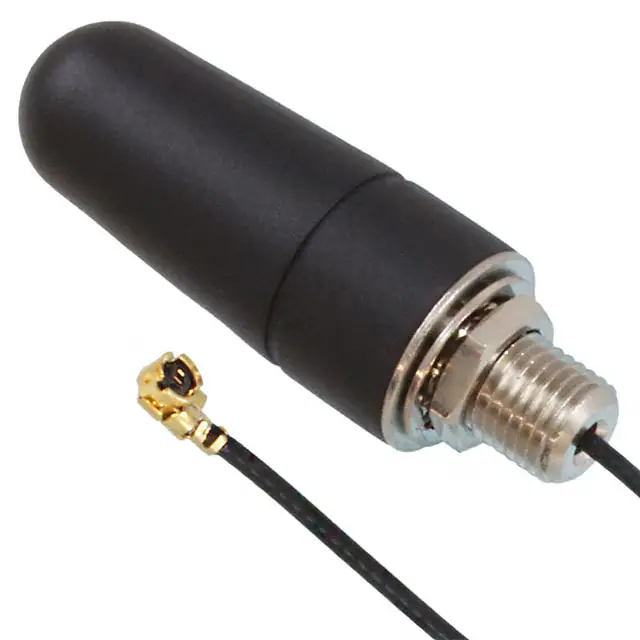

PRO-EX-296RF ANT 2.4GHZ WHIP STR CAB PAN |
939 |
|
Datasheet |
External Antenna | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | Whip, Straight | 1 | 3 | - | 3dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 1.102" (28.00mm) | ISM |
|
ANT-868-CW-HWR-RPSRF ANT 868MHZ WHIP TILT RP-SMA |
400 |
|
Datasheet |
HWR | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 853MHz ~ 883MHz | Whip, Tilt | 1 | 2 | - | -2.3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.591" (142.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|

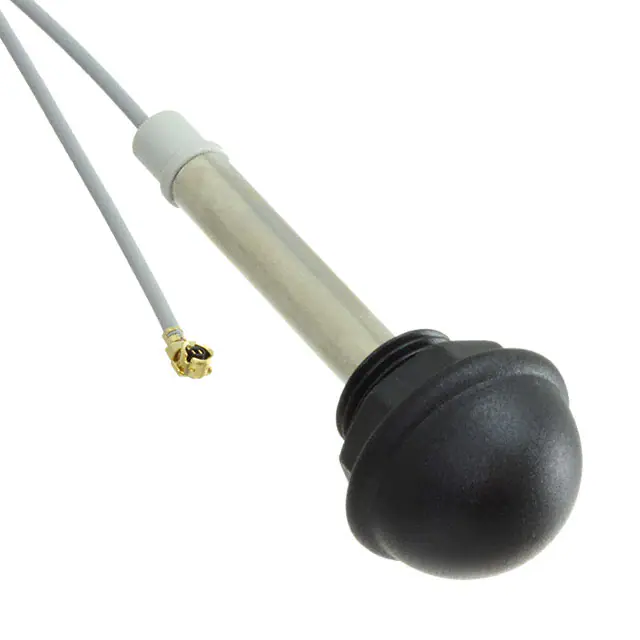

ANT-DB1-WRT-UFLRF ANT 2.4/5/6GHZ DOME PNL MT |
3,598 |
|
Datasheet |
WRT | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.9, 3.7, 4 | -10.2dBi, -4.8dBi, -4.4dB | 3.2dBi, 6.8dBi, 7dBi | 5 W | Cable - 216mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.394" (10.00mm) | 802.11, 802.15.4, Bluetooth, WiFi 4, WiFi 5, WiFi 6, ZigBee |
|

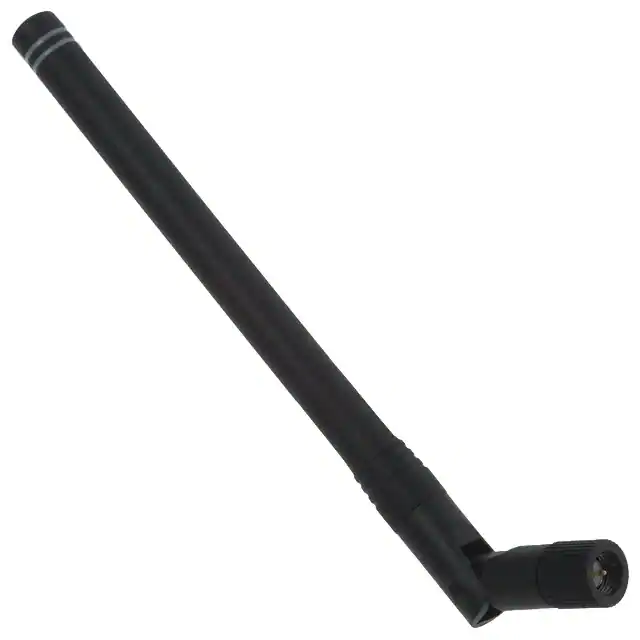

ANT-868-CW-HWR-SMARF ANT 868MHZ WHIP TILT SMA MALE |
933 |
|
Datasheet |
HWR | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 853MHz ~ 883MHz | Whip, Tilt | 1 | 2 | - | -2.3dBi | - | - | SMA Male | - | - | - | Connector Mount | 5.591" (142.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|

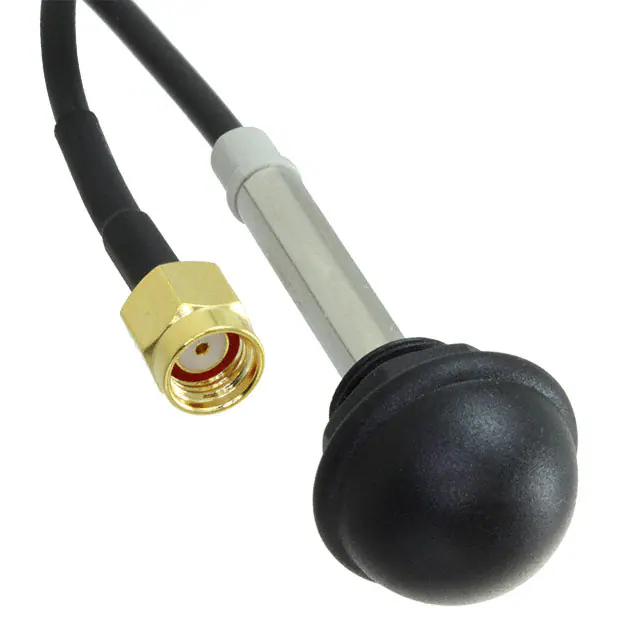

ANT-DB1-WRT-RPSRF ANT 2.4/5/6GHZ DOME PNL MT |
451 |
|
Datasheet |
WRT | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.9, 3.7, 4 | -10.2dBi, -4.8dBi, -4.4dB | 3.2dBi, 6.8dBi, 7dBi | 5 W | Cable - 216mm | RP-SMA Male | - | - | - | Panel Mount | 0.394" (10.00mm) | 802.11, 802.15.4, Bluetooth, WiFi 4, WiFi 5, WiFi 6, ZigBee |
|

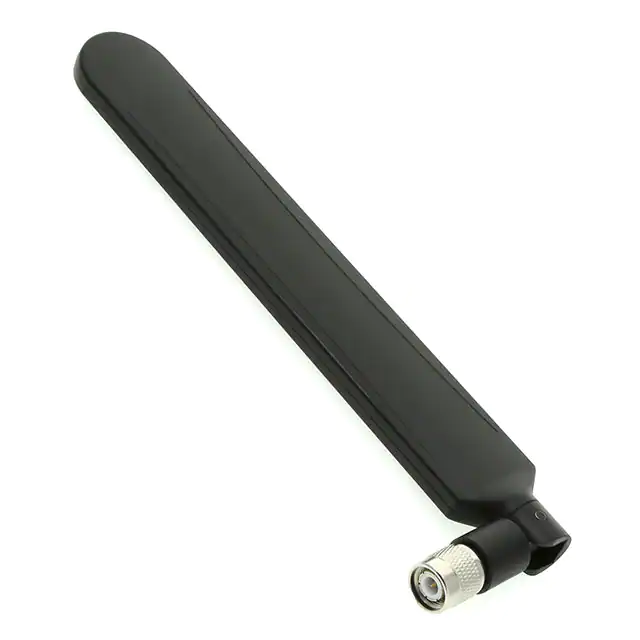

W5150ANTENNA DIPOLE 617MHZ - 6GHZ |
697 |
|
Datasheet |
External Antenna | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.465GHz, 4.75GHz | 617MHz ~ 960MHz, 1.43GHz ~ 3.5GHz, 3.5GHz ~ 6GHz | Blade, Tilt | 3 | - | -5dB | 1.2dBi, 2.5dBi, 5.5dBi | 3 W | - | SMA Male | IP65 | - | - | Connector Mount | 8.803" (223.59mm) | 2G, 3G, 4G, 5G |
|
ANT-916-CW-HWR-RPSRF ANT 916MHZ WHIP TILT RP-SMA |
1,094 |
|
Datasheet |
HWR | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 930MHz | Whip, Tilt | 1 | 2 | - | 1.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.591" (142.00mm) | ISM, LoRa, Sensor Networks, SigFox |
