RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TI.92.2113915MHZ TERMINAL ANTENNA 2DBI SMA |
430 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Tilt | 1 | - | - | 1.21dBi, 2.14dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 7.795" (198.00mm) | ISM |
|

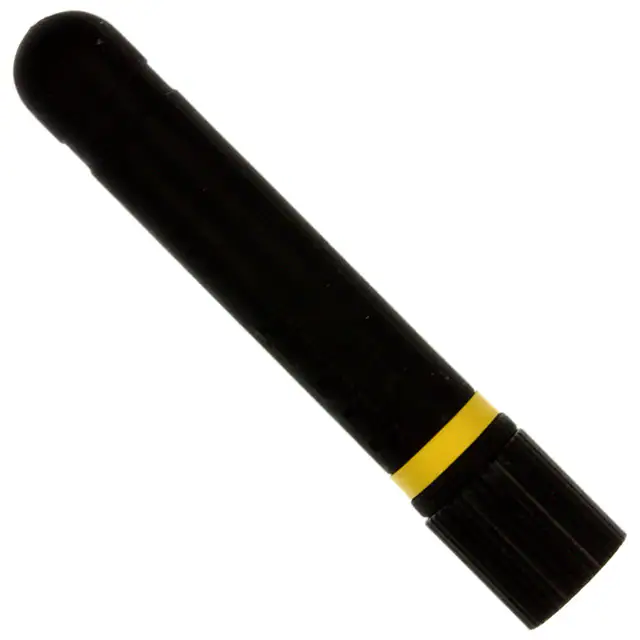

ANT-916-CW-RH-SMARF ANT 916MHZ WHIP STR SMA MALE |
273 |
|
Datasheet |
RH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 935MHz | Whip, Straight | 1 | 1.9 | - | -1.3dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.008" (51.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|

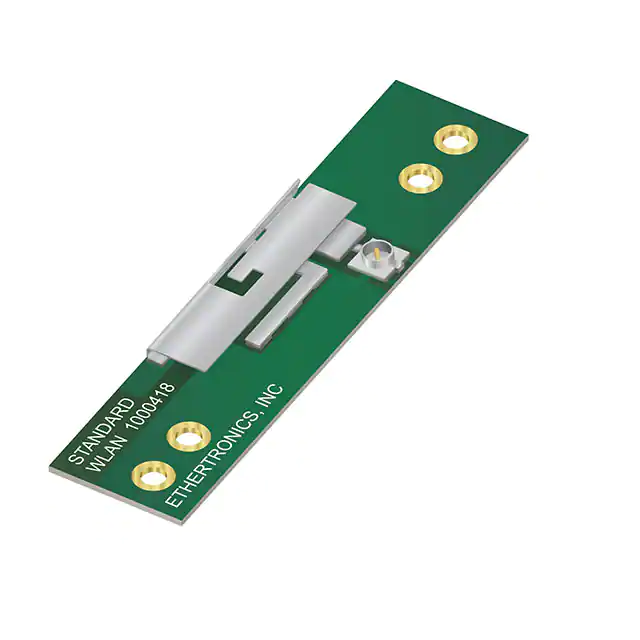

1000418RF ANT 2.4GHZ/4.9GHZ STAMPED MET |
5,523 |
|
Datasheet |
Prestta™ | Tray | Active | Bluetooth, Cellular, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2.1 | - | 4dBi, 4.2dBi | - | - | U.FL | - | - | - | Screw Mount | 0.201" (5.10mm) | 802.11a/b/g/n/c, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

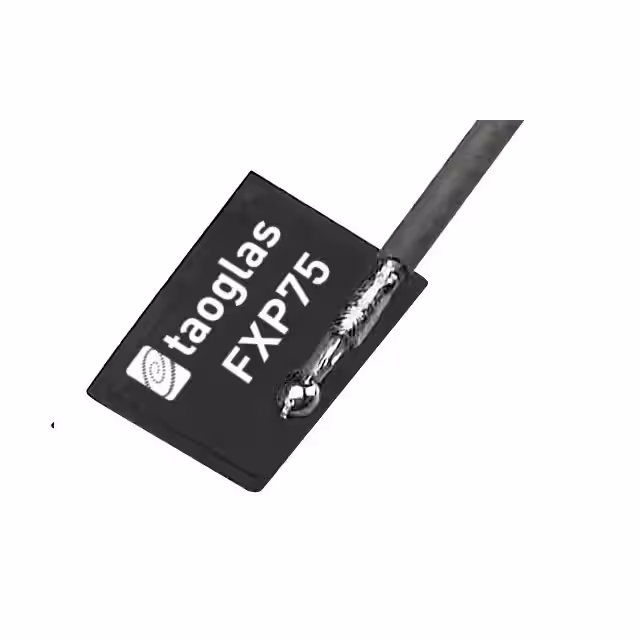

FXP75.07.0045BRF ANT 2.4GHZ FLAT IPEX 45MM |
1,287 |
|
Datasheet |
Atom | Bag | Active | Bluetooth | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Flat Patch | 1 | 2 | - | 2.5dBi | 2 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.009" (0.24mm) | Bluetooth |
|

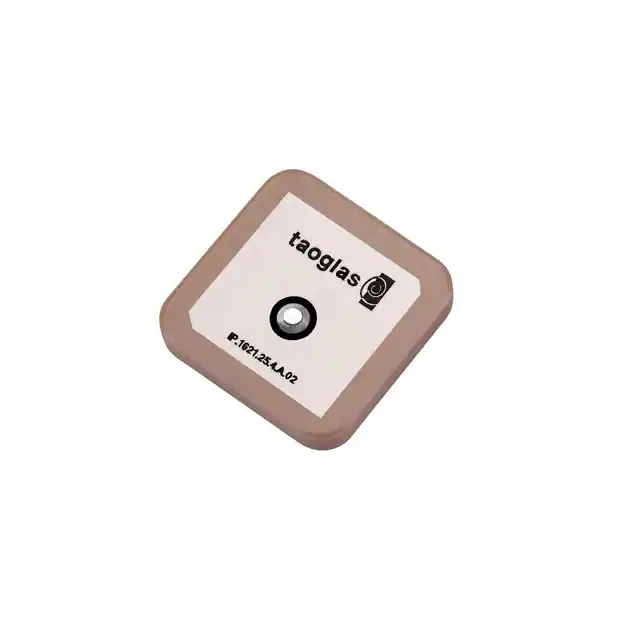

IP.1621.25.4.A.02RF ANT 1.6GHZ CER PATCH PIN ADH |
1,098 |
|
Datasheet |
- | Tray | Active | - | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.616GHz ~ 1.626GHz | Ceramic Patch | 1 | 1.5 | - | 2dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | - |
|
ANT-868-PW-QWRF ANT 868MHZ WHIP STR CAB PAN |
373 |
|
Datasheet |
PW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 750MHz ~ 950MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | Cable - 216mm | Solder | - | - | - | Panel Mount | 3.307" (84.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|

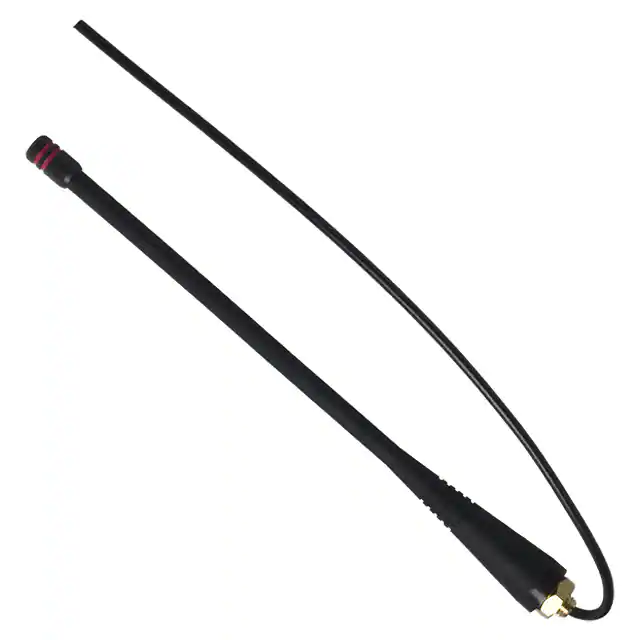

ANT-433-PW-QWRF ANT 433MHZ WHIP STR CAB PAN |
174 |
|
Datasheet |
PW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 400MHz ~ 470MHz | Whip, Straight | 1 | 1.9 | - | 3.3dBi | - | Cable - 216mm | Solder | - | - | - | Panel Mount | 6.811" (173.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
ANT-868-CW-QWRF ANT 868MHZ WHIP STR RP-SMA ML |
1,025 |
|
Datasheet |
CW | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 700MHz, 750MHz, 800MHz, 900MHz, 950MHz | 750MHz ~ 950MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.307" (84.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
CGGBP.35.6.A.02RF ANT 1.56/1.575GHZ CER PATCH |
2,240 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.56GHz, 1.575GHz, 1.602GHz | 1.533GHz ~ 1.589GHz, 1.547GHz ~ 1.603GHz, 1.574GHz ~ 1.63GHz | Ceramic Patch | 3 | 2.5 | -10dB | 4.5dBi, 3dBi, 4.5dBi | - | - | Pin | - | - | - | Adhesive | 0.256" (6.50mm) | Beidou, Galileo, GLONASS, GPS |
|
ANT-2.4-CW-HWRF ANT 2.4GHZ WHIP STR RP-SMA ML |
1,228 |
|
Datasheet |
HW | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.3GHz ~ 2.6GHz | Whip, Straight | 1 | 2 | - | 3.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.724" (120.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
SGGP.25.2.A.02RF ANT 1.575/1.602GHZ CER PATCH |
12,011 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | - | -10dB | 3.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | GLONASS, GPS |
|
ANT-433-CW-HD-SMARF ANT 433MHZ WHIP STR SMA MALE |
6,473 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 420MHz ~ 445MHz | Whip, Straight | 1 | 2 | - | 0.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.465" (88.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

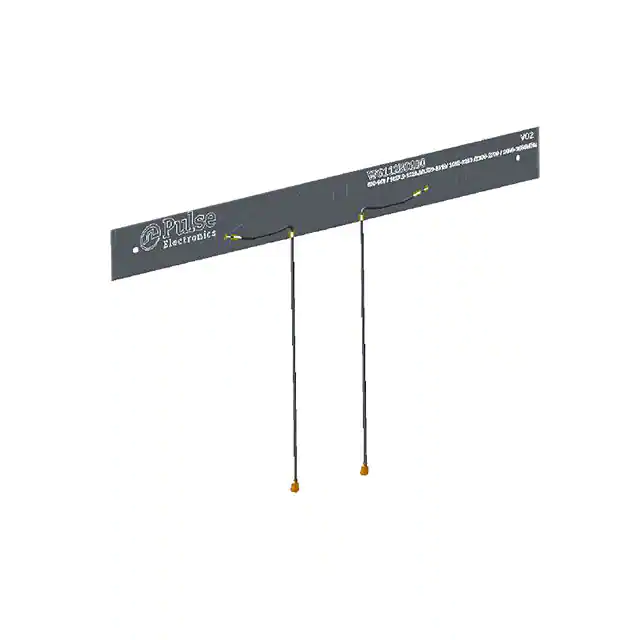

W6112B0100RF ANT FLAT PATCH IPEX ADH |
625 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | - | 698MHz ~ 960MHz, 1.428GHz ~ 1.51GHz, 1.559GHz ~ 1.61GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz | Flat Patch | 6 | - | -6dB | 4.6dBi | 3 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | LTE |
|
ANT-916-OC-LG-SMARF ANT 916MHZ WHIP TILT SMA MALE |
736 |
|
Datasheet |
OC | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 895MHz ~ 935MHz | Whip, Tilt | 1 | 2 | - | 2.2dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.618" (193.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|

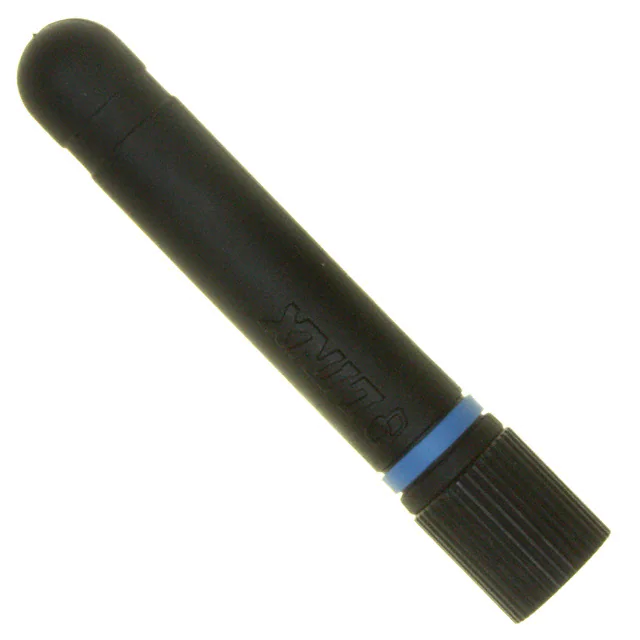

ANT-418-CW-RH-SMARF ANT 418MHZ WHIP STR SMA MALE |
266 |
|
Datasheet |
RH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 413MHz ~ 423MHz | Whip, Straight | 1 | 1.9 | - | -6.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.008" (51.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
2128600001WI-FI/BLUETOOTH HINGED EXT ANTEN |
1,931 |
|
Datasheet |
212860 | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | - | -10dB | 5.3dBi, 4.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

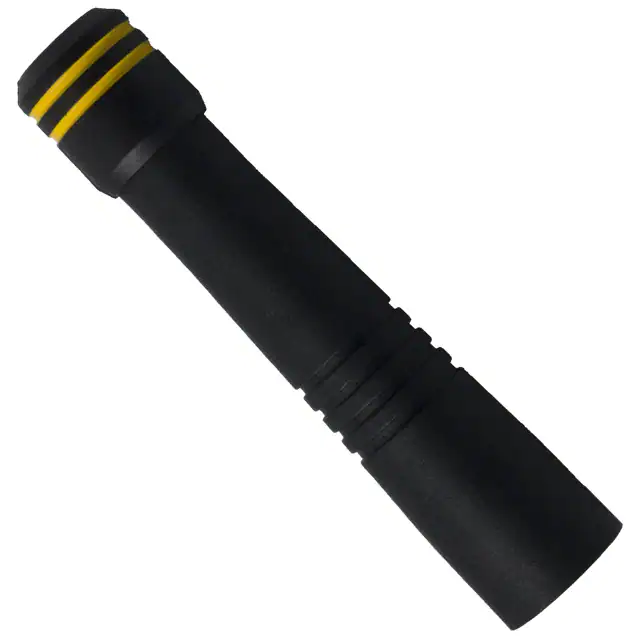

ANT-916-CW-HDRF ANT 916MHZ WHIP STR RP-SMA ML |
185 |
|
Datasheet |
HD | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 873MHz ~ 958MHz | Whip, Straight | 1 | 2 | - | -0.3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.559" (65.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
W1063MRF ANT 898MHZ WHIP TILT SMA MALE |
1,084 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (300MHz ~ 1GHz) | 898MHz | 868MHz ~ 928MHz | Whip, Tilt | 1 | 2.5 | - | 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.673" (194.90mm) | WLAN |
|
ANT-868-CW-HW-SMARF ANT 868MHZ WHIP STR SMA MALE |
481 |
|
Datasheet |
HW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 855MHz ~ 880MHz | Whip, Straight | 1 | 1.9 | - | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 5.335" (135.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|

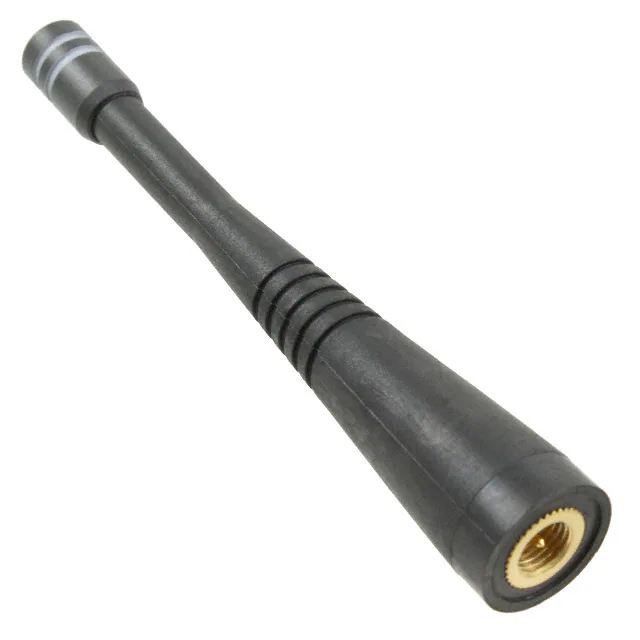

ANT-868-CW-QW-SMARF ANT 868MHZ WHIP STR SMA MALE |
297 |
|
Datasheet |
CW | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 700MHz, 750MHz, 800MHz, 900MHz, 950MHz | 750MHz ~ 950MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.307" (84.00mm) | ISM, LoRa, Sensor Networks, SigFox |
