Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H8MMH-3436MDIP CABLE - HDM34H/AE34M/HDM34H |
3,261 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|

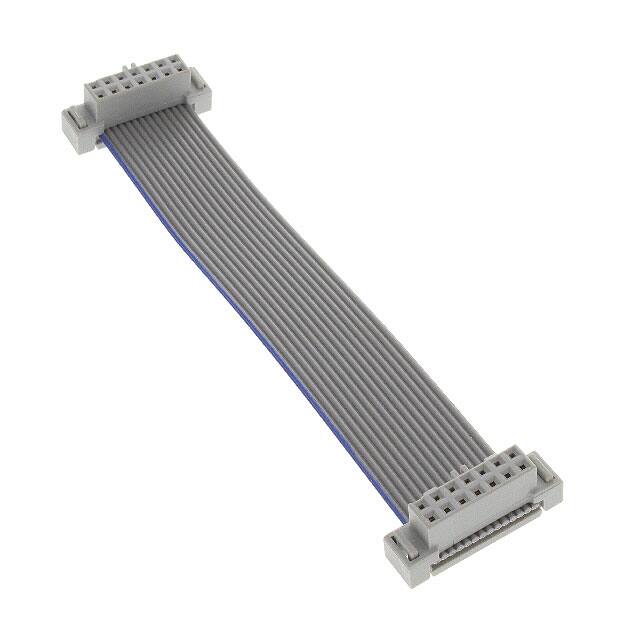

158214-0220-HF625/14-D-3CABLE 14POS SOCKET TO SOCKET 3" |
2,062 |
|
Datasheet |
158 | Bulk | Obsolete | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
TCSD-05-D-06.88-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,531 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.573' (174.75mm, 6.88") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-D-06.89-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,468 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.574' (175.00mm, 6.89") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-S-18.50-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,748 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.54' (469.90mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-15-S-08.50-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,335 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.708' (215.90mm, 8.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-22-S-03.54-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,432 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 44 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.295' (89.92mm, 3.54") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-15-S-10.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,155 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSD-06-26-L-12.00-S-K-MMINI-MATE CABLE ASSEMBLY, 0.100" |
3,480 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 12 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S1SS-07-28-GF-30.50-L1MICRO MATE SINGLE ROW DISCRETE W |
3,936 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 7 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
H1CXS-6436GIDC CBL - HHKC64S/AE64G/X |
4,239 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 64 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
C3CCS-1406MIDC CABLE - CKC14S/AE14M/CKC14S |
4,386 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Multiple, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
H3WWH-2418MIDC CBL - HPPL24H/AE24M/HHPL24H |
4,217 |
|
Datasheet |
- | Bulk | Active | Plug to Plug | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

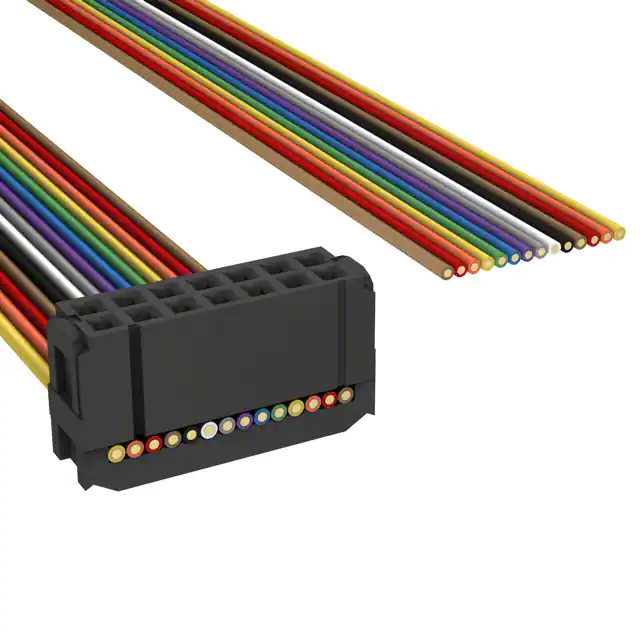

A1AXB-1436MIDC CABLE- ASC14B/AE14M/X |
2,927 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A3AAB-1418GIDC CABLE- ASC14B/AE14G/ASC14B |
4,983 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-08-D-02.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,136 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-08-D-02.00-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,732 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-08-D-02.00-01-F-N-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,253 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-08-D-02.00-01-F-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,069 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-D-06.00-01-F-N-P012MM DOUBLE ROW FEMALE IDC ASSEMB |
3,585 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
