Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCMD-07-T-03.40-01-G-P13IDC SOCKET AND TERMINAL CABLE AS |
4,047 |
|
Datasheet |
HCM | Bulk | Active | Socket to Plug | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
T2SD-05-24C-L-12.00-S2.00 MM TIGER EYE DOUBLE ROW DIS |
3,462 |
|
Datasheet |
Tiger Eye™ T2SD | Bulk | Active | Socket to Individual Wire Leads | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-08-D-05.00-01-RW2.00 MM IDC RIBBON CABLE ASSEMBL |
4,170 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S2SD-04-24C-S-05.00-S2.00 MM TIGER EYE DOUBLE ROW DIS |
1,464 |
|
Datasheet |
Tiger Eye™ S2SD | Bulk | Active | Socket to Individual Wire Leads | 8 | 2 | 0.079" (2.00mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
A1DXA-2036MIDC CABLE- AKP20A/ AE20M / X |
1,813 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
H6MMS-3036MDIP CBL - HHDM30S/AE30M/HHDM30S |
3,671 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|

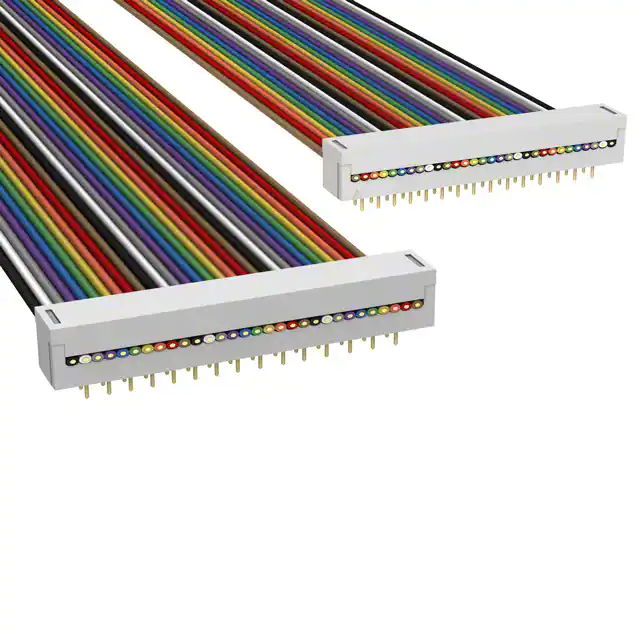

H6MMH-3036MDIP CABLE - HDM30H/AE30M/HDM30H |
3,917 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|

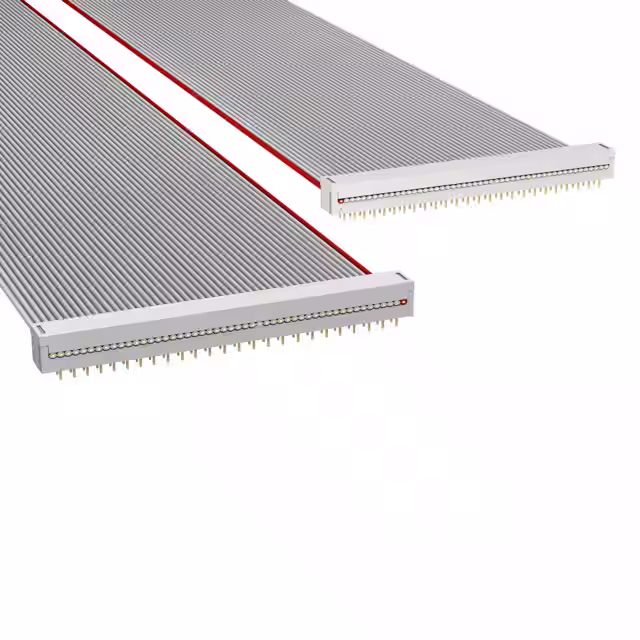

H6MMH-5036GDIP CABLE - HDM50H/AE50G/HDM50H |
3,574 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|

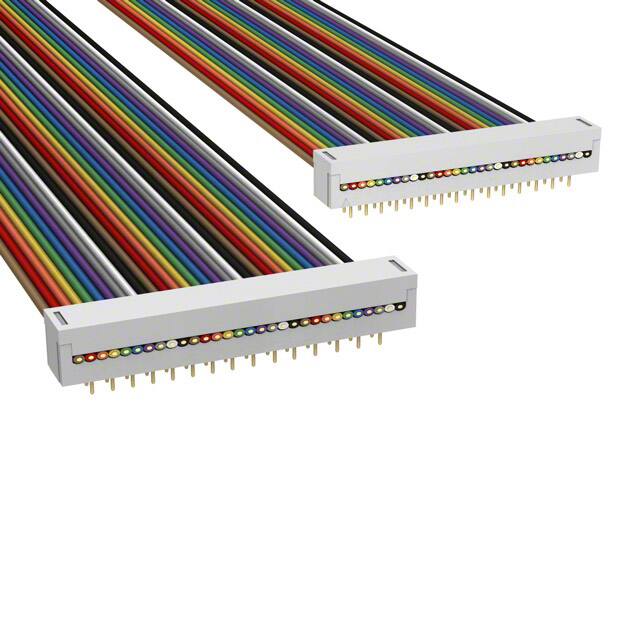

H8MMS-3036MDIP CBL - HHDM30S/AE30M/HHDM30S |
1,120 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
|
H8MMH-3036MDIP CABLE - HDM30H/AE30M/HDM30H |
1,877 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H8MMH-5036GDIP CABLE - HDM50H/AE50G/HDM50H |
1,026 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|

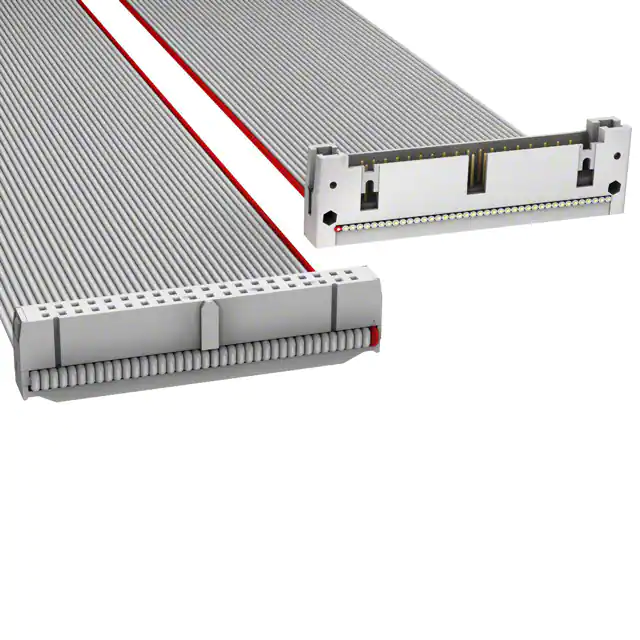

H3DKH-4036GIDC CBL - HHKR40H/AE40G/HHPK40H |
2,499 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3KKH-2406GIDC CBL - HHPK24H/AE24G/HHPK24H |
4,418 |
|
Datasheet |
- | Bulk | Active | Plug to Plug | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-05-D-07.08-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,593 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.590' (180.00mm, 7.08") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-06-D-06.00-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,711 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-06-S-15.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,779 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.25' (381.00mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-20-S-05.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,760 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.417' (127.00mm, 5.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-20-S-05.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,463 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.417' (127.00mm, 5.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-06-D-06.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,036 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-05-T-05.50-01-N-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
1,790 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
