Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCMD-10-S-21.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,023 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
L3DKH-2618NIDC CBL - LKR26H/CN221GR/LPK26H |
3,743 |
|
- |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TFSDT-03-28-G-20.00-S.050" TIGER EYE DOUBLE ROW DISCR |
1,648 |
|
Datasheet |
Tiger Eye™ TFSDT | Bulk | Active | Plug to Individual Wire Leads | 6 | 2 | 0.050" (1.27mm) | - | 1.67' (508.00mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-16-T-03.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,013 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 32 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
7010502088MOLDED ASSEMBLY 2M AB BD-040-362 |
2,118 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

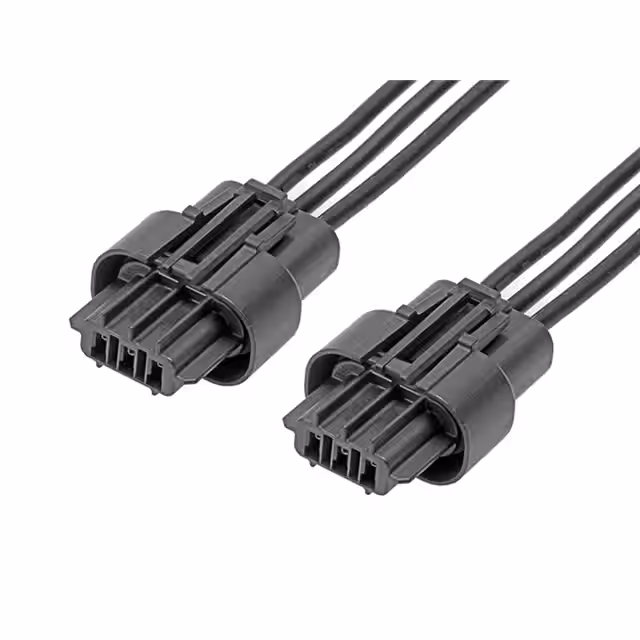

2166201033SQUBA 3.6 R-R 3CKT 600MM SN |
1,553 |
|
Datasheet |
Squba 216620 | Bag | Active | Socket to Socket | 3 | 1 | 0.142" (3.60mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Tin | 100.0µin (2.54µm) |
|
M3BBA-3406JIDC CABLE - MSR34A/MC34G/MSR34A |
4,411 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A3BBH-1418GIDC CABLE - ASR14H/AE14G/ASR14H |
4,398 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
H1AXS-6436GIDC CABLE - HSC64S/AE64G/X |
3,758 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Cable | 64 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|

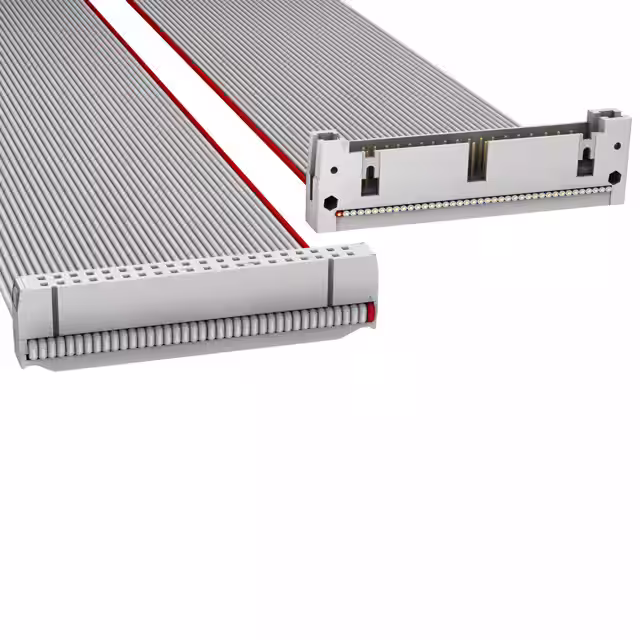

H3BKH-4036GIDC CBL - HHSR40H/AE40G/HHPK40H |
4,595 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
C3AAS-1606GIDC CABLE - CSC16S/AE16G/CSC16S |
2,702 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
|
TCSD-03-S-20.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,726 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 6 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.67' (508.00mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-08-S-12.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,524 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-08-S-12.00-01-N-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,442 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-15-S-02.50-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,639 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.208' (63.50mm, 2.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-S-14.00-01-F-N-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,871 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.17' (355.62mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-08-D-05.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,435 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-08-D-05.00-01-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
1,566 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TFSDT-04-28-H-03.00-S.050" TIGER EYE DOUBLE ROW DISCR |
3,524 |
|
Datasheet |
Tiger Eye™ TFSDT | Bulk | Active | Plug to Individual Wire Leads | 8 | 2 | 0.050" (1.27mm) | - | 0.250' (76.20mm, 3.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
MRTD-05-20-L-10.0-L1.100" MINI MATE DOUBLE ROW PANEL |
3,924 |
|
Datasheet |
Mini Mate® MRTD | Bulk | Active | Plug to Plug | 10 | 2 | 0.100" (2.54mm) | - | - | Latch Lock | Black, Individual | Shielded | - | Crimp | Gold | 10.0µin (0.25µm) |
