Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S2SDT-02-24-L-36.00-SR2.00 MM TIGER EYE DOUBLE ROW DIS |
2,833 |
|
Datasheet |
Tiger Eye™ S2SDT | Bulk | Active | Socket to Individual Wire Leads | 4 | 2 | 0.079" (2.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSD-10-28-G-17.00-SLDOUBLE ROW DISCRETE WIRE ASSEMBL |
1,511 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 20 | 2 | 0.050" (1.27mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S1SD-10-28C-GF-02.50-LMICRO MATE DOUBLE ROW DISCRETE W |
2,055 |
|
Datasheet |
Micro Mate™ S1SD | Bulk | Active | Socket to Individual Wire Leads | 20 | 2 | 0.039" (1.00mm) | - | - | Latch Lock | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TCMD-05-T-05.00-01-N-P022.00 MM IDC RIBBON CABLE ASSEMBL |
4,743 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
A1BXA-3436GIDC CABLE-ASS34A/ AE34G / X |
4,549 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A3BBH-1606MIDC CABLE - ASR16H/AE16M/ASR16H |
3,516 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3AKH-4036GIDC CBL - HHSC40H/AE40G/HHPK40H |
2,936 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
H3BBH-3036MIDC CABLE - HSR30H/AE30M/HSR30H |
3,132 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

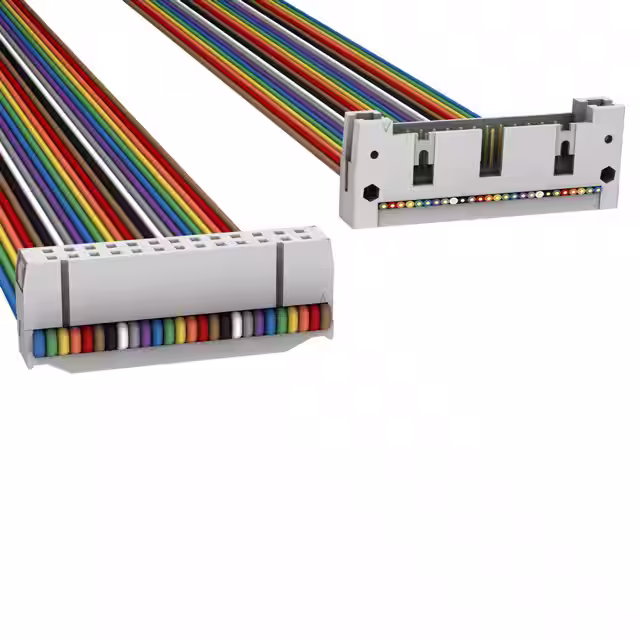

H3BKH-2636MIDC CBL - HHSR26H/AE26M/HHPK26H |
1,854 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief (Socket); Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

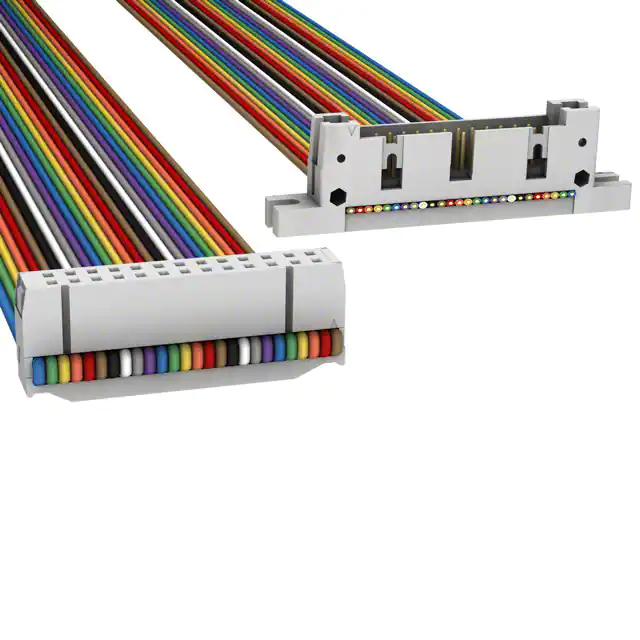

H3BWH-2636MIDC CBL - HHSR26H/AE26M/HHPL26H |
2,874 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
M2MXH-2636JIDC CABLE - MDM26H/MC26G/X |
3,806 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | PCB to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Board In | IDC | Gold | 15.0µin (0.38µm) |
|
H3KKH-4006MIDC CBL - HHPK40H/AE40M/HHPK40H |
1,410 |
|
Datasheet |
- | Bulk | Active | Plug to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-18-S-06.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,633 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 36 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-04-D-12.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,937 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-10-D-02.75-01-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,785 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-22-S-05.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,113 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 44 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
T1PD-06-28C-GF-03.0-A-T31.00 MM MICRO MATE DOUBLE ROW PA |
4,210 |
|
Datasheet |
Micro Mate™ T1PD | Bulk | Active | Socket to Plug | 12 | 2 | 0.039" (1.00mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
IDSS-08-D-19.70SLIM BODY SINGLE-ROW IDC SOCKET |
4,713 |
|
Datasheet |
IDSS | Bulk | Active | Socket to Socket | 8 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-04-D-12.00-01-R2.00 MM IDC RIBBON CABLE ASSEMBL |
1,933 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
HCMD-07-T-02.00-01-NIDC SOCKET AND TERMINAL CABLE AS |
2,529 |
|
Datasheet |
HCM | Bulk | Active | Socket to Plug | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
