Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H3BKH-1606GIDC CBL - HHSR16H/AE16G/HHPK16H |
2,641 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3BWH-1606GIDC CBL - HHSR16H/AE16G/HHPL16H |
3,589 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
TCSD-05-S-01.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,020 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.083' (25.40mm, 1.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-05-S-02.25-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,335 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSD-03-20C-L-03.25-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
2,613 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 6 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSD-04-28-L-07.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
4,063 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 8 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSS-08-20C-F-36.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
3,476 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Individual Wire Leads | 8 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
T1SD-04-28-GF-03.01.00 MM MICRO MATE DOUBLE ROW DI |
4,192 |
|
Datasheet |
Micro Mate™ T1SD | Bulk | Active | Socket to Plug | 8 | 2 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
IDMS-03-T-04.00SLIM BODY SINGLE-ROW IDC MALE AS |
1,530 |
|
Datasheet |
IDMS | Bulk | Active | Socket to Plug | 3 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S1SS-03-28C-GF-20.00-LMICRO MATE SINGLE ROW DISCRETE W |
2,077 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 3 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
2174661031ULTRA-FIT SR R-S 3CKT 150MM DISC |
4,867 |
|
Datasheet |
Ultra-Fit 217466 | Bag | Active | Socket to Cable | 3 | 1 | 0.138" (3.50mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Tin | 60.0µin (1.52µm) |
|
A1BXG-1636GIDC CABLE - ASR16G/AE16G/X |
4,797 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

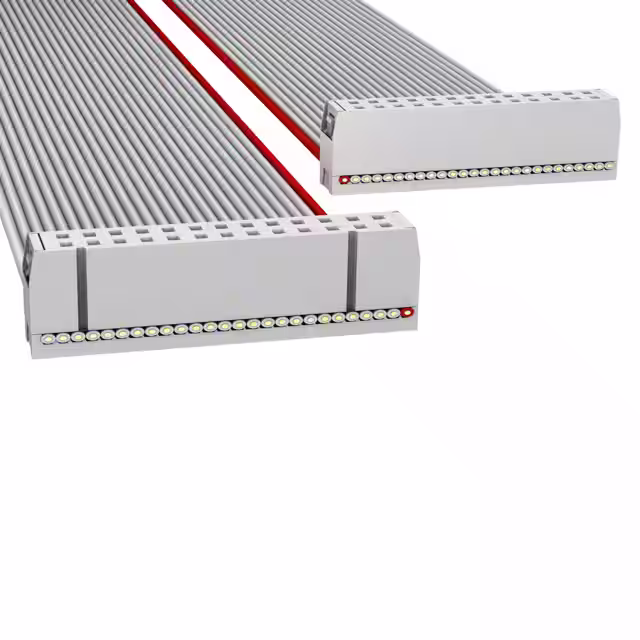

H3AAH-2636GIDC CBL - HHSC26H/AE26G/HHSC26H |
4,751 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DKH-1606GIDC CBL - HHKR16H/AE16G/HHPK16H |
4,365 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DWH-1606GIDC CBL - HHKR16H/AE16G/HHPL16H |
2,575 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
H3AAS-4018GIDC CABLE - HSC40S/AE40G/HSC40S |
2,779 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Socket | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
SFSD-05-28-G-06.69-SR.050 SOCKET DISCRETE CABLE ASSEM |
1,170 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | 0.557' (169.93mm, 6.69") | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
T1SS-02-28-GF-12.0-T3CBL ASSY 1MM 2POS M TO F |
4,514 |
|
- |
Micro Mate™ T1SS | Bulk | Active | Socket to Plug | 2 | 1 | 0.039" (1.00mm) | - | 1.00' (304.80mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TFSS-02-28-H-03.00-S.050" TIGER EYE SINGLE ROW DISCR |
2,062 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 2 | 1 | 0.050" (1.27mm) | - | 0.250' (76.20mm, 3.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
092321264026CCT QF50 RIBBON CABLE ASSY |
3,768 |
|
Datasheet |
QF 50 92321 | Bag | Obsolete | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.31' (400.00mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
