Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8790 060U10001 PR #18 PVC BRD PVC |
4,659 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair) | 18 AWG | 7/26 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.241" (6.12mm) | Spiral | 1000.0' (304.8m) | Chrome | UL Style CMG | - | 300 V | -20°C ~ 60°C | Audio, Control, Signal | 0.0280" (0.711mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
86974.35.05CABLE 4COND 14AWG YELLOW |
1,992 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 14 AWG | 41/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.585" (14.86mm) | - | 250.0' (76.2m) | Yellow | - | - | 600 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | - | - |
|
|
30-02677CBL 7CON 32AWG BLK BIO |
2,982 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 7 | 32 AWG | 19/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.110" (2.79mm) | - | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02821CBL 7CON 32AWG WHT BIO |
3,934 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 7 | 32 AWG | 19/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.110" (2.79mm) | - | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02749CBL 7CON 32AWG GRY BIO |
1,723 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 7 | 32 AWG | 19/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.110" (2.79mm) | - | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
|
DEIP164U4 PRS #16 FLRST FLRST |
3,814 |
|
Datasheet |
- | Bulk | Active | Multi-Pair | 8 (4 Pair Twisted) | 16 AWG | 19/29 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.386" (9.80mm) | - | 2000.0' (609.6m) | Green | - | - | 450 V | 0°C ~ 75°C | - | 0.0170" (0.432mm) | Poly-Vinyl Chloride (PVC) | - |
|
M13143 SL001MULTI-PAIR 6COND 20AWG |
4,904 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.324" (8.23mm) | Foil | 1000.0' (304.8m) | Slate | UL Style 2919 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Polyethylene (PE) | - |
|
|
55PC0122-22-9/96CS3109CABLE 2COND 22AWG |
4,075 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 19/0.0063" | Copper, Silver Coated | - | 0.083" (2.11mm) | - | - | - | - | - | 600 V | 200°C | - | - | - | - |
|
|
M3833 BK001CABLE 8COND 16AWG BLACK |
4,667 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 8 | 16 AWG | 7/0.0192" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.429" (10.90mm) | - | 1000.0' (304.8m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
02725.99.01CABLE 3COND 12AWG BLACK 1=1FT |
2,107 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 12 AWG | 65/30 | Copper, Bare | Carolprene | 0.595" (15.11mm) | - | - | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
02725.XX.04CABLE 3COND 12AWG BLACK |
3,538 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 12 AWG | 65/30 | Copper, Bare | Carolprene | 0.595" (15.11mm) | - | - | Black | - | - | 600 V | -40°C ~ 90°C | Cord and Cordset | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
6072C BK001MULTI-PAIR 4COND 22AWG BLACK |
2,368 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 22 AWG | Solid | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.374" (9.50mm) | Foil | 1000.0' (304.8m) | Black | UL Style 2668 | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0400" (1.016mm) | Foam Polypropylene (FPP) | - |
|
|
M4771 SL002MULTI-PAIR 6COND 22AWG SLATE |
4,228 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.248" (6.30mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

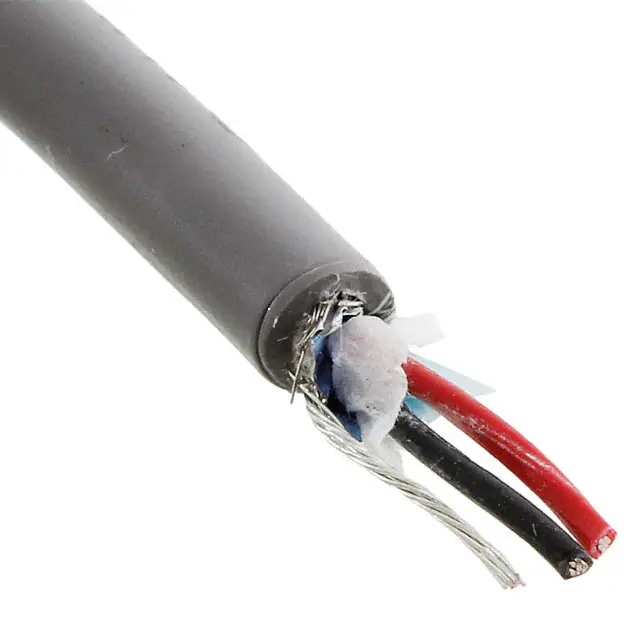

86102CY SL002CABLE 2COND 26AWG SLATE SHLD |
1,036 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 2 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.182" (4.62mm) | Foil, Braid | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility, Drain Wire | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
1552200003CABLE 3COND 24AWG BLACK 1500M |
3,495 |
|
Datasheet |
Flamar 155220 | Bulk | Active | Multi-Conductor | 3 | 24 AWG | 32/0.0039" | Copper, Bare | Weld-Slag Oil Resistant (WSOR) | 0.177" (4.50mm) | - | 4921' (1500.0m) | Black | UL Style 21215 | - | 600 V | -25°C ~ 80°C | Industrial, Signal, Control | 0.0098" (0.250mm) | Thermoplastic Elastomer (TPE) | - |
|
|
1552200006CABLE 3COND 24AWG GRAY 1500M |
1,367 |
|
Datasheet |
Flamar 155220 | Bulk | Active | Multi-Conductor | 3 | 24 AWG | 32/0.0039" | Copper, Bare | Weld-Slag Oil Resistant (WSOR) | 0.177" (4.50mm) | - | 4921' (1500.0m) | Gray | UL Style 21215 | - | 600 V | -25°C ~ 80°C | Industrial, Signal, Control | 0.0098" (0.250mm) | Thermoplastic Elastomer (TPE) | - |
|
|
1552200009CABLE 3COND 24AWG YELLOW 1500M |
3,351 |
|
Datasheet |
Flamar 155220 | Bulk | Active | Multi-Conductor | 3 | 24 AWG | 32/0.0039" | Copper, Bare | Weld-Slag Oil Resistant (WSOR) | 0.177" (4.50mm) | - | 4921' (1500.0m) | Yellow | UL Style 21215 | - | 600 V | -25°C ~ 80°C | Industrial, Signal, Control | 0.0098" (0.250mm) | Thermoplastic Elastomer (TPE) | - |
|
|
1552200012CABLE 3COND 24AWG ORANGE 1500M |
3,653 |
|
Datasheet |
Flamar 155220 | Bulk | Active | Multi-Conductor | 3 | 24 AWG | 32/0.0039" | Copper, Bare | Weld-Slag Oil Resistant (WSOR) | 0.177" (4.50mm) | - | 4921' (1500.0m) | Orange | UL Style 21215 | - | 600 V | -25°C ~ 80°C | Industrial, Signal, Control | 0.0098" (0.250mm) | Thermoplastic Elastomer (TPE) | - |
|
|
3077F 0031000CABLE 2COND 22AWG ORG SHLD |
3,212 |
|
Datasheet |
DataBus® | Spool | Active | Multi-Conductor | 2 (1 Pair) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.196" (4.98mm) | Foil | 1000.0' (304.8m) | Orange | - | Drain Wire | 300 V | -30°C ~ 105°C | - | 0.0370" (0.940mm) | Polyolefin (PO) | - |
|

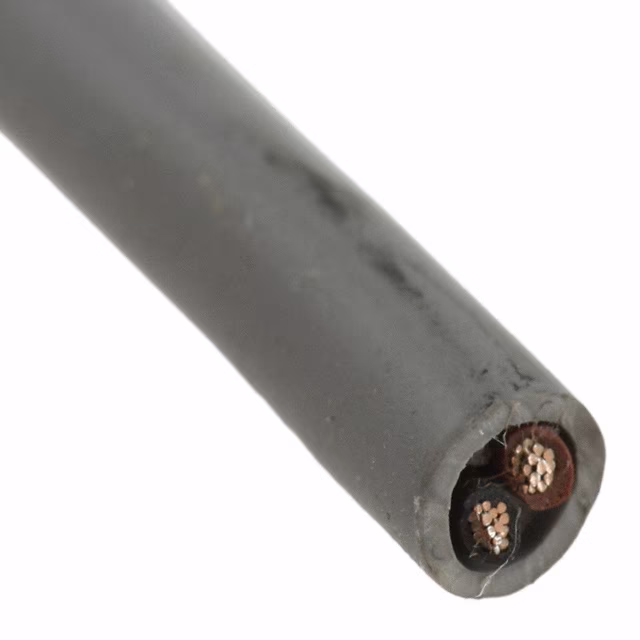

77020 SL001CABLE 2COND 18AWG SLATE |
4,105 |
|
Datasheet |
EcoCable® | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.202" (5.13mm) | - | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
