Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2461 SL199CABLE 8COND 24AWG SHLD 3000' |
4,649 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 8 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.282" (7.16mm) | Foil, Braid | 3000' (914.4m) | Slate | UL Style 2919 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M3805 BK199CABLE 7COND 18AWG BLACK 3000' |
1,739 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 7 | 18 AWG | 7/0.0152" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.362" (9.20mm) | - | 3000' (914.4m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55A0131-22-0/2/9CABLE 3COND 22AWG |
1,749 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 22 AWG | - | Copper, Tinned | - | 0.093" (2.36mm) | - | - | - | - | - | 600 V | -65°C ~ 150°C | - | - | - | - |
|
30-00494CABLE 3COND 32AWG BLK SHLD |
2,529 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 3 | 32 AWG | 19/32 | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.099" (2.51mm) | Spiral | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
|
82442 877U1000CABLE 2COND 22AWG NATURAL |
2,399 |
|
Datasheet |
Classics | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.113" (2.87mm) | - | 1000.0' (304.8m) | Natural | - | - | 300 V | 0°C ~ 60°C | Audio, Control, Instrumentation | 0.0145" (0.368mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|

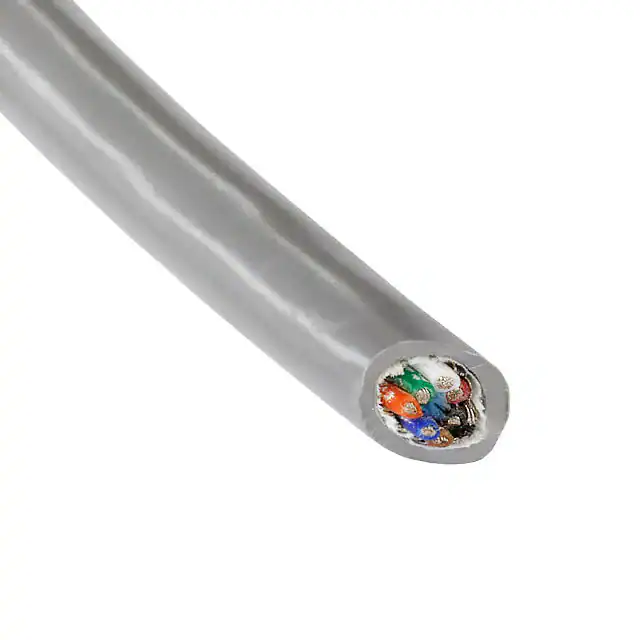

882207 SL002CABLE 7COND 22AWG SLATE |
3,409 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 7 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.215" (5.46mm) | - | 500.0' (152.4m) | Slate | UL Style 2464 | - | 300 V | -20°C ~ 105°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC0141-22-9/93/95/96CABLE 4COND 22AWG |
4,848 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 4 (1 Twisted Quad) | 22 AWG | 19/34 | Copper, Tinned | - | 0.107" (2.72mm) | - | - | - | - | - | 600 V | 150°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
02726.35.01CABLE 4COND 12AWG BLACK |
1,011 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 12 AWG | 65/30 | Copper, Bare | Carolprene | 0.650" (16.51mm) | - | 250.0' (76.2m) | Black | - | - | 600 V | -40°C ~ 90°C | Cord and Cordset | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
8723ZH 0601000MULTI-PAIR 4COND 22AWG |
1,515 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.196" (4.98mm) | Foil | 1000.0' (304.8m) | Chrome | - | Drain Wire | 300 V | -20°C ~ 105°C | - | 0.0340" (0.864mm) | Polypropylene (PP) | - |
|
|
3080A 01050002 #14 PVC/NYL FS PVC |
3,541 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
M2442 SL002CABLE 7COND 24AWG SLATE SHLD |
4,160 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 7 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.223" (5.66mm) | Foil, Braid | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
6101FH 8771000CABLE 3COND 14AWG NATURAL |
1,178 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 14 AWG | 19/27 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.245" (6.22mm) | Foil | 1000.0' (304.8m) | Natural | UL Style CL2P | Drain Wire, Rip Cord | 150 V | - | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
2214C SL021MULTI-PAIR 8COND 22AWG |
4,410 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.266" (6.76mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 150 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M5391 NC001CABLE 3COND 18AWG SHLD |
1,517 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.263" (6.68mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M5393 SL001CABLE 3COND 18AWG SHLD |
1,355 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.263" (6.68mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
02725.85.01CABLE 3COND 12AWG BLACK |
1,224 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 12 AWG | 65/30 | Copper, Bare | Carolprene | 0.595" (15.11mm) | - | 250.0' (76.2m) | Black | - | - | 600 V | -40°C ~ 90°C | Cord and Cordset | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
M2463 SL001CABLE 10COND 24AWG SHLD |
1,056 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 10 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.320" (8.13mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2919 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
89033.46.02CABLE 3COND 12AWG WHITE |
4,608 |
|
- |
Ultra Flex® | Spool | Active | Multi-Conductor | 3 | 12 AWG | 65/30 | Copper, Annealed Bare | Thermoplastic Elastomer (TPE) | 0.443" (11.25mm) | - | 5000' (1524.0m) | White | - | Oil Resistant | 300 V | -50°C ~ 105°C | - | 0.0300" (0.762mm) | Thermoplastic Elastomer (TPE) | - |
|
|
1552100052CABLE 3COND 22AWG BLACK 600M |
2,872 |
|
Datasheet |
Flamar 155210 | Spool | Active | Multi-Conductor | 3 | 22 AWG | 42/0.0039" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.189" (4.80mm) | - | 1968.5' (600.0m) | Black | UL Style 2464 | - | 300 V | 5°C ~ 80°C | Industrial, Signal, Control | 0.0098" (0.250mm) | Thermoplastic Elastomer (TPE) | - |
|
|
1552100055CABLE 3COND 22AWG GRAY 600M |
3,536 |
|
Datasheet |
Flamar 155210 | Spool | Active | Multi-Conductor | 3 | 22 AWG | 42/0.0039" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.189" (4.80mm) | - | 1968.5' (600.0m) | Gray | UL Style 2464 | - | 300 V | 5°C ~ 80°C | Industrial, Signal, Control | 0.0098" (0.250mm) | Thermoplastic Elastomer (TPE) | - |
