Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6201FE 877500CABLE 3COND 16AWG NAT SHLD |
2,205 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 16 AWG | 19/29 | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.195" (4.95mm) | Foil | 500.0' (152.4m) | Natural | UL Style CMP | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
55A0821-22-2/6CABLE 2COND 22AWG |
3,698 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 19/34 | Copper, Tinned | - | 0.100" (2.54mm) | - | - | - | - | - | 600 V | 150°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
9180 06010002 #26 FHDPE FS FRPVC |
2,878 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.144" (3.66mm) | Foil | 1000.0' (304.8m) | Chrome | UL Style CMR | - | 300 V | -40°C ~ 75°C | Audio, Communication, Control | 0.0220" (0.559mm) | Foam Polyethylene (FPE) | - |
|
|
9180 Z4B10002 #26 FHDPE FS FRPVC |
2,297 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.144" (3.66mm) | Foil | 1000.0' (304.8m) | Violet | UL Style CMR | - | 300 V | -40°C ~ 75°C | Audio, Communication, Control | 0.0220" (0.559mm) | Foam Polyethylene (FPE) | - |
|
|
M39116 SL001CABLE 3COND 20AWG SHLD |
1,849 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 20 AWG | 19/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.238" (6.05mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 105°C | - | 0.0380" (0.965mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC1221-18-9/96-0CS2502CABLE 2COND 18AWG BLACK SHLD |
1,355 |
|
Datasheet |
- | Bulk | Obsolete | Multi-Conductor | 2 | 18 AWG | 19/30 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.158" (4.01mm) | Braid | - | Black | - | - | 600 V | 150°C | - | 0.0070" (0.178mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
8443MN 008100CABLE 3COND 22AWG GRAY |
4,228 |
|
Datasheet |
SpaceMaker™ | Spool | Active | Multi-Conductor | 3 | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.140" (3.56mm) | - | 100.0' (30.5m) | Gray | UL Style 2937 | - | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - |
|
C3063.30.86CABLE 4COND 18AWG NATURAL |
4,076 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 4 | 18 AWG | 7/26 | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC) | 0.185" (4.70mm) | Foil | 1000.0' (304.8m) | Natural | ASTM B-3 | Drain Wire, Rip Cord | 150 V | 0°C ~ 75°C | Communication, Control | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
89013.XX.01CABLE 3COND 16AWG BLACK |
2,699 |
|
- |
Ultra Flex® | Spool | Active | Multi-Conductor | 3 | 16 AWG | 26/30 | Copper, Annealed Bare | Thermoplastic Elastomer (TPE) | 0.338" (8.59mm) | - | - | Black | - | Oil Resistant | 300 V | -50°C ~ 105°C | - | 0.0300" (0.762mm) | Thermoplastic Elastomer (TPE) | - |
|
|
89053.XX.01CABLE 3COND 18AWG BLACK |
4,264 |
|
- |
Ultra Flex® | Spool | Active | Multi-Conductor | 3 | 18 AWG | 16/30 | Copper, Annealed Bare | Thermoplastic Elastomer (TPE) | 0.372" (9.45mm) | - | - | Black | - | Oil Resistant | 600 V | -50°C ~ 105°C | - | 0.0300" (0.762mm) | Thermoplastic Elastomer (TPE) | - |
|
|
1800B T5X500#24 FHDPE FS PR PVC |
4,225 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.185" (4.70mm) | Foil | 500.0' (152.4m) | Gray | UL Style CMR | Drain Wire | 300 V | -30°C ~ 60°C | Audio | 0.0230" (0.584mm) | Foam Polyethylene (FPE) | - |
|
M3421 SL001MULTI-PAIR 6COND 24AWG |
3,331 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.269" (6.83mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2919 | - | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Polypropylene (PP) | - |
|

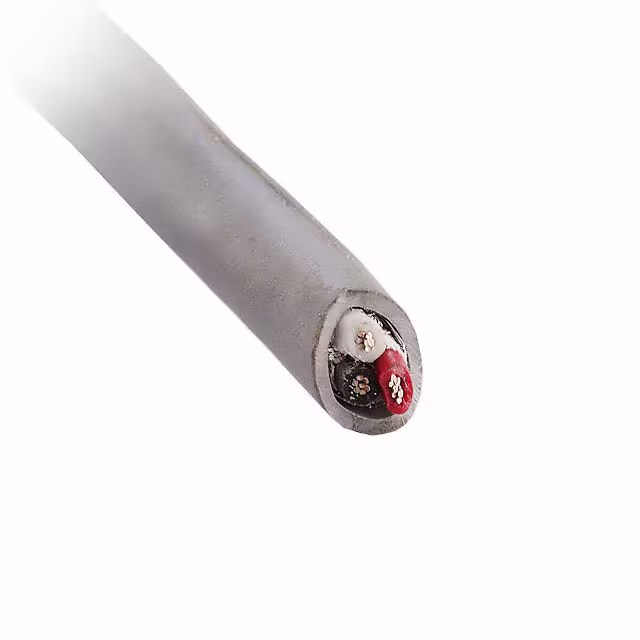

M2403 SL001CABLE 3COND 28AWG SHLD |
2,984 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.165" (4.19mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
8737 06050001 PR #22 PVC SHLD PVC |
3,925 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.180" (4.57mm) | Spiral | 5000' (1524.0m) | Chrome | UL Style CMG | - | 300 V | -20°C ~ 80°C | Audio, Instrumentation | 0.0250" (0.635mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC4121-22-2/6-9CABLE 2COND 22AWG WHITE |
1,676 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.096" (2.44mm) | - | - | White | - | - | 600 V | 150°C | - | 0.0065" (0.165mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55PC1121-22-0/9-9CS2753CABLE 2COND 22AWG WHITE SHLD |
3,604 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.114" (2.89mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0065" (0.165mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
86202 SL001CABLE 2COND 24AWG SLATE |
3,994 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 2 | 24 AWG | 10/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.172" (4.37mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M59237CAT6A 4PR F/UTP CMP RED-REEL |
4,157 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MMF006504CABLE 3COND 30AWG |
3,803 |
|
- |
- | Spool | Active | Multi-Conductor | 3 | 30 AWG | - | Copper, Tinned | - | 0.010" (0.25mm) | - | 100.0' (30.5m) | - | - | - | - | -50°C ~ 80°C | - | - | Poly-Vinyl Chloride (PVC) | - |
|
|
MMF006518CABLE 4COND 26AWG |
1,544 |
|
- |
- | Spool | Active | Multi-Conductor | 4 | 26 AWG | - | Copper, Tinned | - | 0.016" (0.41mm) | - | 100.0' (30.5m) | - | - | - | - | -50°C ~ 80°C | - | - | Poly-Vinyl Chloride (PVC) | - |
