Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C2537A.46.10CABLE 3COND 16AWG GRAY SHLD |
2,911 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 16 AWG | 19/0.0117" | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.325" (8.26mm) | Foil | 5000' (1524.0m) | Gray | ASTM B-33 | Drain Wire | 600 V | -20°C ~ 75°C | Communication, Control | 0.0320" (0.813mm) | Polyethylene (PE) | - |
|
M39056 BK002CABLE 2COND 18AWG BLACK |
1,414 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 19/30 | Copper, Tinned | Polyethylene (PE) | 0.283" (7.19mm) | - | 500.0' (152.4m) | Black | - | - | 600 V | -20°C ~ 90°C | - | 0.0480" (1.219mm) | Poly-Vinyl Chloride (PVC) | - |
|
1502R 01050002 #18 PVC +2 FS #22 FHDPEFRPVC |
1,338 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (1 Pair + 2) | 18 AWG, 22 AWG | 16/30; 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.250" (6.35mm) | Foil | 5000' (1524.0m) | Black | UL Style CMG | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | Control | 0.0390" (0.991mm) | Foam Polyethylene (FPE) | - |
|
|
6309UE 8771000CABLE 12COND 18AWG NATURAL |
1,447 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 12 | 18 AWG | 7/26 | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.287" (7.29mm) | - | 1000.0' (304.8m) | Natural | UL Style CMP | Rip Cord | 300 V | 0°C ~ 75°C | Security, Sound | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|
|
44A1121-20-2/6-9-MXCABLE 2COND 20AWG WHITE SHLD |
2,220 |
|
Datasheet |
- | Bag | Active | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.148" (3.76mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Polyvinylidene Fluoride (PVDF) | - |
|
|
44A1121-20-9/9-9-MXCABLE 2COND 20AWG WHITE SHLD |
1,762 |
|
Datasheet |
- | Bag | Active | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.148" (3.76mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Polyvinylidene Fluoride (PVDF) | - |
|
|
44A1121-20-2/9-9CABLE 2COND 20AWG WHITE SHLD |
1,151 |
|
Datasheet |
- | Bag | Active | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.148" (3.76mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Polyvinylidene Fluoride (PVDF) | - |
|
|
55A0122-20-0/9CABLE 2COND 20AWG |
3,467 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 20 AWG | - | Copper, Silver Coated | - | 0.100" (2.54mm) | - | - | - | - | - | 600 V | -65°C ~ 200°C | - | - | - | - |
|
|
02766.99.01CABLE 4COND 16AWG BLACK 1=1FT |
4,882 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 4 | 16 AWG | 26/30 | Copper, Bare | Carolprene | 0.420" (10.67mm) | - | - | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|

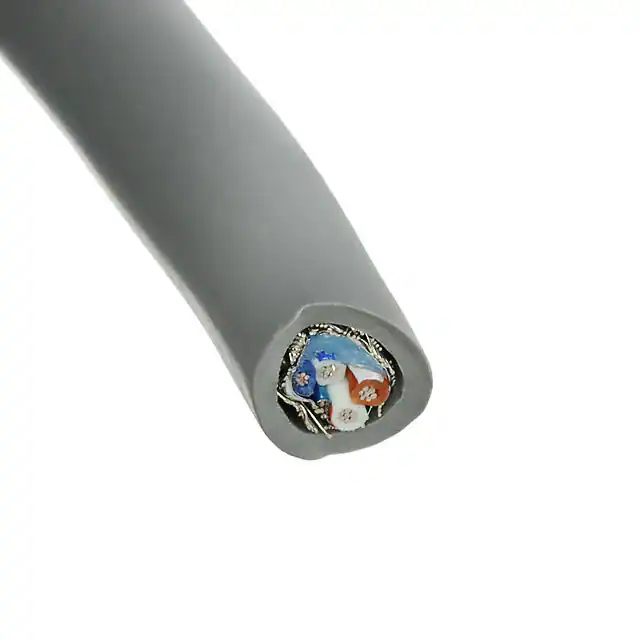

M3420 SL002MULTI-PAIR 4COND 24AWG SLATE |
1,011 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.257" (6.53mm) | Foil, Braid | 500.0' (152.4m) | Slate | UL Style 2919 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Polypropylene (PP) | - |
|
|
44A0131-22-0/2/9-MXCABLE 3COND 22AWG MULTIPLE |
1,409 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 (1 Triad Twisted) | 22 AWG | 19/34 | Copper, Tinned | - | 0.102" (2.59mm) | - | - | Multiple | - | - | 600 V | -65°C ~ 150°C | - | - | - | - |
|
86102 SL001CABLE 2COND 26AWG SLATE |
3,011 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 2 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.162" (4.11mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
C2406A.41.10CABLE 3COND 16AWG GRAY |
1,830 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.283" (7.19mm) | - | 1000.0' (304.8m) | Gray | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
09806.46.01CABLE 6COND 18AWG BLACK |
3,116 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 18 AWG | 16/30 | Copper, Bare | Super Vu-Tron® | 0.495" (12.57mm) | - | 5000' (1524.0m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
M39077 SL001CABLE 2COND 16AWG SLATE |
1,090 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.261" (6.63mm) | - | 1000.0' (304.8m) | Slate | - | - | 300 V | -20°C ~ 105°C | - | 0.0380" (0.965mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M3207 SL001CABLE 3COND 20AWG SHLD |
3,106 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.216" (5.49mm) | Braid | 1000.0' (304.8m) | Slate | UL Style 2095 | - | 300 V | -20°C ~ 80°C | - | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
02602.41T.05CABLE 3COND 18AWG YELLOW |
3,257 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 18 AWG | 41/34 | Copper, Tinned | Super Vu-Tron® Supreme | 0.320" (8.13mm) | - | 1000.0' (304.8m) | Yellow | - | - | 300 V | -50°C ~ 105°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
44A1121-22-9/92-9CABLE 2COND 22AWG WHITE SHLD |
1,968 |
|
Datasheet |
- | Bag | Active | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.132" (3.35mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Polyvinylidene Fluoride (PVDF) | - |
|
|
376589-000CABLE 2COND 22AWG BLACK SHLD |
3,071 |
|
Datasheet |
- | Bag | Active | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.132" (3.35mm) | Braid | - | Black | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Polyvinylidene Fluoride (PVDF) | - |
|
M4634 SL002CABLE 3COND 22AWG SLATE SHLD |
4,453 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.179" (4.55mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
