Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6623 WH005CABLE 3COND 24AWG WHITE 100' |
1,486 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (XLPVC), Irradiated | 0.162" (4.11mm) | - | 100.0' (30.5m) | White | UL Style 2576 | - | 300 V | -55°C ~ 105°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
75032 GR005CABLE CAT5E 4COND 22AWG GRN 100' |
3,150 |
|
Datasheet |
Xtra-Guard® Industrial Ethernet Flex | Spool | Active | Multi-Pair, Cat5e | 4 (2 Pair Twisted) | 22 AWG | 19/34 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.310" (7.87mm) | Foil, Braid | 100.0' (30.5m) | Green | UL Style 2463 | Oil Resistant, UV Resistant | 600 V | -40°C ~ 80°C | Industrial, Network | 0.0400" (1.016mm) | Polyethylene (PE) | - |
|
6339 SL002CABLE 3CON 22AWG SLATE SHLD 500' |
2,163 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.198" (5.03mm) | Foil, Braid | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
77105 SL005CABLE 5CON 24AWG SLATE SHLD 100' |
4,365 |
|
Datasheet |
EcoCable® | Spool | Active | Multi-Conductor | 5 | 24 AWG | 7/32 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.192" (4.88mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
65002 SL002CABLE 2COND 20AWG SLATE 500' |
2,338 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 2 | 20 AWG | 10/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.238" (6.05mm) | - | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
65609 SL005CABLE 9COND 16AWG SLATE 100' |
1,596 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 9 | 16 AWG | 26/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.509" (12.93mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0410" (1.041mm) | Poly-Vinyl Chloride (PVC) | - |
|
86605CY SL005MULTI-PAIR 10COND 24AWG 100' |
3,967 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 24 AWG | 10/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.314" (7.98mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility, Drain Wire | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
5452C SL005MULTI-PAIR 4CON 20AWG SLATE 100' |
2,047 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.302" (7.67mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
901003CY SL005CABLE 3CON 10AWG SLATE SHLD 100' |
1,609 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 10 AWG | 105/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.544" (13.82mm) | Braid | 100.0' (30.5m) | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0650" (1.651mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
25010 BK005CABLE 10COND 22AWG BLACK 100' |
2,586 |
|
Datasheet |
Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 10 | 22 AWG | 7/30 | Copper, Tinned | Polyurethane (PU) | 0.268" (6.81mm) | - | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
M13194 SL002MULTI-PAIR 10COND 24AWG 500' |
1,333 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.267" (6.78mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
78344 SL005CABLE 4CON 20AWG SLATE SHLD 100' |
3,104 |
|
Datasheet |
EcoCable® Mini | Spool | Active | Multi-Conductor | 4 | 20 AWG | 19/32 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.196" (4.98mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
E2262S.41.86CABLE 2COND 12AWG NATURAL |
3,524 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 12 AWG | 19/0.0185" | Copper, Bare | Poly-Vinyl Chloride (PVC), Plenum | 0.244" (6.20mm) | Foil | 1000.0' (304.8m) | Natural | - | Drain Wire | 300 V | 0°C ~ 75°C | Alarm, Security, Sound | 0.0110" (0.279mm) | Poly-Vinyl Chloride (PVC) | - |
|
5668 SL005CABLE 4COND 26AWG SLATE 100' |
2,763 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 4 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.162" (4.11mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

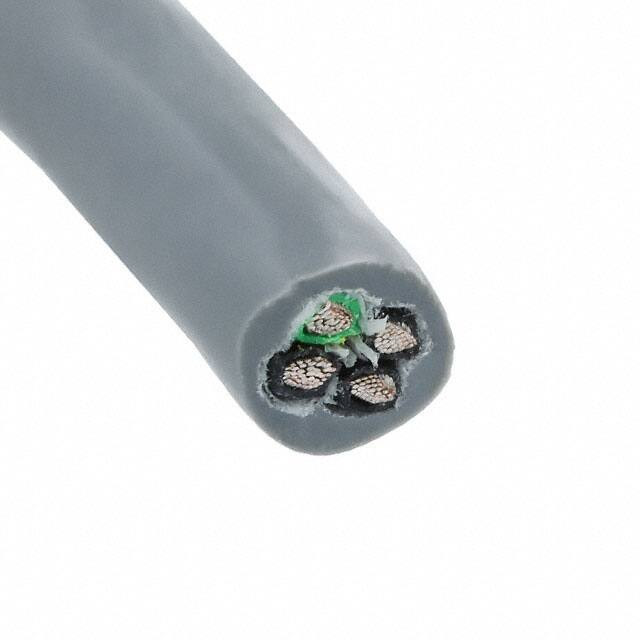

80053 SL005CABLE 4COND 14AWG SLATE 100' |
4,624 |
|
Datasheet |
EcoFlex® PUR | Spool | Active | Multi-Conductor | 4 | 14 AWG | 105/34 | Copper, Tinned | Polyurethane (PU) | 0.301" (7.65mm) | - | 100.0' (30.5m) | Slate | - | - | 600 V | -50°C ~ 90°C | - | 0.0319" (0.810mm) | Polyphenylene Ether (PPE) | - |
|
30-01927CABLE 5COND 24AWG BLACK 502' |
3,502 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 5 | 24 AWG | 26/38 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.157" (3.99mm) | - | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|

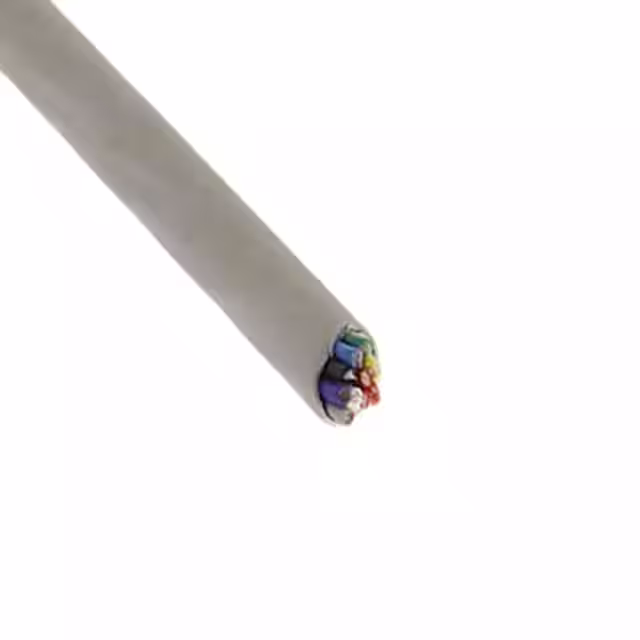

78140 SL005CABLE 10COND 22AWG SHLD 100' |
4,224 |
|
Datasheet |
EcoCable® Mini | Spool | Active | Multi-Conductor | 10 | 22 AWG | 19/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.222" (5.64mm) | Foil | 100.0' (30.5m) | Slate | UL Style 21460 | Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
1550643CABLE 8COND 24AWG BLK SHLD 100M |
3,547 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 8 | 24 AWG | - | Copper, Bare | Polyurethane (PU) | 0.232" (5.89mm) | Braid | 328.1' (100.0m) | Black | - | - | 300 V | -25°C ~ 80°C | - | 0.0197" (0.500mm) | Polypropylene (PP) | - |
|
5272C SL005MULTI-PAIR 4CON 24AWG SLATE 100' |
2,862 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.240" (6.10mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
6064C SL005MULTI-PAIR 8CON 18AWG SLATE 100' |
2,672 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.456" (11.58mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
