Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9945 0605000CABLE 9COND 22AWG CHRM SHD |
4,880 |
|
Datasheet |
Classics | Spool | Active | Multi-Conductor | 9 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.280" (7.11mm) | Foil, Braid | 5000' (1524.0m) | Chrome | UL Style 2464 | - | 300 V | -30°C ~ 80°C | Computer | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5610B1201 NC005CABLE 2COND 12AWG SHLD |
4,826 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 12 AWG | 19/0.0185" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.368" (9.35mm) | Foil | 100.0' (30.5m) | - | - | Drain Wire | 300 V | -20°C ~ 105°C | - | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC) | - |
|

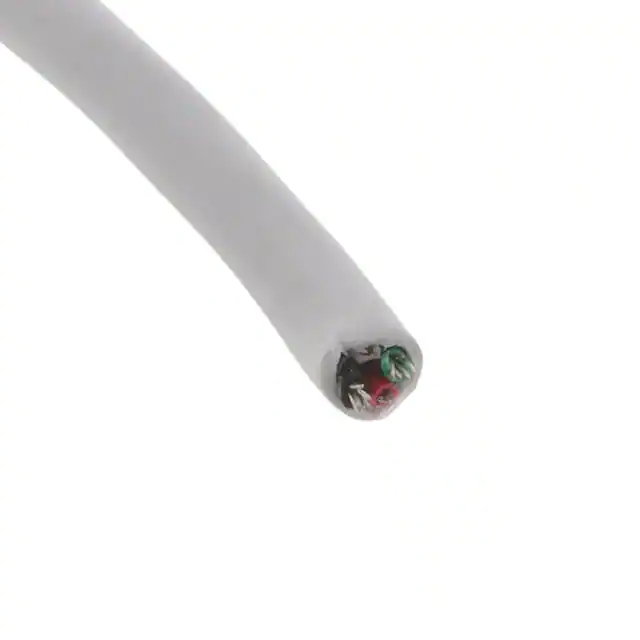

6624 WH002CABLE 4COND 24AWG WHITE |
4,490 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (XLPVC), Irradiated | 0.173" (4.39mm) | - | 500.0' (152.4m) | White | UL Style 2576 | - | 300 V | -55°C ~ 105°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
80142 SL199CABLE 3COND 16AWG SLATE SHLD |
2,971 |
|
Datasheet |
EcoFlex® PUR | Bulk | Active | Multi-Conductor | 3 | 16 AWG | 65/34 | Copper, Tinned | Polyurethane (PU) | 0.269" (6.83mm) | Braid | - | Slate | - | - | 600 V | -50°C ~ 90°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
127925R J225000ARMORED CAT6 IE UL CM |
4,388 |
|
- |
DataTuff® | Bulk | Active | Multi-Pair, Cat6 | 8 (4 Pair Twisted) | 23 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.600" (15.24mm) | - | - | - | - | - | 300 V | -40°C ~ 75°C | - | - | Polyolefin (PO) | - |
|
|
127925R 0105000ARMORED CAT6 IE UL CM |
4,026 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9552 0605000MULTI-PAIR 4COND 18AWG |
1,968 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair) | 18 AWG | 19/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.368" (9.35mm) | Foil | 5000' (1524.0m) | Chrome | UL Style 2464 | Direct Burial, Drain Wire, Ripcord, UV Resistant | - | -30°C ~ 105°C | Industrial, Signal, Control | 0.0420" (1.067mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
87004CY BK199CABLE 4COND 24AWG BLK SHLD 1000' |
4,760 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 24 AWG | 7/32 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.261" (6.63mm) | Spiral | 1000.0' (304.8m) | Black | UL Style 20234 | - | 600 V | - | - | 0.0500" (1.270mm) | Thermoplastic Elastomer (TPE) | - |
|
|
M33837 BK199CABLE 12 COND 16AWG BLACK 3000' |
4,897 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 12 | 16 AWG | 7/0.0192" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.549" (13.94mm) | Foil | 3000' (914.4m) | Black | - | Drain Wire | 600 V | -25°C ~ 90°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M33819 BK002CABLE 19COND 18AWG BLACK SHLD |
1,208 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 19 | 18 AWG | 7/0.0152" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.573" (14.55mm) | Foil | 500.0' (152.4m) | Black | - | Drain Wire | 600 V | -25°C ~ 90°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC2146-24-CML4-9CS2502CABLE 4COND 24AWG WHITE SHLD |
2,346 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 4 | 24 AWG | 19/36 | Copper Alloy, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.115" (2.92mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0085" (0.216mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55PC2146-24-CML4-9CS2970CABLE 4COND 24AWG WHITE SHLD |
3,108 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 4 | 24 AWG | 19/36 | Copper Alloy, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.115" (2.92mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0085" (0.216mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
9446MN 0081003 #14 PO FS PVC |
3,504 |
|
- |
SpaceMaker™ | Bulk | Active | Multi-Conductor | 3 | 14 AWG | 104/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.241" (6.12mm) | Foil | 100.0' (30.5m) | Gray | - | - | 300 V | -20°C ~ 80°C | - | 0.0160" (0.406mm) | Polypropylene (PP) | - |
|
30-01182CABLE 9COND 24AWG GRAY SHLD |
3,195 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 24 AWG | 41/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.224" (5.69mm) | Spiral | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|

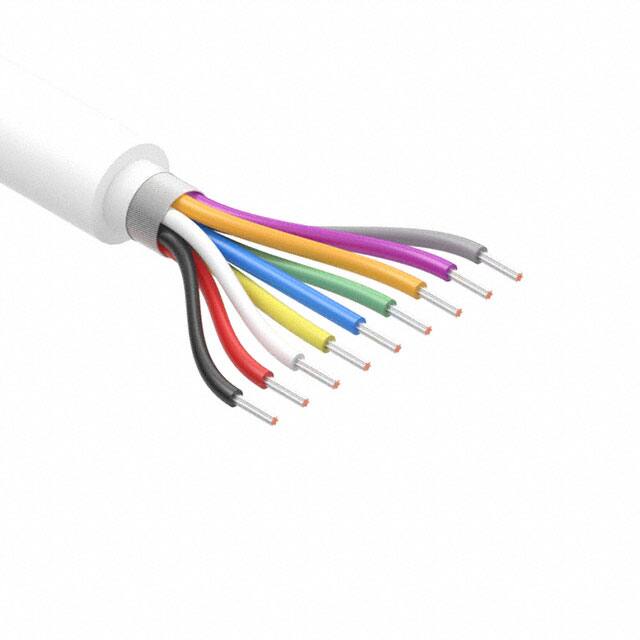

30-01181CABLE 9COND 24AWG WHITE SHLD |
4,463 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 24 AWG | 41/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.224" (5.69mm) | Spiral | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
|
30-01714CABLE CAT6A 8COND 26AWG BLK SHLD |
3,733 |
|
Datasheet |
CATLine | Spool | Active | Multi-Pair, Cat6a | 8 (4 Pair Twisted) | 26 AWG | 7/0.0063" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.283" (7.19mm) | Foil, Braid | - | Black | UL Style 20387 | Oil Resistant, UV Resistant | 300 V | - | Industrial, Network | 0.0299" (0.759mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
M3189 SL002MULTI-PAIR 38COND 24AWG |
4,275 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 38 (19 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.432" (10.97mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5945 SL001MULTI-PAIR 8COND 28AWG |
1,178 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.235" (5.97mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
3085A 5601000MULTI-PAIR 4COND 22/24AWG |
4,065 |
|
Datasheet |
DeviceBus® | Spool | Active | Multi-Pair | 4 (2 Pair) | 22 AWG, 24 AWG | 19/34; 19/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.280" (7.11mm) | Foil, Braid | 1000.0' (304.8m) | Yellow | - | Drain Wire, Oil Resistant, UV Resistant | 300 V | -30°C ~ 75°C | - | 0.0330" (0.838mm) | Foam Polyethylene (FPE), Poly-Vinyl Chloride (PVC) | - |
|
|
3085A 5602000MULTI-PAIR 4COND 22/24AWG |
3,790 |
|
Datasheet |
DeviceBus® | Spool | Active | Multi-Pair | 4 (2 Pair) | 22 AWG, 24 AWG | 19/34; 19/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.280" (7.11mm) | Foil, Braid | 2000.0' (609.6m) | Yellow | - | Drain Wire, Oil Resistant, UV Resistant | 300 V | -30°C ~ 75°C | - | 0.0330" (0.838mm) | Foam Polyethylene (FPE), Poly-Vinyl Chloride (PVC) | - |
