Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

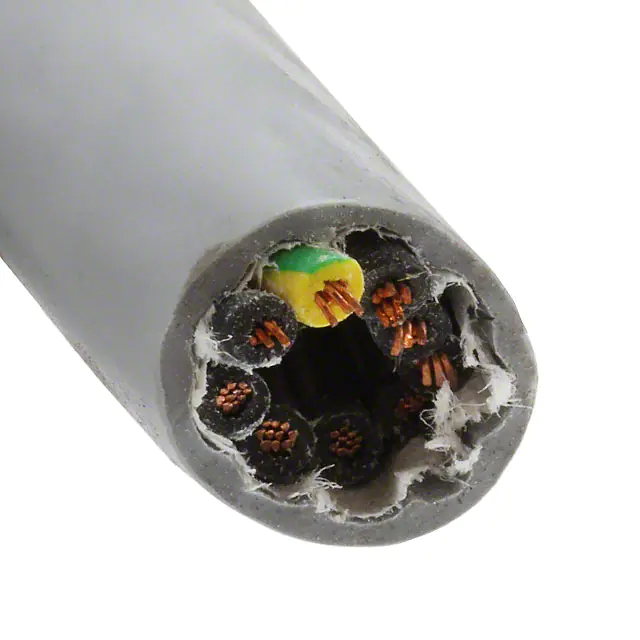

65009 SL002CABLE 9COND 20AWG SLATE |
4,196 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 9 | 20 AWG | 10/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.416" (10.57mm) | - | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
M64841 SL199CABLE 6COND 24AWG SHLD 3000' |
2,447 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 24 AWG | 7/32 | Copper, Tinned | Fluorinated Ethylene-Propylene (FEP) | 0.133" (3.38mm) | Foil | 3000' (914.4m) | Slate | - | Drain Wire | 300 V | -20°C ~ 150°C | - | 0.0098" (0.250mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
78223 SL001MULTI-PAIR 6COND 26AWG |
2,647 |
|
Datasheet |
EcoCable® Mini | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 26 AWG | 19/38 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.177" (4.50mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
5480L SL001MULTI-PAIR 20COND 24AWG |
4,897 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 20 (10 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.378" (9.60mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0250" (0.635mm) | Low Smoke Zero Halogen (LSZH) | - |
|
|
C0573A.41.10MULTI-PAIR 12COND 22AWG GRAY |
3,542 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 22 AWG | 7/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.469" (11.91mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 105°C | Communication, Control | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
C0573A.38.10MULTI-PAIR 12CON 22AWG GRAY 500' |
2,022 |
|
Datasheet |
- | Bulk | Active | Multi-Pair | 12 (6 Pair Twisted) | 22 AWG | 7/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.469" (11.91mm) | Foil | 500.0' (152.4m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 105°C | Communication, Control | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
73009W 008100CABLE 9COND 20AWG GRAY |
2,484 |
|
- |
MachFlex™ | Spool | Active | Multi-Conductor | 9 | 20 AWG | 10/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.416" (10.57mm) | - | 100.0' (30.5m) | Gray | UL Style 2587 | Oil Resistant | 600 V | - | Industrial, Signal, Control | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
9746 0601000MULTI-PAIR 8CON 22AWG CHRM |
1,353 |
|
Datasheet |
Classics | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.281" (7.14mm) | - | 1000.0' (304.8m) | Chrome | UL Style 2576 | - | - | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
7200A X4P500CABLE 2CON 24AWG GREEN SHLD |
2,314 |
|
Datasheet |
MachFlex™ | Spool | Active | Multi-Conductor | 2 (1 Pair) | 24 AWG | 41/40 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.261" (6.63mm) | Foil, Braid | 500.0' (152.4m) | Green | - | Drain Wire, Oil Resistant | 300 V | -20°C ~ 60°C | Industrial | 0.0450" (1.143mm) | Foam Polyethylene (FPE) | - |
|

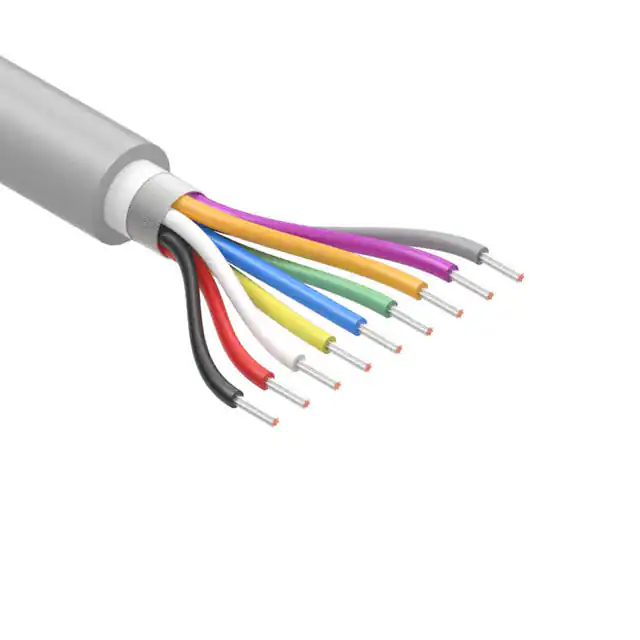

30-01188CABLE 9COND 28AWG GRAY SHLD |
2,513 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 28 AWG | 40/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.157" (3.99mm) | Spiral | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|

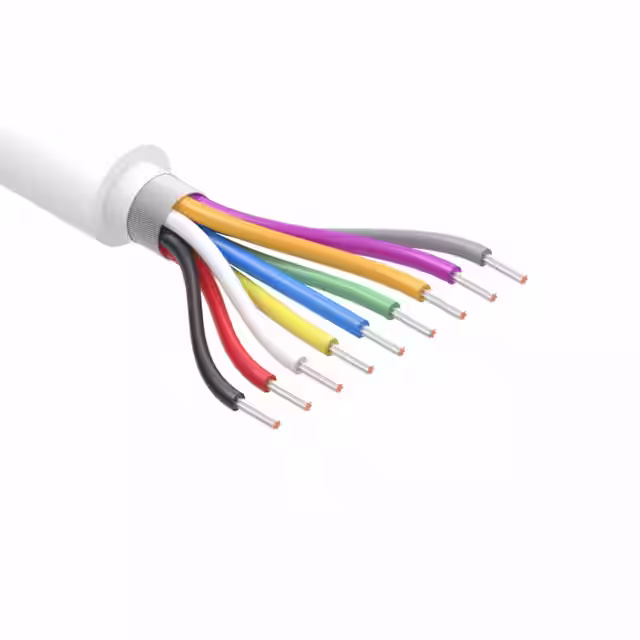

30-01187CABLE 9COND 28AWG WHITE SHLD |
4,621 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 28 AWG | 40/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.157" (3.99mm) | Spiral | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
|
55PC1141-24-9/93/95/96-9CABLE 4COND 24AWG WHITE SHLD |
2,566 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 4 | 24 AWG | 19/36 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.125" (3.18mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
44AM1141-16-1/2/3/7-9CABLE 4COND 16AWG WHITE SHLD |
1,969 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 4 | 16 AWG | 19/29 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.209" (5.31mm) | Braid | - | White | - | - | 600 V | -55°C ~ 150°C | - | 0.0120" (0.305mm) | Polyvinylidene Fluoride (PVDF) | - |
|
|
65005 SL199CABLE 5COND 20AWG SLATE 100' |
1,147 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 5 | 20 AWG | 10/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.305" (7.75mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0380" (0.965mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
73809W 0081000CABLE 9COND 18AWG GRAY |
2,827 |
|
- |
MachFlex™ | Spool | Active | Multi-Conductor | 9 | 18 AWG | 16/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.445" (11.30mm) | - | 1000.0' (304.8m) | Gray | UL Style 2587 | Oil Resistant | 600 V | - | Industrial, Signal, Control | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
01812.44.01CABLE 3COND 8AWG BLACK |
1,697 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 8 AWG | 65/26 | Copper, Bare | Carolprene | 0.695" (17.65mm) | - | 2500' (762.0m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0500" (1.270mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
35193 GR199CABLE 3COND 22AWG GRN SHLD 1000' |
3,002 |
|
Datasheet |
Xtra-Guard® 3 | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/30 | Copper, Tinned | Polyethylene (PE) | 0.179" (4.55mm) | Foil | 1000.0' (304.8m) | Green | - | Drain Wire, Rip Cord | 300 V | -30°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M8704020 BK005MULTI-PAIR 4COND 14AWG BLACK |
4,922 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 14 AWG | 7/0.0242" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.508" (12.90mm) | Foil | 100.0' (30.5m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55A1221-22-9/96-9CABLE 2COND 22AWG WHITE SHLD |
2,602 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 22 AWG | 19/0.0063" | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.123'' (3.12mm) | Braid | - | White | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
87740 0021000CABLE 2COND 18AWG RED |
1,246 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 18 AWG | 19/30 | Copper, Tinned | Polyvinylidene Fluoride (PVDF), Plenum | 0.136" (3.45mm) | - | 1000.0' (304.8m) | Red | UL Style CMP | - | 300 V | -20°C ~ 150°C | Audio, Control, Instrumentation | 0.0110" (0.279mm) | Fluorinated Ethylene-Propylene (FEP) | - |
