Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25462 BL199CABLE 2COND 20AWG BLU 1000=1000' |
2,822 |
|
Datasheet |
Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 2 | 20 AWG | 7/28 | Copper, Tinned | Polyurethane (PU) | 0.212" (5.38mm) | Foil | - | Blue | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M9706060 BK001MULTI-PAIR 12COND 16AWG |
2,350 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 16 AWG | 7/0.0192" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.580" (14.73mm) | Foil | 1000.0' (304.8m) | Black | - | - | 300 V | -20°C ~ 105°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
73603WS 0081000CABLE 3CON 16AWG GRAY SHLD |
2,287 |
|
Datasheet |
MachFlex™ | Spool | Active | Multi-Conductor | 3 | 16 AWG | 26/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.388" (9.86mm) | Braid | 1000.0' (304.8m) | Gray | UL Style 2587 | Oil Resistant | 600 V | -5°C ~ 90°C | Industrial, Signal, Control | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
02427.35.05CABLE 4COND 10AWG YELLOW |
3,384 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 10 AWG | 104/30 | Copper, Bare | Carolprene | 0.715" (18.16mm) | - | 250.0' (76.2m) | Yellow | - | - | 600 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
5933 SL001CABLE 3COND 28AWG SHLD |
1,060 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 3 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.172" (4.37mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
8675 060500CABLE 2COND 14AWG CHROME |
2,150 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 14 AWG | 19/27 | Copper, Bare | Poly-Vinyl Chloride (PVC) | - | - | 500.0' (152.4m) | Chrome | - | - | - | -20°C ~ 75°C | Alarm, Security, Sound | 0.0230" (0.584mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M1124 SL199CABLE 4COND 20AWG SHLD 3000' |
2,569 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.264" (6.71mm) | Braid | 3000' (914.4m) | Slate | UL Style 2094 | - | 300 V | -20°C ~ 75°C | - | 0.0350" (0.889mm) | Polyethylene (PE) | - |
|
|
76503TS 008100MULTI-PAIR 6COND 26AWG GRAY |
1,395 |
|
Datasheet |
MachFlex™ | Spool | Active | Multi-Pair | 6 (3 Pair) | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.254" (6.45mm) | Foil, Braid | 100.0' (30.5m) | Gray | UL Style 20006 | Drain Wire, Oil Resistant | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55A1132-24-MST3-9CS2275CABLE 3COND 24AWG WHITE SHLD |
2,268 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 24 AWG | - | Copper, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.113" (2.87mm) | Braid | - | White | - | - | 600 V | -65°C ~ 200°C | - | 0.0080" (0.203mm) | - | - |
|
55A1821-20-9/96-9CS2275CABLE 2COND 20AWG WHITE SHLD 1' |
2,517 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Multi-Conductor | 2 (1 Pair Twisted) | 20 AWG | - | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.151" (3.84mm) | Braid | 1.00' (0.30m) | White | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | - | - |
|

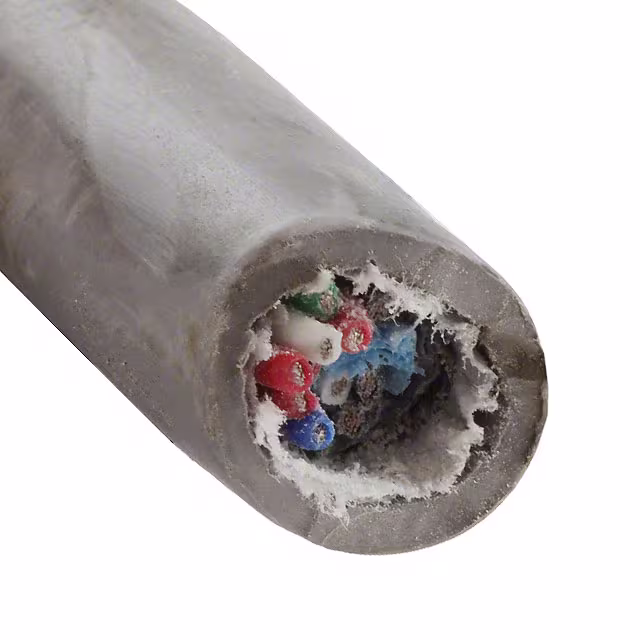

65809 SL002CABLE 9COND 18AWG SLATE |
2,157 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 9 | 18 AWG | 16/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.445" (11.30mm) | - | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
M38915 SL002CABLE 15COND 24AWG SLATE |
2,983 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 15 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.269" (6.83mm) | - | 500.0' (152.4m) | Slate | UL Style 2464 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC6146-22-9/96-9CS2861CABLE 2COND 22AWG WHITE SHLD |
3,443 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.140" (3.56mm) | Double Braid | - | White | - | - | 600 V | 200°C | - | 0.0070" (0.178mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
5012C BK199CABLE 2COND 24AWG BLACK 1000' |
3,265 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 2 | 24 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.156" (3.96mm) | - | 1000.0' (304.8m) | Black | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5021C BK199CABLE 2COND 22AWG BLK 1000=1000' |
4,996 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.168" (4.27mm) | - | - | Black | ISO 10993 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5012C BL199CBL 2COND 24AWG BLUE 1000=1000' |
2,186 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 2 | 24 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.156" (3.96mm) | - | - | Blue | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5012C RD199CBL 2COND 24AWG RED 1000=1000' |
2,944 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 2 | 24 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.156" (3.96mm) | - | - | Red | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5012C SL199CBL 2COND 24AWG SLATE 1000=1000' |
3,162 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 2 | 24 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.156" (3.96mm) | - | - | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5012C YL199CBL 2COND 24AWG YLW 1000=1000' |
1,978 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 2 | 24 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.156" (3.96mm) | - | - | Yellow | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5021C SL199MULT-PAIR 2COND 22AWG 1000=1000' |
3,407 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.168" (4.27mm) | - | - | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
