Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCCA31394-FT1COAX CBL BNC TO SMA |
3,484 |
|
Datasheet |
LCCA | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31084-FT1COAX CBL SMA TO FAKRA |
4,950 |
|
Datasheet |
- | Bulk | Active | SMA to Fakra | SMA Plug | Male | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31088-FT1COAX CBL SMA TO FAKRA |
1,296 |
|
Datasheet |
- | Bulk | Active | SMA to Fakra | SMA Plug | Male | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31086-FT1COAX CBL SMA TO FAKRA |
2,630 |
|
Datasheet |
- | Bulk | Active | SMA to Fakra | SMA Plug | Male | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31347-FT1COAX CBL BNC TO BNC |
4,263 |
|
Datasheet |
LCCA | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA30140-FT2COAX CBL N-TYPE TO N-TYPE |
4,426 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LC085TBJ | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
FMCA2559-12COAX CBL 7/16 DIN TO N-TYPE |
4,343 |
|
- |
- | Bag | Active | 7/16 DIN to N-Type | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
FMC00410-36COAX CBL BNC TO SMA |
3,437 |
|
- |
- | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | - | - | - |
|
|
FMCA2556-100CMCOAX CBL 7/16 DIN TO N-TYPE |
3,157 |
|
- |
- | Bag | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA31138-FT6COAX CBL SMA TO MCX |
4,474 |
|
Datasheet |
- | Bulk | Active | SMA to MCX | SMA Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
Q-0D0030005002FCOAX CBL BNC TO BNC |
3,899 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
|
LCCA31340-FT6COAX CBL BNC TO BNC |
1,074 |
|
Datasheet |
LCCA | Bulk | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0" (1.8m) 6.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|

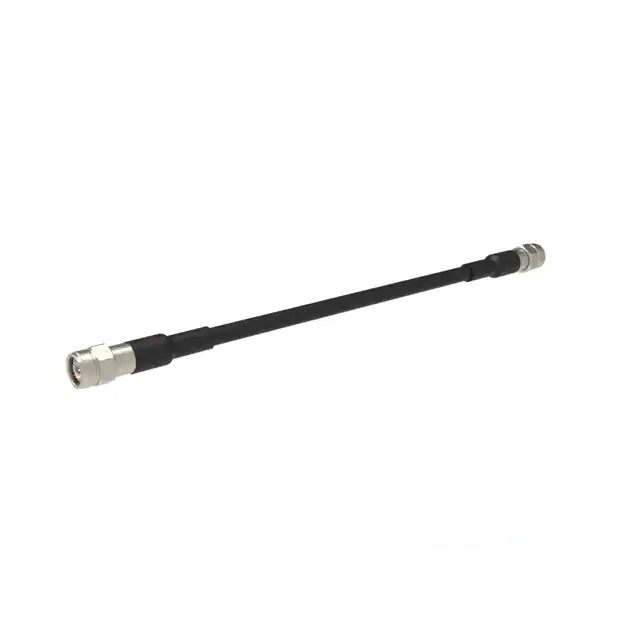

095-850-226M400COAX CBL TNC TO TNC |
4,673 |
|
Datasheet |
- | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 157.5" (4.0m) 13.1' | LMR 400 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LCCA31228-FT2COAX CBL FAKRA TO FAKRA |
3,142 |
|
Datasheet |
LCCA | Bulk | Active | Fakra to Fakra | Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31399-FT1.5COAX CBL BNC TO BNC |
4,692 |
|
Datasheet |
LCCA | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31394-FT1.5COAX CBL BNC TO SMA |
1,035 |
|
Datasheet |
LCCA | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00" (457.20mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
095-850-165M10LCOAX CBL BNC TO BNC |
2,098 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 393.7" (10.0m) 32.8' | Belden 1505A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
LCCA30362-FT5COAX CBL SMA TO SMA |
2,387 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0" (1.5m) 5.0' | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Black | - | - | - | - |
|
|
LCCA30568-FT2COAX CBL SMA TO TNC |
4,641 |
|
- |
- | Bag | Active | SMA to TNC | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LC085TB | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
LCCA30563-FT2COAX CBL SMA TO TNC |
3,043 |
|
- |
- | Bag | Active | SMA to TNC | SMA Jack | Female | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 24.00" (609.60mm) | LC085TB | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | - | - | - |
