Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCCA31130-FT2COAX CBL SMA TO FAKRA |
2,601 |
|
Datasheet |
- | Bulk | Active | SMA to Fakra | SMA Plug | Male | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
095-902-530-072COAX CBL SMA TO N-TYPE |
3,209 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0" (1.8m) 6.0' | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
LCCA31166-FT4COAX CBL BNC TO MCX |
3,239 |
|
Datasheet |
LCCA | Bulk | Active | BNC to MCX | BNC Jack | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
CCH58NMSM075CA RG58 N M SMA M FT 075 |
1,569 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LIS-C9-11431X-11716-02500-52COAX CBL 4.3/10 TO 7/16 DIN |
1,127 |
|
- |
LISCA | Bulk | Active | 4.3/10 to 7/16 DIN | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 98.4" (2.5m) 8.2' | - | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 125°C | - | - |
|
|
LCCA30857/VL-FT25COAX CBL HD-BNC TO HD-BNC |
3,930 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Violet | - | -30°C ~ 75°C | - | - |
|
|
LCCA31130-FT5COAX CBL SMA TO FAKRA |
3,270 |
|
Datasheet |
- | Bulk | Active | SMA to Fakra | SMA Plug | Male | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
CC223B-7.5COAX CBL BNC TO BNC |
3,560 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 90.0" (2.3m) 7.5' | RG-223 | - | - | 50 Ohms | - | Black | - | - | - | - |
|
|
LCCA31340-FT5COAX CBL BNC TO BNC |
2,990 |
|
Datasheet |
LCCA | Bulk | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0" (1.5m) 5.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|

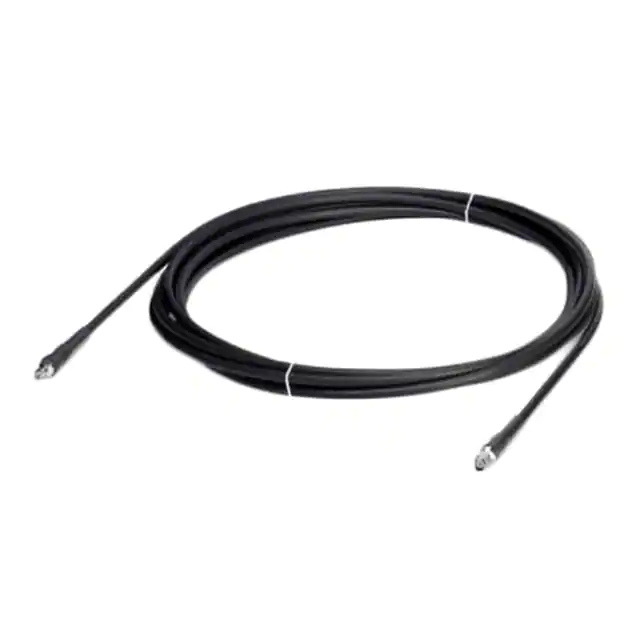

2900980COAX CBL SMA TO SMA |
3,270 |
|
Datasheet |
- | Bulk | Obsolete | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | Low Smoke Zero Halogen (LSZH) | - | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
175101-10-108COAX CBL N-TYPE TO N-TYPE |
2,379 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | LMR 400 | 50 Ohms | - | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
095-725-114M075COAX CBL SMPM TO SMPM |
1,087 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug, Right Angle | Female | Free Hanging (In-Line) | - | 29.53" (750.00mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
|
LCCA31166-FT6COAX CBL BNC TO MCX |
1,298 |
|
Datasheet |
LCCA | Bulk | Active | BNC to MCX | BNC Jack | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
PT40050NNCOAX CBL N-TYPE TO N-TYPE |
2,232 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 600.0" (15.2m) 50.0' | ATX 400 | - | - | - | - | Black | - | - | - | - |
|
|
LCCA31015-M1COAX CBL N-TYPE TO N-TYPE |
2,264 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 39.4" (1.0m) 3.3' | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30730/BK-FT6COAX CBL 1.0/2.3 TO 1.0/2.3 |
3,626 |
|
- |
- | Bag | Active | 1.0/2.3 to 1.0/2.3 | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Black | - | -30°C ~ 75°C | - | - |
|
|
LCCA30730/GR-FT6COAX CBL 1.0/2.3 TO 1.0/2.3 |
2,336 |
|
- |
- | Bag | Active | 1.0/2.3 to 1.0/2.3 | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Green | - | -30°C ~ 75°C | - | - |
|
|
LCCA31067-M1COAX CBL 2.2/5 TO QMA |
3,805 |
|
- |
- | Bag | Active | 2.2/5 to QMA | 2.2/5 Plug | Male | Free Hanging (In-Line) | - | QMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Blue | - | -40°C ~ 85°C | - | - |
|
|
LCCA31002-M1COAX CBL N-TYPE TO N-TYPE |
3,015 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | SPF-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -55°C ~ 200°C | - | - |
|
|
LCCA30730/RD-FT6COAX CBL 1.0/2.3 TO 1.0/2.3 |
2,661 |
|
- |
- | Bag | Active | 1.0/2.3 to 1.0/2.3 | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Red | - | -30°C ~ 75°C | - | - |
