Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMCA2735/OR-12COAX CBL 1.0/2.3 TO 1.0/2.3 |
4,905 |
|
- |
- | Bag | Active | 1.0/2.3 to 1.0/2.3 | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Red | - | -30°C ~ 75°C | - | - |
|
|
FMCA2735/BL-12COAX CBL 1.0/2.3 TO 1.0/2.3 |
4,854 |
|
- |
- | Bag | Active | 1.0/2.3 to 1.0/2.3 | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Blue | - | -30°C ~ 75°C | - | - |
|
|
FMCA2676/VL-120COAX CBL HD-BNC TO HD-BNC |
4,557 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Violet | - | -20°C ~ 75°C | - | - |
|
|
FMCA2676/BR-120COAX CBL HD-BNC TO HD-BNC |
3,224 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Brown | - | -20°C ~ 75°C | - | - |
|
|
FMCA2676/BK-120COAX CBL HD-BNC TO HD-BNC |
1,451 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Black | - | -20°C ~ 75°C | - | - |
|
|
FMCA2676/RD-120COAX CBL HD-BNC TO HD-BNC |
4,581 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Red | - | -20°C ~ 75°C | - | - |
|
|
FMCA2735/VL-12COAX CBL 1.0/2.3 TO 1.0/2.3 |
1,555 |
|
- |
- | Bag | Active | 1.0/2.3 to 1.0/2.3 | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Violet | - | -30°C ~ 75°C | - | - |
|
|
FMCA2602/BL-120COAX CBL BNC TO HD-BNC |
1,033 |
|
- |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Blue | - | -30°C ~ 75°C | - | - |
|
|
FMCA2735/YW-12COAX CBL 1.0/2.3 TO 1.0/2.3 |
3,498 |
|
- |
- | Bag | Active | 1.0/2.3 to 1.0/2.3 | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Yellow | - | -30°C ~ 75°C | - | - |
|
|
R284C0351029COAX CBL N-TYPE TO N-TYPE |
1,391 |
|
- |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
R284C0351031COAX CBL N-TYPE TO N-TYPE |
3,464 |
|
- |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 19.69" (500.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
175101-R1-M1.00COAX CBL N-TYPE TO N-TYPE |
4,147 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | Hand Formable .085 | - | - | 50 Ohms | - | Gray | - | - | - | - |
|
095-850-192M125COAX CBL BNC TO HD-BNC |
1,342 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 49.2" (1.3m) 4.1' | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|

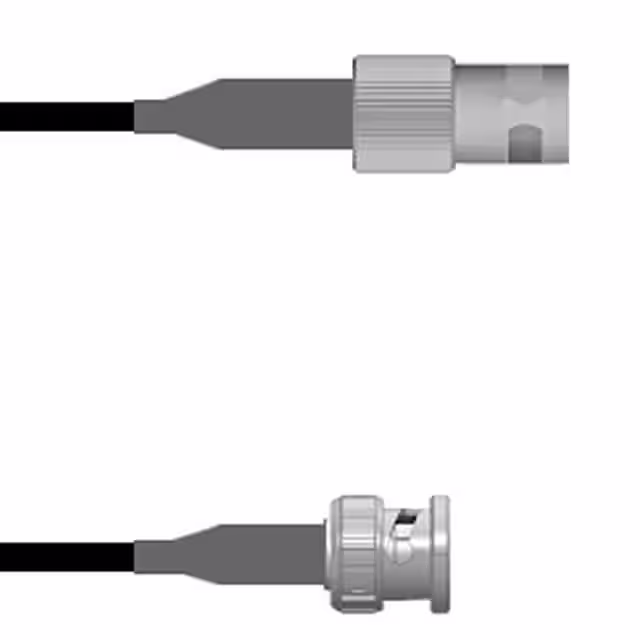

Q-0900L0008001FCOAX CBL BNC TO BNC |
1,270 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
|
FMC0222085LF-06COAX CBL SMA TO SMP |
1,324 |
|
- |
- | Bag | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .047 | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
|
FMC0718315-48COAX CBL MCX TO SMC |
1,812 |
|
- |
- | Bag | Active | MCX to SMC | MCX Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
FMC1828315LF-12COAX CBL SMC TO SMC |
4,088 |
|
- |
- | Bag | Active | SMC to SMC | SMC Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | -65°C ~ 165°C | - | - |
|
|
LCCA30298-FT6COAX CBL 7/16 DIN TO SMA |
2,003 |
|
- |
- | Bag | Active | 7/16 DIN to SMA | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | SMA Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30235-FT10COAX CBL SMA TO TNC |
4,751 |
|
- |
- | Bag | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line), Right Angle | - | 120.0" (3.0m) 10.0' | LMR 200 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30304-FT6COAX CBL BNC TO TNC |
4,749 |
|
- |
- | Bag | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 72.0" (1.8m) 6.0' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
