Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9202468R0693COAX CBL BNC TO BNC |
3,200 |
|
Datasheet |
COAX-CBL-PMN | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | 4.95mm OD Coaxial Cable | - | - | 50 Ohms | 10 Hz|kHz | Black | Shielded | 50°C | - | - | |
|
|
9202524R0749COAX CBL BNC TO BNC |
4,097 |
|
Datasheet |
COAX-CBL-PMN | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | - | - | - | |
|
|
9202394R0619COAX CBL BNC TO BNC |
1,889 |
|
Datasheet |
COAX-CBL-PMN | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-223 DS | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | - | - | - | |
|
|
9202456R0681COAX CBL BNC TO BNC |
4,154 |
|
Datasheet |
COAX-CBL-PMN | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | - | - | - | |
|
095-850-269-300COAX CBL BNC TO BNC |
2,105 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | RG-58 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | -40°C ~ 80°C | - | - |
|
|
CBL-401-10FT-N1-N4COAX CBL N-TYPE TO N-TYPE |
1,061 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-400-21FT-N1-N1COAX CBL N-TYPE TO N-TYPE |
1,991 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 252.0" (6.4m) 21.0' | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
|
095-725-121-010COAX CBL SMP TO SMP |
1,775 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 10.000" (254.00mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
|
LCCA30291-FT3COAX CBL SMA TO N-TYPE |
1,900 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CC174S-2COAX CBL SMA TO SMA |
3,176 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | - | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CCSHR316-3COAX CBL SMA TO SMA |
1,180 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | - | - | 50 Ohms | - | Brown | - | -70°C ~ 200°C | - | - |
|
|
LCCA30259-FT1COAX CBL SMA TO TNC |
3,374 |
|
- |
- | Bag | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
FMC0709315LF-24COAX CBL MCX TO MMCX |
4,331 |
|
- |
- | Bag | Active | MCX to MMCX | MCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | -55°C ~ 155°C | - | - |
|
|
CC59A-150COAX CBL BNC TO BNC |
2,532 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 1800.0" (45.7m) 150.0' | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
|
CBL-401-10FT-S4-T1COAX CBL SMA TO TNC |
2,666 |
|
Datasheet |
CBL | Bulk | Active | SMA to TNC | SMA Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
|
RF058-05SR3-05SR3-0914COAX CBL RP-TNC TO RP-TNC |
4,735 |
|
Datasheet |
RF058 | Bulk | Active | RP-TNC to RP-TNC | RP-TNC Plug | Female | Free Hanging (In-Line) | - | RP-TNC Plug | Female | Free Hanging (In-Line) | - | - | RG-58 | - | - | 50 Ohms | 1 GHz | Violet | - | -50°C ~ 90°C | - | - |
|
095-850-294M200COAX CBL TNC TO TNC |
2,679 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
9202458R0683COAX CBL BNC TO BNC |
2,191 |
|
Datasheet |
COAX-CBL-PMN | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | RG-59B | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | Shielded | - | - | - | |
|

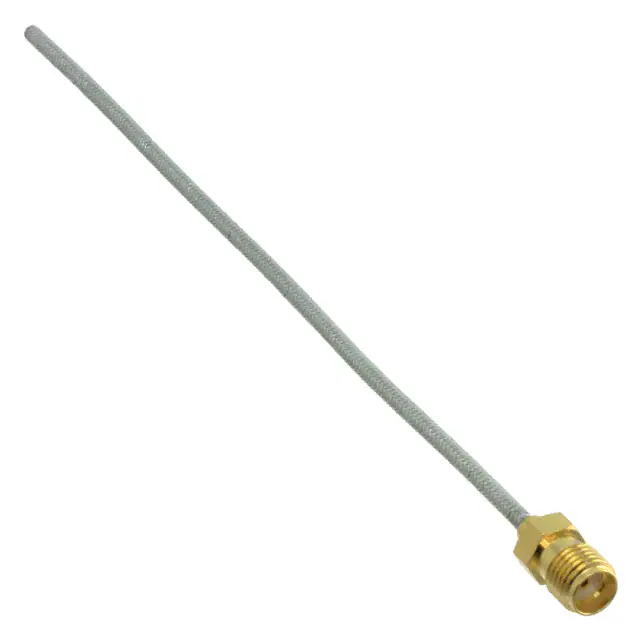

095-902-463-007COAX CBL SMA TO CABLE |
1,916 |
|
Datasheet |
- | Bulk | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 7.000" (177.80mm) | UT-085C | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -20°C ~ 75°C | - | - |
|
095-850-157M150COAX CBL 1.0/2.3 TO HD-BNC |
2,011 |
|
Datasheet |
- | Bulk | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | Belden 1694A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
