Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCCA30798/BL-FT1COAX CBL BNC TO HD-BNC |
2,572 |
|
- |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 60 GHz | Blue | - | -30°C ~ 75°C | - | - |
|
|
CCSHR188A-2.5COAX CBL SMA TO SMA |
3,557 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 30.00" (762.00mm) | RG-188A | 50 Ohms | - | 50 Ohms | - | White | - | - | - | - |
|

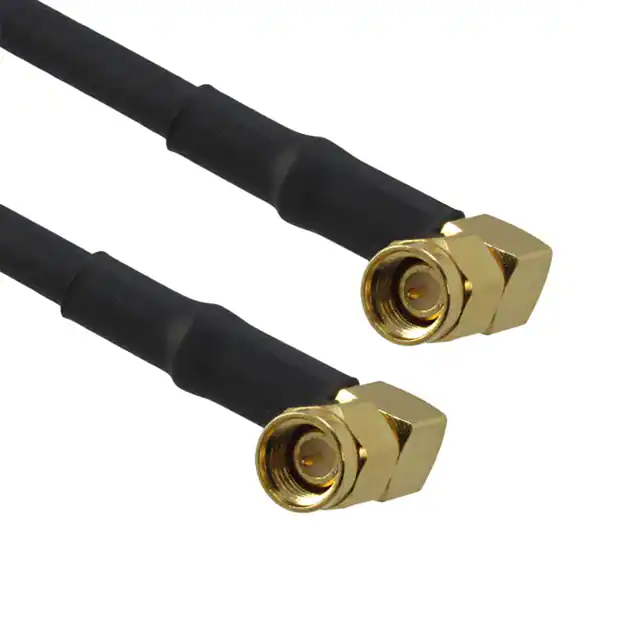

095-902-478M075COAX CBL SMA TO SMA |
1,070 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
095-902-480-012COAX CBL SMA TO SMA |
1,681 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
CA-MMNFCN19COAX CBL N-TYPE TO MMCX |
4,192 |
|
- |
- | Bag | Active | N-Type to MMCX | N-Type Jack | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.000" (482.60mm) | LMR 100 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CA-RTPRSPRCN19COAX CBL RP-SMA TO RP-TNC |
2,918 |
|
- |
- | Bag | Active | RP-SMA to RP-TNC | RP-SMA Plug, Right Angle | Female | Free Hanging (In-Line) | - | RP-TNC Plug | Female | Free Hanging (In-Line) | - | 19.000" (482.60mm) | LMR 100 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CA-SBPRSBPRCN12COAX CBL SMB TO SMB |
1,016 |
|
- |
- | Bag | Active | SMB to SMB | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 100 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CA-RSPFMEPCN19COAX CBL RP-SMA TO FME |
3,325 |
|
- |
- | Bag | Active | RP-SMA to FME | RP-SMA Plug | Female | Free Hanging (In-Line) | - | FME Plug | Male | Free Hanging (In-Line) | - | 19.000" (482.60mm) | LMR 100 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
095-850-158-018COAX CBL HD-BNC TO HD-BNC |
4,576 |
|
Datasheet |
- | Bulk | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
415-0082-MM200COAX CBL SMA TO SMA |
3,907 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | Hand Formable .141 | - | 50 Ohms | 50 Ohms | 18 GHz | Gray | Shielded | - | - | - |
|
|
LCCA30235-FT5COAX CBL SMA TO TNC |
4,808 |
|
- |
- | Bag | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line), Right Angle | - | 60.0" (1.5m) 5.0' | LMR 200 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30799/OR-FT1COAX CBL 1.0/2.3 TO BNC |
3,320 |
|
- |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Orange | - | -20°C ~ 75°C | - | - |
|
|
LCCA30716-1FTCOAX CBL SMA TO CABLE |
1,177 |
|
- |
- | Bag | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 12.00" (304.80mm) | LC085TB | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | - | - | - | - |
|
|
LCCA30716-3INCOAX CBL SMA TO CABLE |
2,923 |
|
- |
- | Bag | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 3.000" (76.20mm) | LC085TB | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | - | - | - | - |
|
|
LCCA30716-6INCOAX CBL SMA TO CABLE |
2,085 |
|
- |
- | Bag | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 6.000" (152.40mm) | LC085TB | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | - | - | - | - |
|
|
LCCA30721-6INCOAX CBL SMA TO CABLE |
4,657 |
|
- |
- | Bag | Active | SMA to Cable | SMA Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 6.000" (152.40mm) | LC085TB | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | - | - | - | - |
|
|
LCCA30799/RD-FT1COAX CBL 1.0/2.3 TO BNC |
4,029 |
|
- |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Red | - | -20°C ~ 75°C | - | - |
|
|
LCCA30715-6INCOAX CBL SMA TO CABLE |
1,177 |
|
- |
- | Bag | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 6.000" (152.40mm) | LC085TB | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | - | - | - | - |
|
|
CA-AM1RTPA002COAX CBL RP-TNC TO NMO |
4,796 |
|
- |
- | Bag | Active | RP-TNC to NMO | RP-TNC Plug | Female | Free Hanging (In-Line) | - | NMO | Non-Gendered | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 195 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
LCCA30799/BR-FT1COAX CBL 1.0/2.3 TO BNC |
3,451 |
|
- |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Brown | - | -20°C ~ 75°C | - | - |
